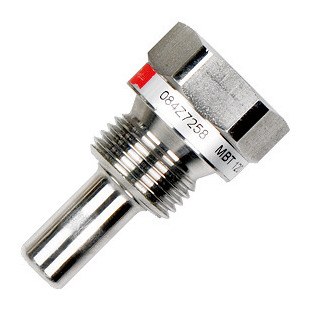

Danfoss MBT 120 sensor pocket (thermowell), 60 mm insertion, G 1/2 connection, AISI 316 Ti
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 120 sensor pocket (thermowell), code 084Z2439 (type designation MBT 120-630-60-3). Protects an inserted MBT temperature sensor from process pressure and flow and allows removal of the sensor without opening the process. AISI 316 Ti protection tube, 11 mm diameter; insertion length 60 mm; G 1/2 male process connection (ISO 228-1-A). Service temperature -50 to +200 C (-58 to +392 F). Used with MBT 3560, MBT 5560. CE marked.
Technical Specifications
- Type
- MBT 120 sensor pocket (thermowell)
- Type designation
- MBT 120-630-60-3
- Code number
- 084Z2439
- Insertion length
- 60 mm
- Process connection
- G 1/2 (ISO 228-1-A)
- Protection tube
- AISI 316 Ti, 11 mm diameter
- Service temperature
- -50 to +200 C (-58 to +392 F)
- Used for
- MBT 3560, MBT 5560
- Packing quantity
- 20 pc
- Net weight
- 0.094 kg
- Approvals
- CE
- EAN
- 5702428972918
- Product group
- Accessories, sensors
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Insertion length [in]
- 2.36 in
- Insertion length [mm]
- 60 mm
- Process connection Male/Female
- Male
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.433 in
- Protection tube diameter [mm]
- 11 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- UL mark
- No
- Used for product
- MBT 3560, MBT 5560
Standards & Compliance
- Size / Series
- 60 mm insertion
- Material
- AISI 316 Ti
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- HS Code
- 9025.90
Compatibility & Fitment
MBT 120 thermowell. Confirm insertion length (60 mm), process thread (G 1/2) and bore suit the host sensor (MBT 3560, MBT 5560) and mounting boss.
