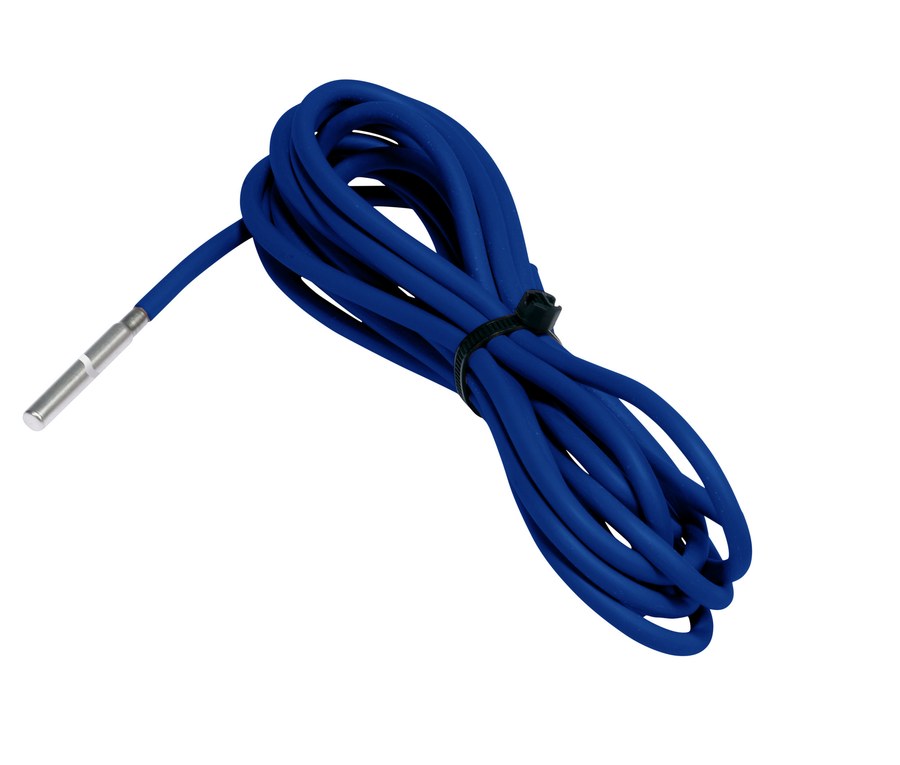

Danfoss MBT 153 flexible cable temperature sensor, Pt 100 100 ohm, 10 m cable, 3-wire (code 084Z2312)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 153 flexible cable temperature sensor, code 084Z2312 (type designation MBT 153-B101-1000). Cable-style RTD with an AISI 305 stainless-steel measuring tip (6 mm diameter) and an integral cable; designed to be fitted into an MBT 120 sensor pocket so the element can be exchanged without draining the system. Standardized Pt 100 platinum element (100 ohm at 0 C), Class B tolerance per EN 60751, 3-wire connection. Cable length 10 m. Measuring range -50 to +200 C (-58 to +392 F). Resistance (ohm) output. IP68 sealing per IEC 60529. CE marked.
Specifications
- Part number
- 084Z2312
- HS code
- 9025.19
- Material
- AISI 305 stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP68
- Standard size
- 10 m cable
Compatibility
MBT 153 cable sensor. Fit into an MBT 120 sensor pocket for exchangeable service. Confirm cable length (10 m), element (Pt 100 100 ohm) and 3-wire wiring match the controller input.
Standards
Approvals
