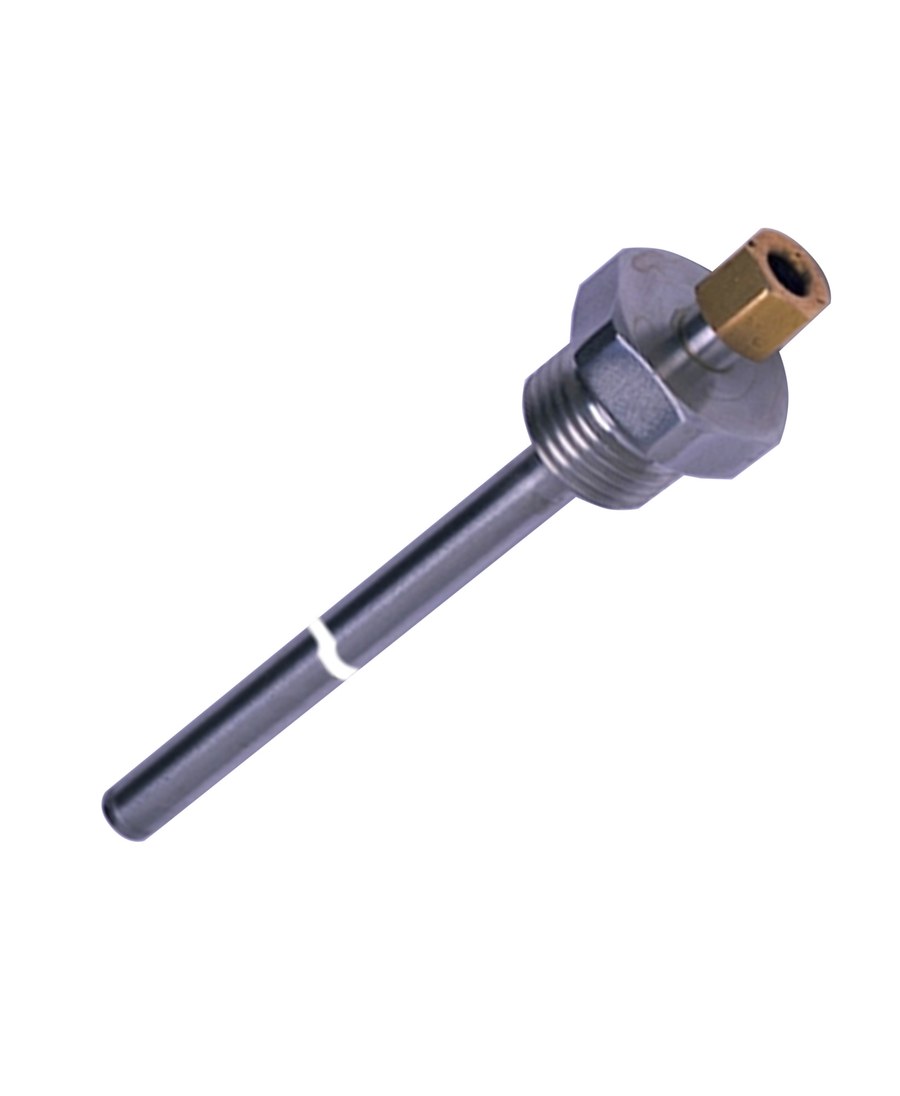

Danfoss MBT 120 sensor pocket (thermowell), 125 mm insertion, G 3/8 connection, AISI 316 Ti
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 120 sensor pocket, code 084Z2325 (type designation MBT 120-210-125-2). Stainless-steel thermowell that holds an MBT 153 cable temperature sensor, allowing the sensor to be removed and refitted without draining the system. AISI 316 Ti protection tube, 6 mm diameter; G 3/8 male (ISO 228-1-A) process connection; insertion length 125 mm. Rated for medium temperatures -50 to +200 C (-58 to +392 F). CE marked.
Technical Specifications
- Type
- MBT 120 (sensor pocket / thermowell)
- Type designation
- MBT 120-210-125-2
- Code number
- 084Z2325
- Function
- pocket for MBT 153 cable temperature sensor
- Insertion length
- 125 mm
- Process connection
- G 3/8 male (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 6 mm diameter
- Temperature range
- -50 to +200 C (-58 to +392 F)
- Packing quantity
- 20 pc
- Net weight
- 0.089 kg
- Approvals
- CE
- EAN
- 5702428902014
- Product group
- Accessories, sensors
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Insertion length [in]
- 4.92 in
- Insertion length [mm]
- 125 mm
- Insertion type
- Fixed
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 Ti
- Process connection size
- 3/8
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- UL mark
- No
- Used for product
- MBT 153
Standards & Compliance
- Size / Series
- 125 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- HS Code
- 9025.90
Compatibility & Fitment
MBT 120 sensor pocket for MBT 153 cable sensors. Confirm insertion length (125 mm) and thread (G 3/8) suit the installation and that the paired MBT 153 measuring tip (6 mm) fits the pocket bore.
Product Documentation
More from Danfoss
Danfoss

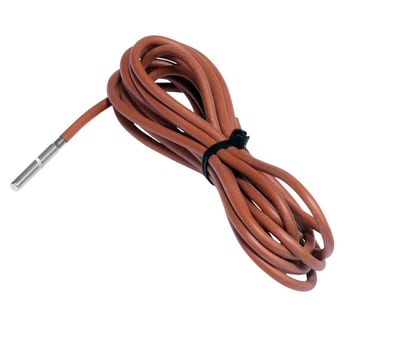

Danfoss MBT 153 cable temperature sensor, Pt 100, 8.5 m silicone cable, Class A, 4-Wire
