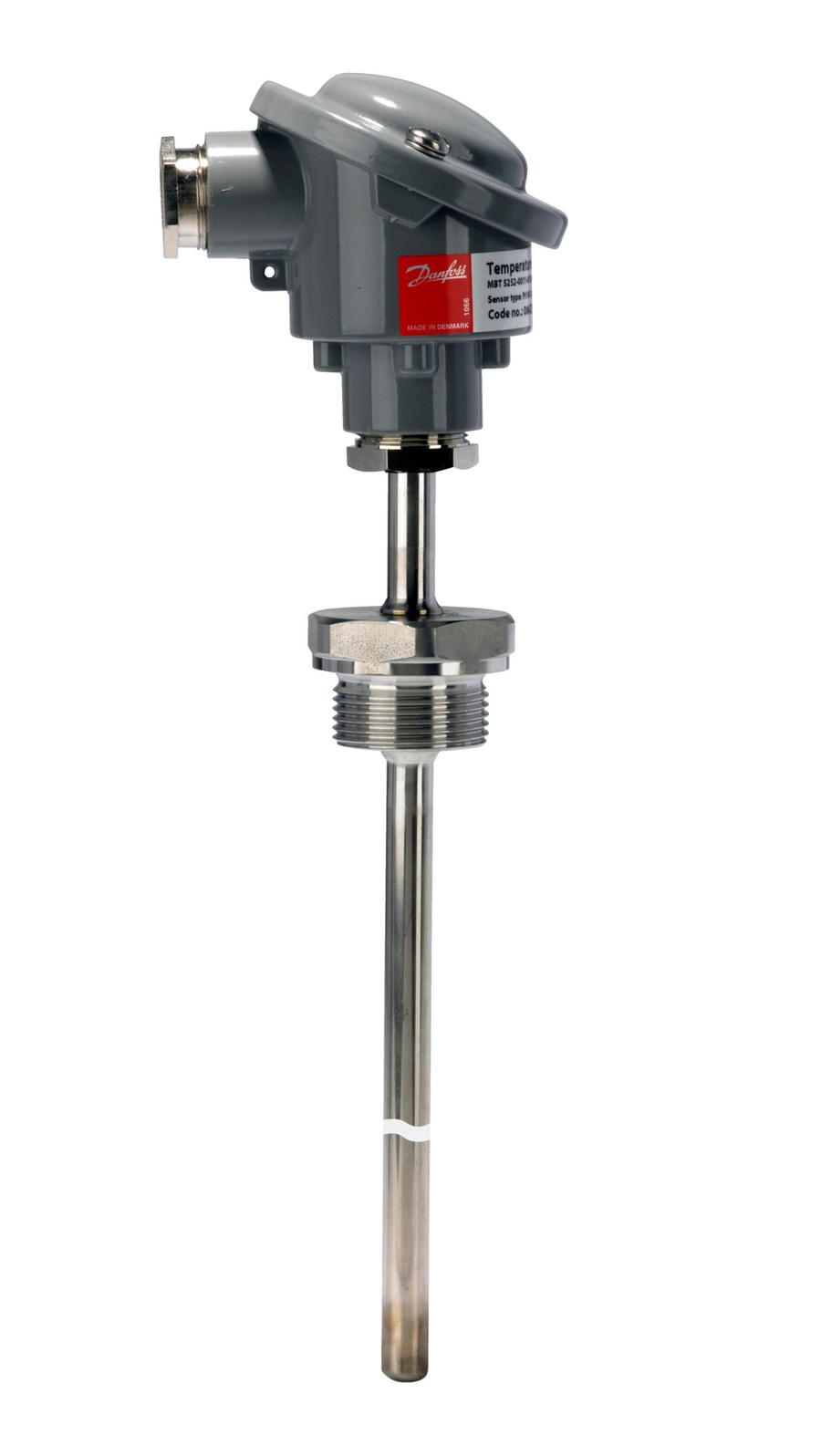

Danfoss MBT 5252 temperature transmitter, Pt 100, 380 mm insertion, G 1/2, 4-20 mA output (code 084Z2338)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5252 insertion temperature transmitter, code 084Z2338 (type designation MBT 5252-0011-0380-0200-G110). Integrated Pt 100 sensor and 2-wire loop-powered transmitter delivering a 4-20 mA output proportional to the measuring range. Exchangeable insert, AISI 316 Ti 10 mm tube, Type B head Pg 16. Sensing element Pt 100 platinum resistance (100 ohm at 0 C), Class A per EN 60751. Insertion length 380 mm; G 1/2 male (ISO 228-1-A) process connection. Measuring range -50 to +200 C (-58 to +392 F); 4-20 mA (2-wire, loop-powered) output. Supply voltage 8-35 V DC. IP65 enclosure per IEC 60529. CE marked.
Specifications
- Part number
- 084Z2338
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C
- IP rating
- IP65
- Standard size
- 380 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 5252 transmitter (4-20 mA). Confirm the measuring range matches the receiving controller/PLC scaling and that an 8-35 V DC loop supply is available. Insertion 380 mm, G 1/2 thread, Pt 100 Class A.
Standards
Approvals
