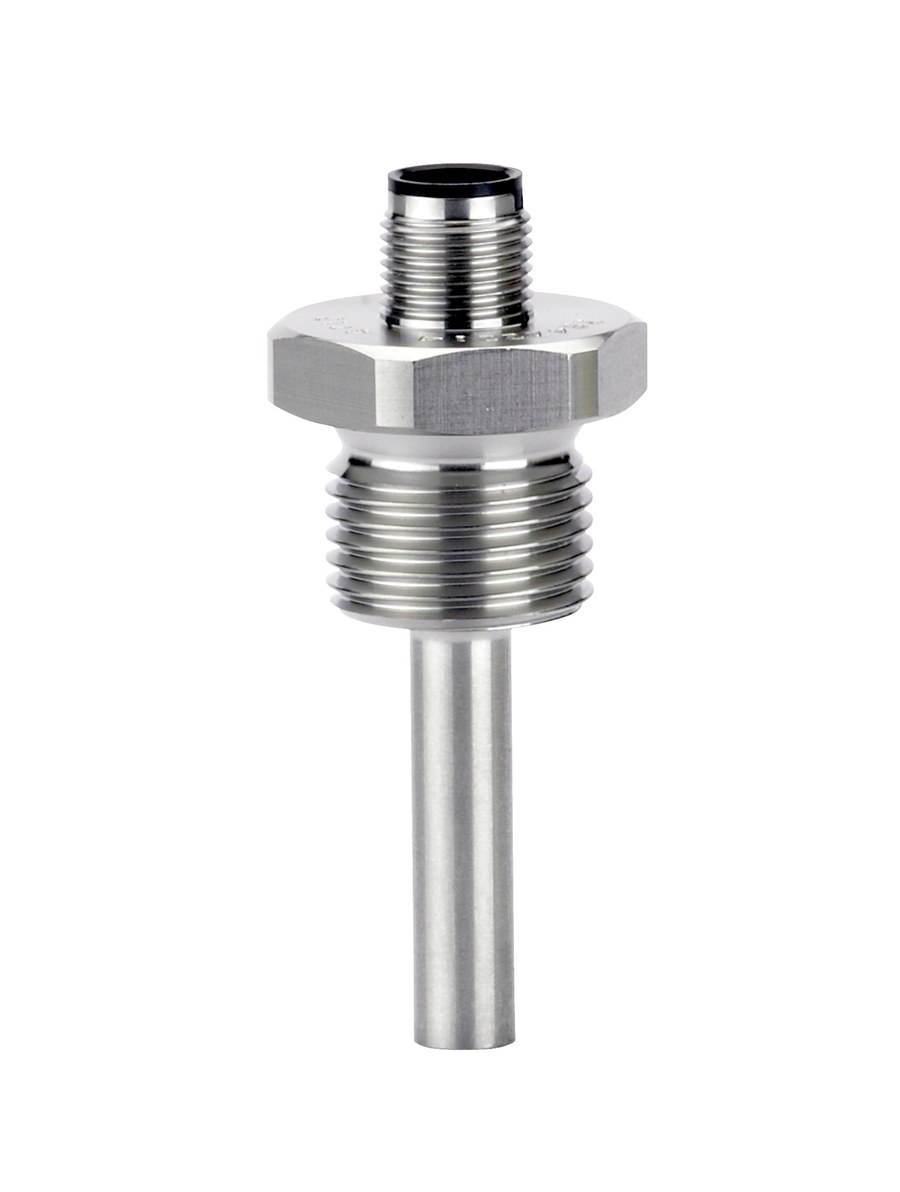

Danfoss MBT 3270 temperature sensor, Pt 100, 20 mm insertion, M 8X1.25, M12X1 4-Pin
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 insertion temperature sensor, code 084Z2347 (type designation MBT 3270-00002-020-L0H20-000). Miniature insertion RTD, AISI 303, 6 mm stem, M 8x1.25 process thread, M12x1 4-pin connector, 20 mm insertion. Sensing element Pt 100 platinum resistance (100 ohm at 0 C), Class B per EN 60751. Insertion length 20 mm; M 8x1.25 male process connection. Measuring range -50 to +200 C (-58 to +392 F); Ohm (resistance) output. IP67 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 3270 (insertion temperature sensor)
- Type designation
- MBT 3270-00002-020-L0H20-000
- Code number
- 084Z2347
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Insertion length
- 20 mm
- Process connection
- M 8x1.25 male
- Protection tube
- AISI 303 stainless steel, 6 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- M12x1, 4-pin (IEC 61076-2-101)
- Enclosure rating
- IP67 per IEC 60529
- Packing quantity
- 40 pc
- Net weight
- 0.018 kg
- Approvals
- CE
- EAN
- 5702428920124
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 303
- Connection type
- M
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 4 pin
- Electrical connection standard
- IEC 61076-2-101
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 0.787 in
- Insertion length [mm]
- 20 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 8x1.25
- Process connection type
- M
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- Protection tube material
- AISI 303
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 4 pc
Standards & Compliance
- Size / Series
- 20 mm insertion
- Material
- AISI 303 stainless steel
- Thread Standard
- ISO 965
- Temperature Range
- -50 to +200 C
- IP Rating
- IP67
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 miniature sensor. M 8x1.25 thread, M12x1 4-pin connector, Pt 100 Class B, 20 mm insertion. Region availability may vary on the Danfoss store.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBT 5270 temperature sensor, Pt 100, 20 mm insertion, M 8X1.25, M12X1 4-Pin
084Z2348
Danfoss
Danfoss MBT 5250 temperature sensor, Pt 100, 50 mm insertion, M 18X1.5, angular Pg 9 connector
084Z2349
Danfoss
Danfoss MBT 5116 high-temperature sensor, Pt 100, 75 mm insertion, G 3/4, -50 to +600 C
084Z2351
Danfoss
Danfoss AKS 21 A temperature sensor, Pt 1000, 7 m cable, -60 to +200 C
084Z2352
Danfoss
Danfoss MBT 5252 temperature sensor, Pt 100, 75 mm insertion, M 33X2, Type B head
084Z2354
Danfoss
Danfoss MBT 3270 temperature sensor, Pt 100, 50 mm insertion, M 14X1.5, AMP Junior Power Timer
084Z2357
Danfoss
Danfoss MBT 5310 temperature sensor, Pt 100, 213-225 mm adjustable insertion, G 1/2, angular connector
084Z2358
Danfoss

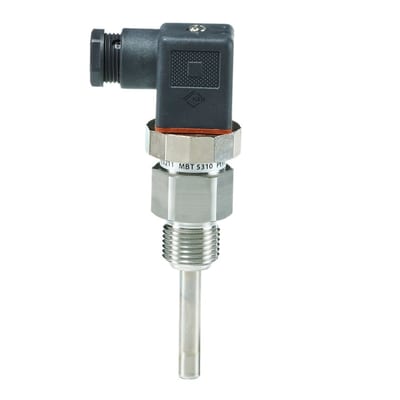

Danfoss MBT 5310 temperature sensor, Pt 100, 183-195 mm adjustable insertion, G 1/2, angular connector
