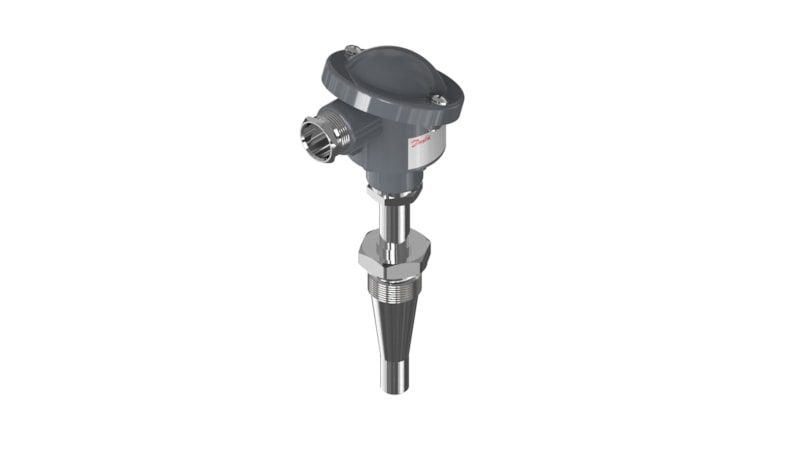

Danfoss MBT 5116 high-temperature sensor, Pt 100, 75 mm insertion, G 3/4, -50 to +600 C
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5116 insertion temperature sensor, code 084Z2351 (type designation MBT 5116-B001-075-10-0000). Slim-line high-temperature insertion sensor with exchangeable Pt 100 element, extended measuring range to +600 C. Neck extension 50 mm; stepped AISI 316 Ti protection tube 14-24 mm; Type B head Pg 16. Sensing element Pt 100 platinum resistance (100 ohm at 0 C), Class B per EN 60751. Insertion length 75 mm; G 3/4 male (ISO 228-1-A) process connection. Measuring range -50 to +600 C (-58 to +1112 F); Ohm (resistance) output. IP65 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 5116 (insertion temperature sensor)
- Type designation
- MBT 5116-B001-075-10-0000
- Code number
- 084Z2351
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Insertion length
- 75 mm
- Process connection
- G 3/4 male (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 14-24 mm diameter
- Measuring range
- -50 to +600 C (-58 to +1112 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Type B connection head, Pg 16
- Enclosure rating
- IP65 per IEC 60529
- Packing quantity
- 10 pc
- Net weight
- 0.544 kg
- Approvals
- CE
- EAN
- 5702428915694
- Product group
- Sensors
- Ambient temperature max. [°C]
- 90 °C
- Ambient temperature max. [°F]
- 194 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- Pg 16
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Extension length [in]
- 1.97 in
- Extension length [mm]
- 50 mm
- In scope of WEEE
- Yes
- Insertion length [in]
- 2.95 in
- Insertion length [mm]
- 75 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 600 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 1112 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 3 pc
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 3/4
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in] [max]
- 0.945 in
- Protection tube diameter [in] [min]
- 0.551 in
- Protection tube diameter [mm] [max]
- 24 mm
- Protection tube diameter [mm] [min]
- 14 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Temperature range [°C] [max]
- 600 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 1112 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 75 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +600 C
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5116 high-temperature sensor (-50 to +600 C). Exchangeable Pt 100 insert. G 3/4 thread, Type B head Pg 16, 75 mm insertion, 50 mm neck extension.
