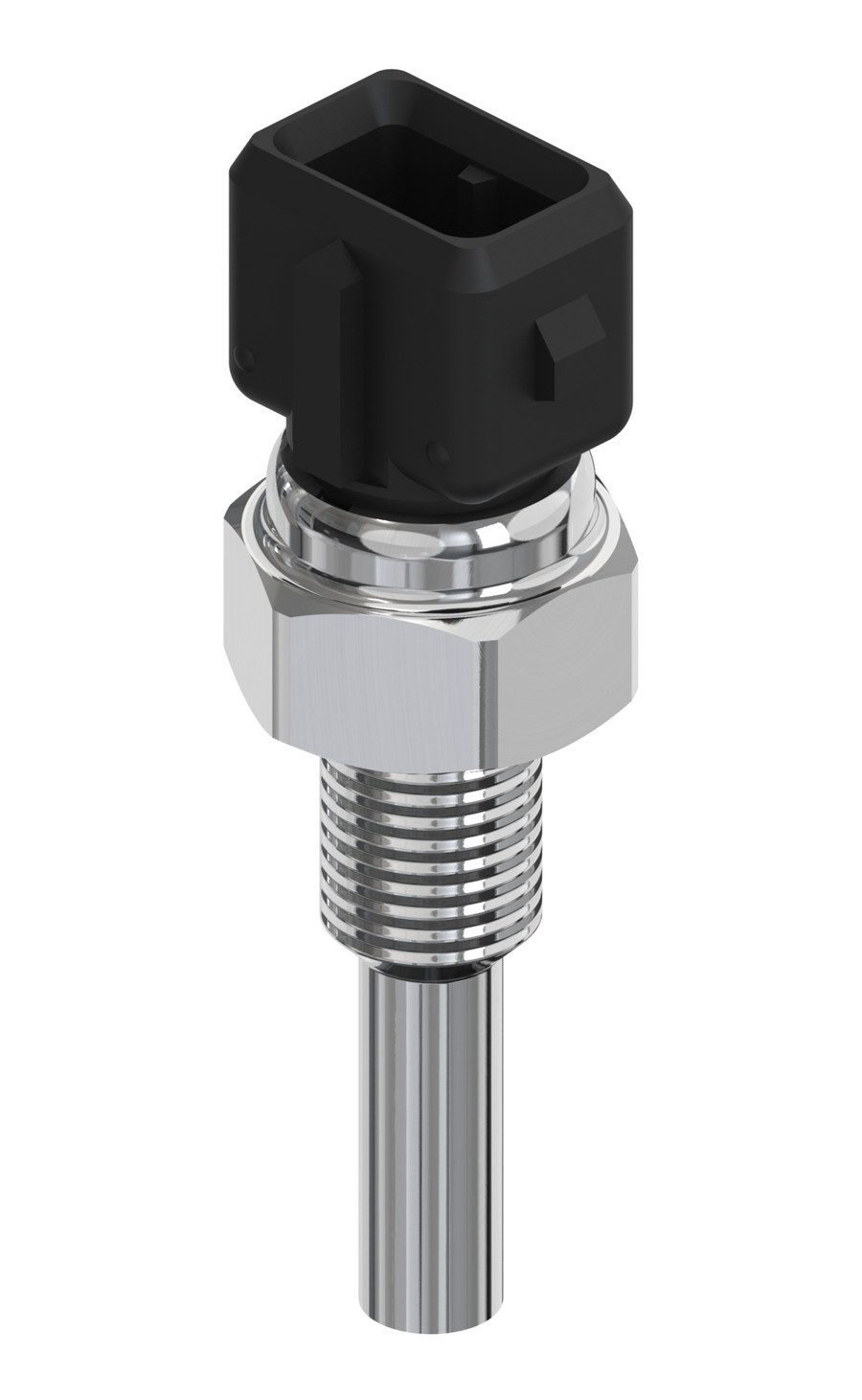

Danfoss MBT 3270 temperature sensor, Pt 100, 50 mm insertion, M 14X1.5, AMP Junior Power Timer
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 insertion temperature sensor, code 084Z2357 (type designation MBT 3270-00001-050-B0300-000). Compact insertion RTD, AISI 303, 6 mm stem, M 14x1.5 process thread, AMP Junior Power Timer 2-pin connector, IP67. Sensing element Pt 100 platinum resistance (100 ohm at 0 C), Class B per EN 60751. Insertion length 50 mm; M 14x1.5 male process connection. Measuring range -50 to +150 C (-58 to +302 F); Ohm (resistance) output. IP67 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 3270 (insertion temperature sensor)
- Type designation
- MBT 3270-00001-050-B0300-000
- Code number
- 084Z2357
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Insertion length
- 50 mm
- Process connection
- M 14x1.5 male
- Protection tube
- AISI 303 stainless steel, 6 mm diameter
- Measuring range
- -50 to +150 C (-58 to +302 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- AMP Junior Power Timer, 2-pin
- Enclosure rating
- IP67 per IEC 60529
- Packing quantity
- 40 pc
- Net weight
- 0.048 kg
- Approvals
- CE
- EAN
- 5702428920476
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 303
- Connection type
- M
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 2 pin
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.97 in
- Insertion length [mm]
- 50 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 150 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 302 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection Male/Female
- Male
- Process connection material
- AISI 303
- Process connection size
- 14x1.5
- Process connection type
- M
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- Protection tube material
- AISI 303
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 50 mm insertion
- Material
- AISI 303 stainless steel
- Thread Standard
- ISO 965
- Temperature Range
- -50 to +150 C
- IP Rating
- IP67
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 compact sensor. M 14x1.5 thread, AMP Junior Power Timer 2-pin, Pt 100 Class B, 50 mm insertion (AISI 303, 6 mm stem — distinct from the brass 4 mm-stem M14x1.5 variant).
