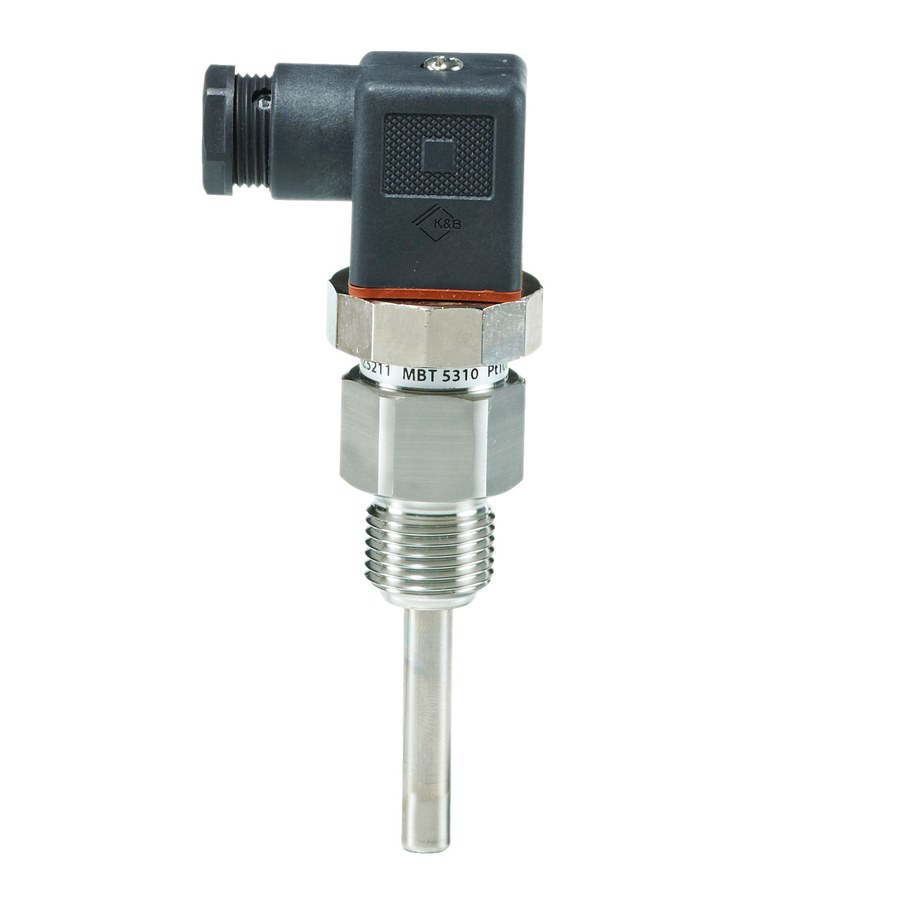

Danfoss MBT 5310 temperature sensor, Pt 100, 183-195 mm adjustable insertion, G 1/2, angular connector (code 084Z2359)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5310 insertion temperature sensor, code 084Z2359 (type designation MBT 5310-00-195-000). Adjustable-insertion RTD, insertion depth set on installation between 183 and 195 mm. AISI 316 Ti, 8 mm protection tube; angular Pg 11 connector. Sensing element Pt 100 platinum resistance (100 ohm at 0 C), Class B per EN 60751. Insertion length 183-195 mm (adjustable); G 1/2 male (ISO 228-1-A) process connection. Measuring range -50 to +200 C (-58 to +392 F); Ohm (resistance) output. IP65 enclosure per IEC 60529. CE marked.
Specifications
- Part number
- 084Z2359
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C
- IP rating
- IP65
- Standard size
- 183-195 mm (adjustable) insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 5310 adjustable-insertion sensor. Set insertion depth (183-195 mm) at the gland. G 1/2 thread, angular connector Pg 11, Pt 100 Class B.
Standards
Approvals
