Danfoss AKS 21 A temperature sensor, Pt 1000, 7 m cable, -60 to +200 C
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS 21 A cable temperature sensor, code 084Z2352 (type designation AKS 21 A). Compact cable temperature sensor for refrigeration and air-conditioning controllers (ADAP-KOOL and general use). Pt 1000 element in a 5.8 mm x 40 mm stainless probe with a 7 m silicone-insulated 2-wire cable. Sensing element Pt 1000 platinum resistance (1000 ohm at 0 C), Class B per EN 60751. Cable length 7 m. Measuring range -60 to +200 C (-76 to +392 F); Ohm (resistance) output. IP67 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- AKS 21 A (cable temperature sensor)
- Type designation
- AKS 21 A
- Code number
- 084Z2352
- Sensor element
- Pt 1000 platinum resistance (1000 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Cable length
- 7 m
- Protection tube
- Stainless steel, 5.8 mm diameter, 40 mm length
- Measuring range
- -60 to +200 C (-76 to +392 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Cable, 2-wire (silicone insulated)
- Enclosure rating
- IP67 per IEC 60529
- Packing quantity
- 20 pc
- Net weight
- 0.235 kg
- Approvals
- CE
- EAN
- 5702428915441
- Product group
- Sensors
- Ambient temperature max. [°C]
- 180 °C
- Ambient temperature max. [°F]
- 356 °F
- Approval
- CE
- Cable length [in]
- 275.59 in
- Cable length [m]
- 7 m
- Cable tempr. range [°C] [max]
- 200 °C
- Cable tempr. range [°C] [min]
- -60 °C
- Cable type
- Silicone
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 2 wire
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -60 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -76 °F
- Protection tube diameter [in]
- 0.23 in
- Protection tube diameter [mm]
- 5.8 mm
- Protection tube length [in]
- 1.58 in
- Protection tube length [mm]
- 40 mm
- Protection tube material
- STAINLEES STEEL
- REACH Candidate List substances
- No
- Sensor elem. resistance [Ohm]
- 1000 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 7 m cable
- Material
- Stainless steel
- Temperature Range
- -60 to +200 C
- IP Rating
- IP67
- HS Code
- 9025.19
Compatibility & Fitment
AKS 21 A cable sensor (Pt 1000, 2-wire). Distinct 084Z code from the AKS 21 catalog entry; confirm 7 m cable length and Pt 1000 element match the controller input.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBT 5252 temperature sensor, Pt 100, 75 mm insertion, M 33X2, Type B head
084Z2354
Danfoss
Danfoss MBT 3270 temperature sensor, Pt 100, 50 mm insertion, M 14X1.5, AMP Junior Power Timer
084Z2357
Danfoss
Danfoss MBT 5310 temperature sensor, Pt 100, 213-225 mm adjustable insertion, G 1/2, angular connector
084Z2358
Danfoss
Danfoss MBT 5310 temperature sensor, Pt 100, 183-195 mm adjustable insertion, G 1/2, angular connector
084Z2359
Danfoss
Danfoss MBT 5252 temperature transmitter, Pt 100, 150 mm insertion, G 3/4, 4-20 mA output
084Z2361
Danfoss
Danfoss MBT 5250 temperature sensor, Pt 100 100 ohm, 100 mm insertion, G 1/4 process connection
084Z2363
Danfoss

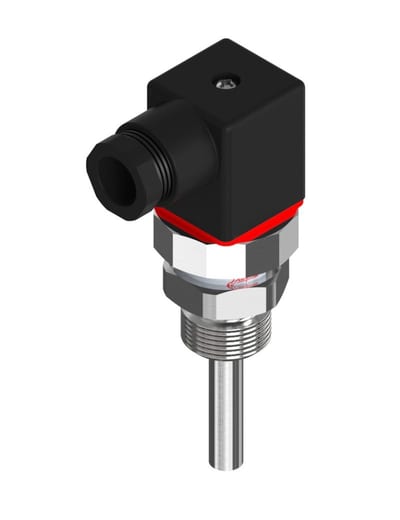

Danfoss MBT 5250 temperature sensor, Pt 100 100 ohm, 40 mm insertion, G 1/2 process connection
