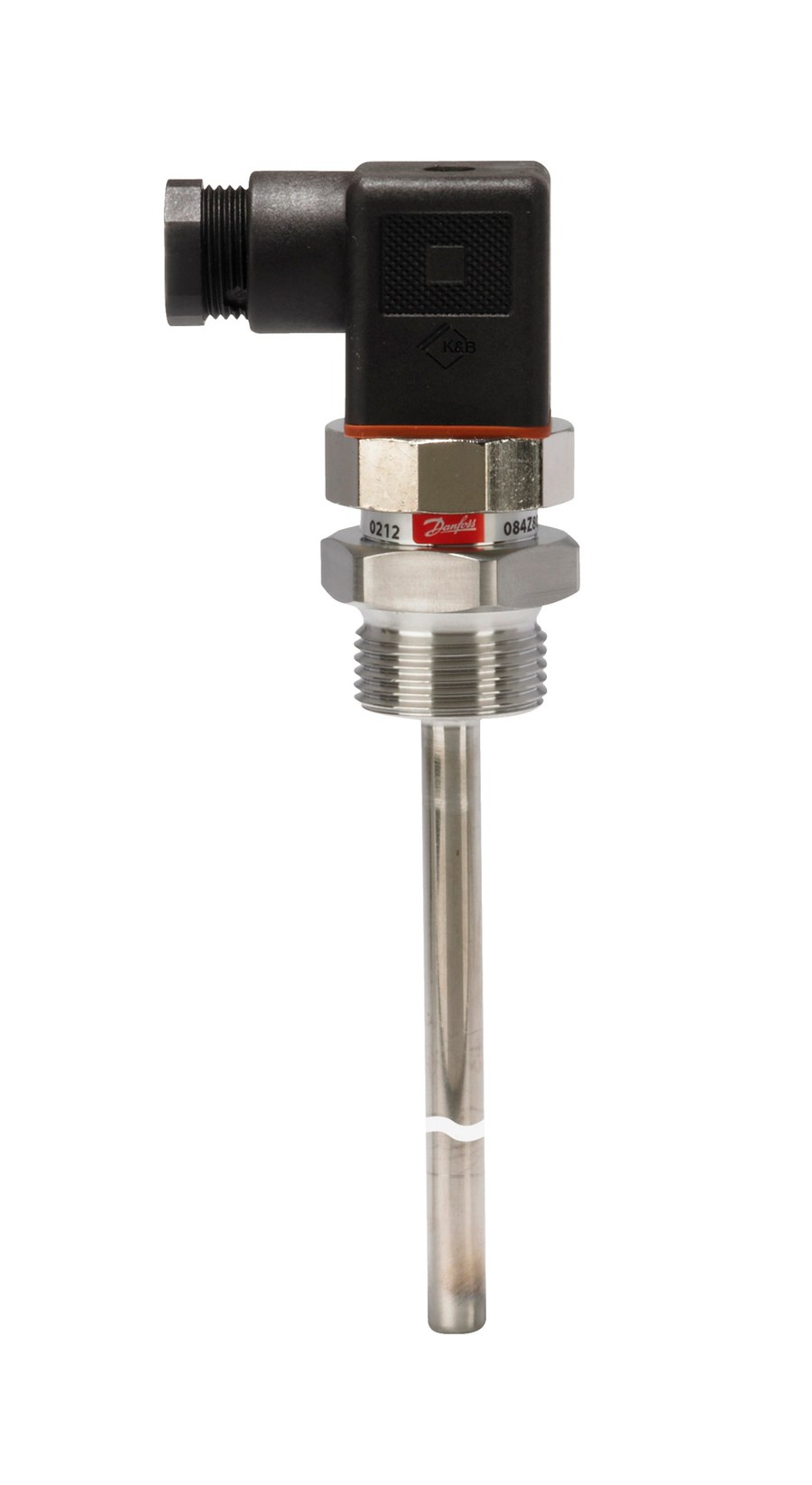

Danfoss MBT 5250 temperature sensor, Pt 100, 50 mm insertion, M 18x1.5, angular Pg 9 connector (code 084Z2349)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5250 insertion temperature sensor, code 084Z2349 (type designation MBT 5250-0000-050-150). Heavy-duty insertion RTD, AISI 316 Ti 8 mm tube, M 18x1.5 process thread, angular Pg 9 connector per EN 175301-803-A. Sensing element Pt 100 platinum resistance (100 ohm at 0 C), Class B per EN 60751. Insertion length 50 mm; M 18x1.5 male process connection. Measuring range -50 to +200 C (-58 to +392 F); Ohm (resistance) output. IP65 enclosure per IEC 60529. CE marked.
Specifications
- Part number
- 084Z2349
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C
- IP rating
- IP65
- Standard size
- 50 mm insertion
- Thread standard
- ISO 965
Compatibility
MBT 5250 heavy-duty sensor. 50 mm insertion, M 18x1.5 thread, angular Pg 9 connector, Pt 100 Class B.
Standards
Approvals
