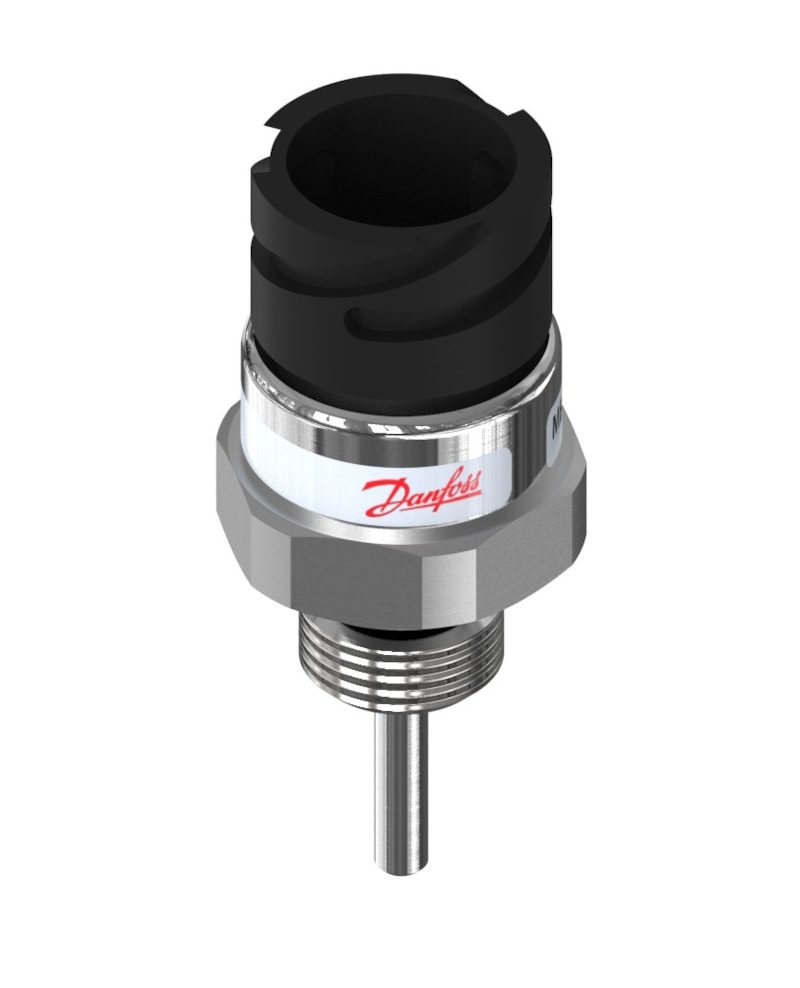

Danfoss MBT 3270 temperature sensor, NTC 2020 ohm, 45 mm insertion, M 16X1.5, bayonet 4-Pin
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 insertion temperature sensor, code 084Z2341 (type designation MBT 3270-66182-045-50G00-000). Compact insertion NTC thermistor sensor (2020 ohm) for refrigeration and air-conditioning, AISI 316 Ti, 4.2 mm stem, bayonet 4-pin connector. Sensing element NTC thermistor, 2020 ohm (tolerance ±1%), ±1% tolerance. Insertion length 45 mm; M 16x1.5 male (ISO 6149-2) process connection. Measuring range -40 to +135 C (-40 to +275 F); Ohm (resistance) output. IP54 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 3270 (insertion temperature sensor)
- Type designation
- MBT 3270-66182-045-50G00-000
- Code number
- 084Z2341
- Sensor element
- NTC thermistor, 2020 ohm (tolerance ±1%)
- Tolerance class
- ±1% tolerance
- Insertion length
- 45 mm
- Process connection
- M 16x1.5 male (ISO 6149-2)
- Protection tube
- AISI 316 Ti stainless steel, 4.2 mm diameter
- Measuring range
- -40 to +135 C (-40 to +275 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Bayonet connector, 4-pin
- Enclosure rating
- IP54 per IEC 60529
- Packing quantity
- 40 pc
- Net weight
- 0.058 kg
- Approvals
- CE
- EAN
- 5702428910323
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection type
- M
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male
- Electrical connection size
- 4 pin
- Electrical connection standard
- DIN 72585-1
- Enclosure rating IP
- IP54
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.77 in
- Insertion length [mm]
- 45 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 135 °C
- Measuring range [°C] [min]
- -40 °C
- Measuring range [°F] [max]
- 275 °F
- Measuring range [°F] [min]
- -40 °F
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 16x1.5
- Process connection standard
- ISO 6149-2
- Process connection type
- M
- Protection tube diameter [in]
- 0.165 in
- Protection tube diameter [mm]
- 4.2 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 2020 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element tolerance
- ± 1%
- Sensor element type
- NTC
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 135 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 275 °F
- Temperature range [°F] [min]
- -40 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 45 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 6149-2
- Temperature Range
- -40 to +135 C
- IP Rating
- IP54
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 NTC variant (2020 ohm, ±1%). NTC characteristic differs from Pt-element sensors — confirm the controller expects an NTC 2020 ohm input. M 16x1.5 thread, bayonet 4-pin, 45 mm insertion.
