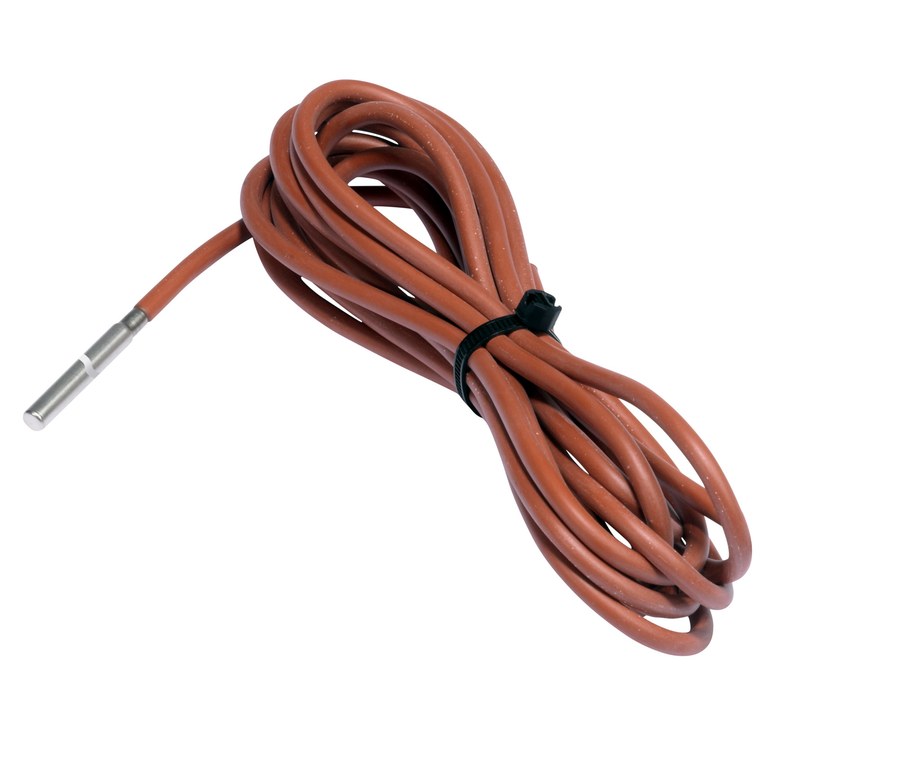

Danfoss MBT 153 cable temperature sensor, Pt 100, 8.5 m silicone cable, Class A, 4-Wire
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 153 cable temperature sensor, code 084Z2334 (type designation MBT 153-2032-0850). Flexible cable RTD with AISI 305, 6 mm protection tube for cooling water, oil and refrigeration circuits in general industry and marine installations. Silicone insulated cable rated -60 to +200 C, 4-wire connection. Sensing element Pt 100 platinum resistance (100 ohm at 0 C), Class A per EN 60751. Cable length 8.5 m. Measuring range -50 to +200 C (-58 to +392 F); Ohm (resistance) output. IP68 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 153 (cable temperature sensor)
- Type designation
- MBT 153-2032-0850
- Code number
- 084Z2334
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance class
- Class A per EN 60751
- Cable length
- 8.5 m
- Protection tube
- AISI 305 stainless steel, 6 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Cable, 4-wire (silicone insulated)
- Enclosure rating
- IP68 per IEC 60529
- Packing quantity
- 10 pc
- Net weight
- 0.268 kg
- Approvals
- CE
- EAN
- 5702428905428
- Product group
- Sensors
- Approval
- CE
- Cable length [in]
- 335 in
- Cable length [m]
- 8.5 m
- Cable tempr. range [°C] [max]
- 200 °C
- Cable tempr. range [°C] [min]
- -60 °C
- Cable tempr. range [°F] [max]
- 392 °F
- Cable tempr. range [°F] [min]
- -76 °F
- Cable type
- Silicone
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 4 wire
- Enclosure rating IP
- IP68
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Insertion type
- Variable
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- Protection tube material
- AISI 305
- REACH Candidate List substances
- No
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class A
- Sensor element type
- Pt
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 4 pc
Standards & Compliance
- Size / Series
- 8.5 m cable
- Material
- AISI 305 stainless steel
- Temperature Range
- -50 to +200 C
- IP Rating
- IP68
- HS Code
- 9025.19
Compatibility & Fitment
MBT 153 cable sensor. Type MBT 153-2032-0850 (silicone cable, Pt 100 Class A, 4-wire). Distinct from the standard-tolerance 8.5 m variant by Class A element and 4-wire silicone construction.
Product Documentation
More from Danfoss
Danfoss

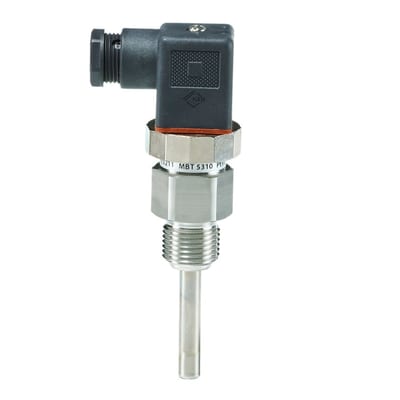

Danfoss MBT 5310 temperature sensor, Pt 100, 323-335 mm adjustable insertion, G 1/2, angular connector
084Z2336
Danfoss
Danfoss MBT 5252 temperature transmitter, Pt 100, 380 mm insertion, G 1/2, 4-20 mA output
084Z2338
Danfoss

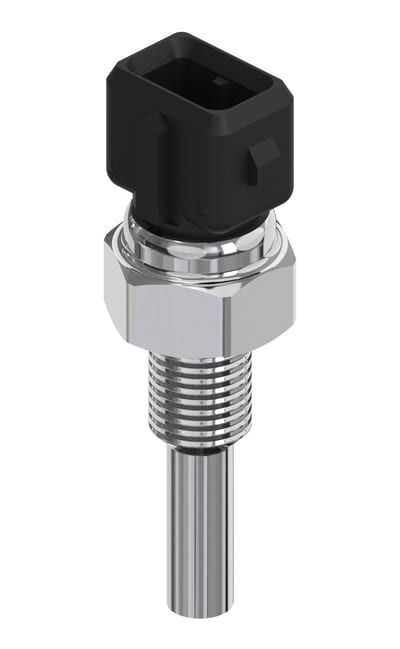

Danfoss MBT 3270 temperature sensor, Pt 100, 50 mm insertion, M 12X1.5, AMP Junior Power Timer
084Z2339
Danfoss
Danfoss MBT 3270 temperature sensor, NTC 2020 ohm, 45 mm insertion, M 16X1.5, bayonet 4-Pin
084Z2341
Danfoss
Danfoss MBT 5250 temperature sensor, Pt 100, 60 mm insertion, G 1/2, angular M16 connector
084Z2342
Danfoss
Danfoss MBT 5250 temperature sensor, Pt 100, 50 mm insertion, G 3/8, angular Pg 9 connector
084Z2344
Danfoss

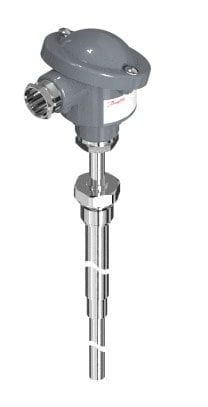

Danfoss MBT 5252 temperature transmitter, Pt 100, 300 mm insertion, G 1/2, 4-20 mA output
084Z2345
Danfoss

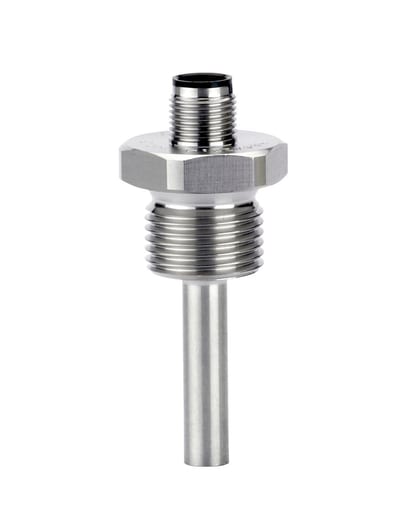

Danfoss MBT 3270 temperature sensor, Pt 100, 50 mm insertion, G 1/2, M12X1 4-Pin
