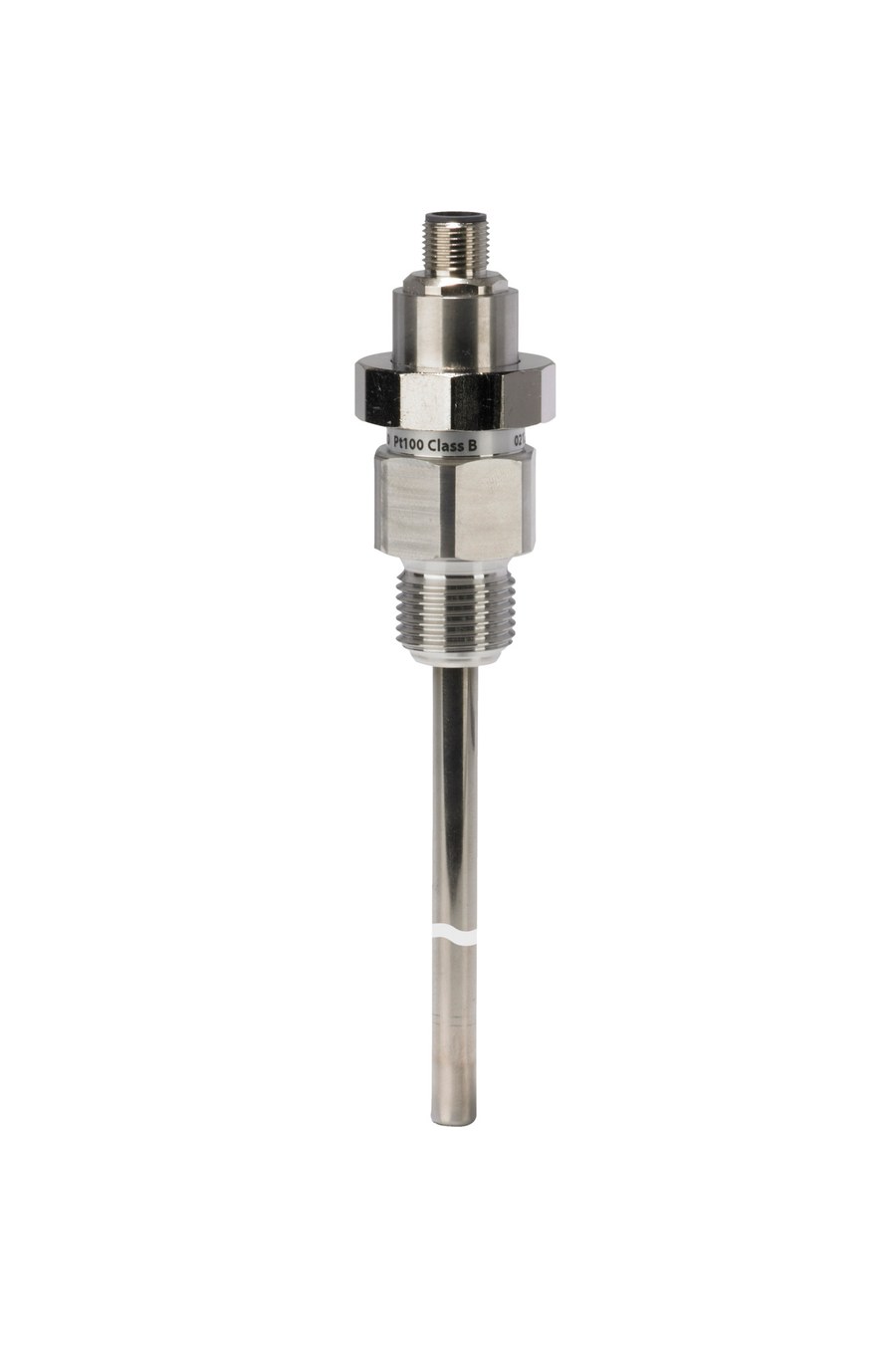

Danfoss MBT 5310 temperature sensor, Pt 1000 1000 ohm, 240 mm, G 1/4 process connection, cable 2-Wire
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5310 insertion temperature sensor with cable connection, code 084Z2301 (type designation MBT 5310-20-240-0902-1425). Insertion RTD with an integral 2-wire connecting cable for cooling water, oil and refrigeration circuits in general industry and marine installations. Standardized Pt 1000 platinum element (1000 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 240 mm; G 1/4 male (ISO 228-1-A) process connection; AISI 316 Ti protection tube, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. Cable 2-wire connection. CE marked.
Technical Specifications
- Type
- MBT 5310 (insertion temperature sensor, cable connection)
- Type designation
- MBT 5310-20-240-0902-1425
- Code number
- 084Z2301
- Sensor element
- Pt 1000 platinum resistance (1000 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Insertion length
- 240 mm
- Process connection
- G 1/4 male (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 8 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Cable, 2-wire
- Packing quantity
- 10 pc
- Net weight
- 0.098 kg
- Approvals
- CE
- EAN
- 5702428902045
- Product group
- Sensors
- Ambient temperature max. [°C]
- 150 °C
- Ambient temperature max. [°F]
- 302 °F
- Approval
- CE
- Cable length [in]
- 63 in
- Cable length [m]
- 1.6 m
- Cable type
- Polyolefine, screened
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Stainless steel
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 2 wire
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 9.4 in
- Insertion length [mm]
- 240 mm
- Insertion type
- Variable
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 2 pc
- Process connection material
- Stainless steel
- Process connection size
- 1/4
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.315 in
- Protection tube diameter [mm]
- 8 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 1000 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 240 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5310 cable sensor. Confirm insertion length (240 mm), process thread (G 1/4), cable 2-wire termination and element (Pt 1000) match the pocket and controller input.
