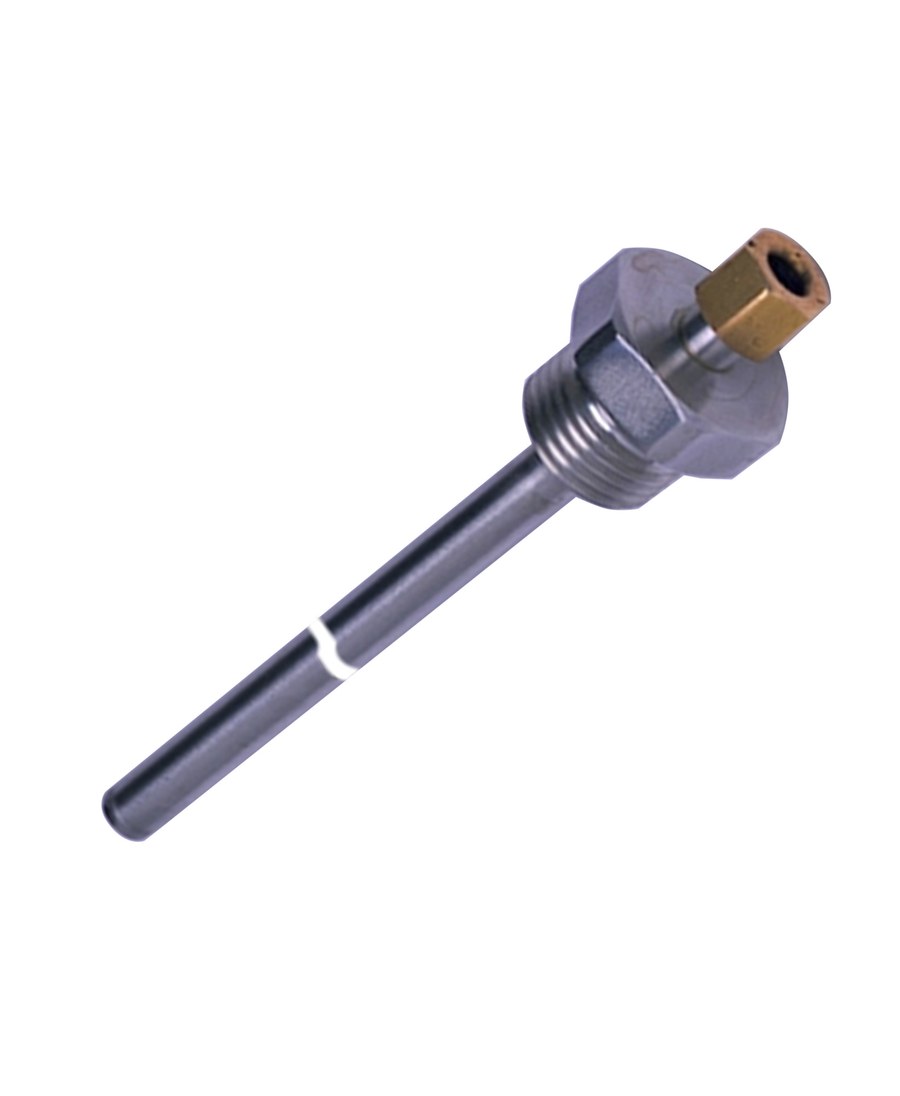

Danfoss MBT 120 sensor pocket (thermowell), 200 mm insertion, M 18x1.5 connection, AISI 316 Ti (code 084Z2324)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 120 sensor pocket, code 084Z2324 (type designation MBT 120-210-200-5). Stainless-steel thermowell that holds an MBT 153 cable temperature sensor, allowing the sensor to be removed and refitted without draining the system. AISI 316 Ti protection tube, 6 mm diameter; M 18x1.5 male (ISO 965) process connection; insertion length 200 mm. Rated for medium temperatures -50 to +200 C (-58 to +392 F). CE marked.
Specifications
- Part number
- 084Z2324
- HS code
- 9025.90
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- Standard size
- 200 mm insertion
- Thread standard
- ISO 965
Compatibility
MBT 120 sensor pocket for MBT 153 cable sensors. Confirm insertion length (200 mm) and thread (M 18x1.5) suit the installation and that the paired MBT 153 measuring tip (6 mm) fits the pocket bore.
