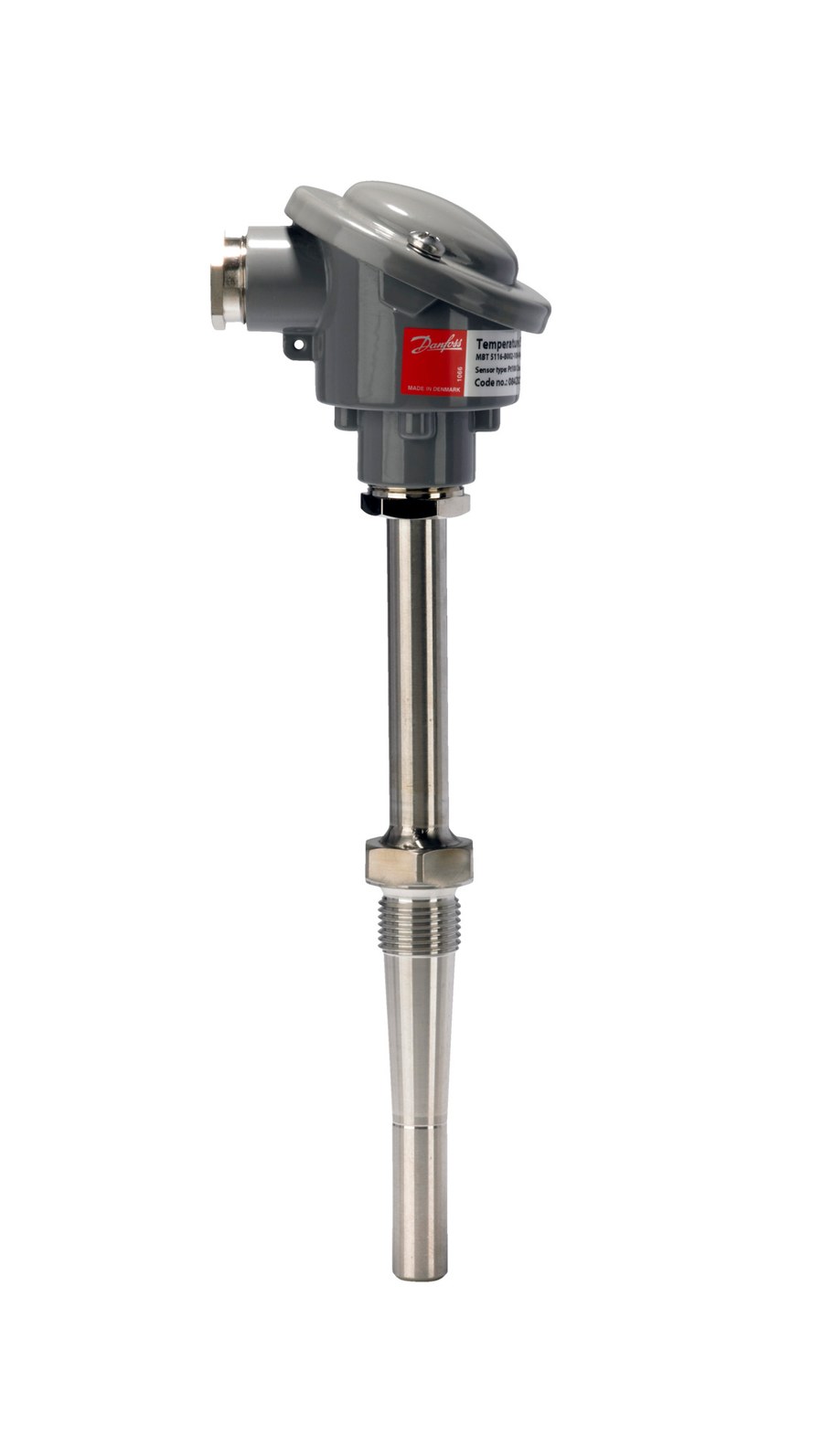

Danfoss MBT 5113 temperature transmitter, Type K thermocouple, 100 mm insertion, G 1/2, 4-20 mA output
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5113 high-temperature transmitter, code 084Z2317 (type designation MBT 5113-B002-100-00-H180). Integrated Type K thermocouple (NiCr-Ni) and 2-wire loop-powered transmitter delivering a 4-20 mA output, for flue gas, engine exhaust and high-temperature process measurement. Thermocouple to Class 2 per EN 60584-2. Insertion length 100 mm; G 1/2 male (ANSI/ASME B1.20.1) process connection; AISI 316 Ti protection tube, 14-24 mm diameter. Measuring range -50 to +800 C (-58 to +1472 F); Type B connection head, Pg 16; IP65 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 5113 (high-temperature thermocouple transmitter)
- Type designation
- MBT 5113-B002-100-00-H180
- Code number
- 084Z2317
- Sensor element
- Type K thermocouple (NiCr-Ni), Class 2 per EN 60584-2
- Insertion length
- 100 mm
- Process connection
- G 1/2 male (ANSI/ASME B1.20.1)
- Protection tube
- AISI 316 Ti stainless steel, 14-24 mm diameter
- Measuring range
- -50 to +800 C (-58 to +1472 F)
- Output signal
- 4-20 mA (2-wire, loop-powered)
- Electrical connection
- Type B connection head, Pg 16
- Enclosure rating
- IP65 per IEC 60529
- Packing quantity
- 8 pc
- Net weight
- 0.566 kg
- Approvals
- CE
- EAN
- 5702428895705
- Product group
- Sensors
- Ambient temperature max. [°C]
- 85 °C
- Ambient temperature max. [°F]
- 185 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- Pg 16
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Extension length [in]
- 3.94 in
- Extension length [mm]
- 100 mm
- In scope of WEEE
- Yes
- Insertion length [in]
- 3.94 in
- Insertion length [mm]
- 100 mm
- Insertion type
- Fixed
- Number of terminals [pcs]
- 2 pc
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 Ti
- Process connection size
- 1/2
- Process connection standard
- ANSI/ASME B1.20.1
- Process connection type
- G
- Protection tube diameter [in] [max]
- 0.945 in
- Protection tube diameter [in] [min]
- 0.551 in
- Protection tube diameter [mm] [max]
- 24 mm
- Protection tube diameter [mm] [min]
- 14 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor element standard
- EN 60584-2
- Sensor element tolerance
- Class 2
- Sensor Insert
- Exchangeable
- Supply voltage [V] DC [max]
- 35 V
- Supply voltage [V] DC [min]
- 8 V
- Temperature range [°C] [max]
- 800 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 1472 °F
- Temperature range [°F] [min]
- -58 °F
- Thermocouple
- 1 X NiCr-Ni, Type K
- Thermocouple design std.
- EN 61515
- Thermocouple tolerance
- EN 60584-2 Class 2
- Transmitter setting range [°C] [max]
- 800 °C
- Transmitter setting range [°C] [min]
- 0 °C
- Transmitter setting range [°F] [max]
- 1472 °F
- Transmitter setting range [°F] [min]
- 32 °F
- Transmitter type
- Galv. isolated
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 100 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ANSI/ASME B1.20.1
- Temperature Range
- -50 to +800 C (-58 to +1472 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5113 thermocouple transmitter (4-20 mA). Confirm the -50 to +800 C range suits the process, the G 1/2 thread and thermowell bore fit the 14-24 mm tube, and a loop supply is available. Type K element.
