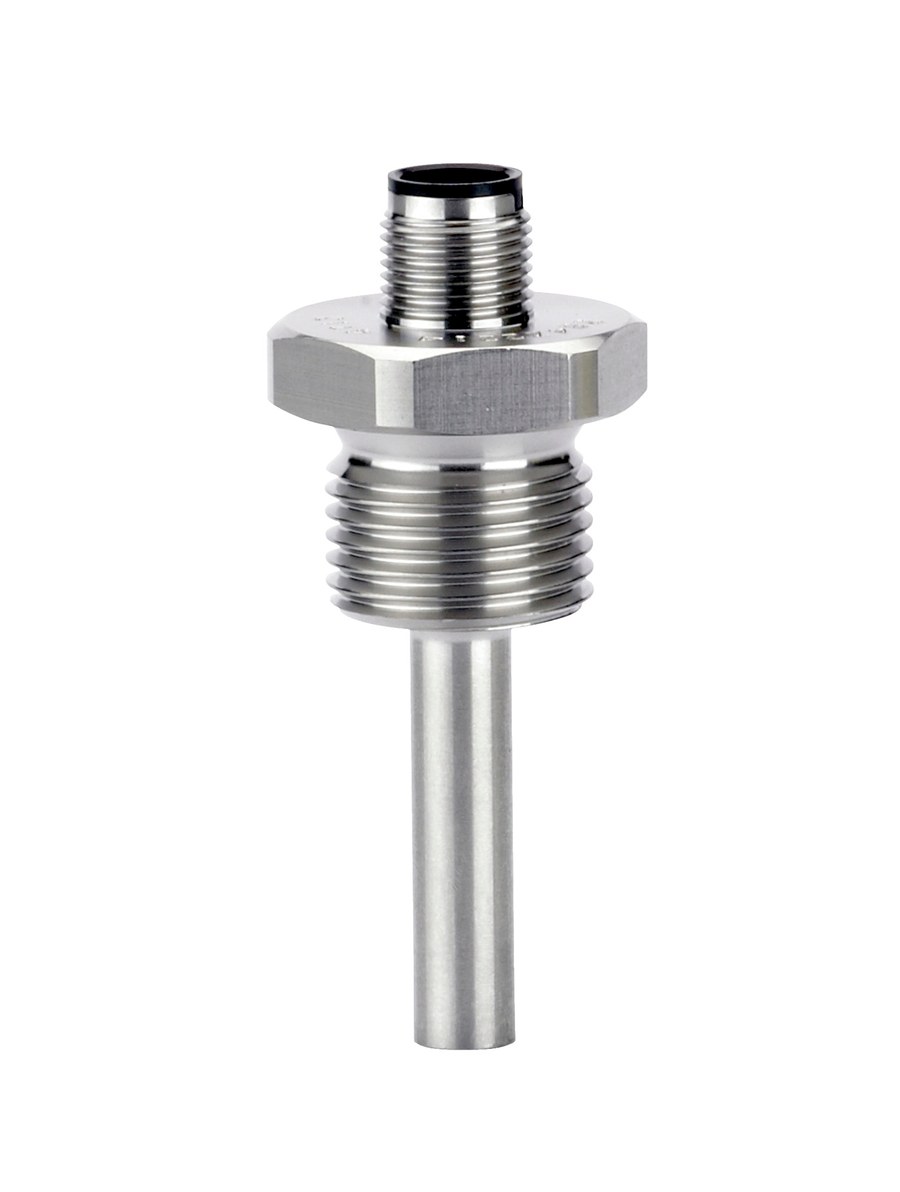

Danfoss MBT 3270 temperature sensor, Pt 100 100 ohm, 30 mm insertion, G 1/4 process connection (code 084Z2319)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 compact insertion temperature sensor, code 084Z2319 (type designation MBT 3270-00601-030-00H20). Small-form RTD for compressors, engines and refrigeration/AC circuits. Pt 100 platinum element (100 ohm at 0 C), Class A tolerance per EN 60751. Insertion length 30 mm; G 1/4 male (ISO 228-1-A) process connection; AISI 303 stainless steel protection tube, 5 mm diameter. Measuring range -50 to +150 C (-58 to +302 F); resistance (ohm) output. M12 x 1 male, 4-pin, IEC 61076-2-101; IP65 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 3270 (compact insertion temperature sensor)
- Type designation
- MBT 3270-00601-030-00H20
- Code number
- 084Z2319
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance class
- Class A per EN 60751
- Insertion length
- 30 mm
- Process connection
- G 1/4 male (ISO 228-1-A)
- Protection tube
- AISI 303 stainless steel, 5 mm diameter
- Measuring range
- -50 to +150 C (-58 to +302 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- M12 x 1 male, 4-pin, IEC 61076-2-101
- Enclosure rating
- IP65 per IEC 60529
- Packing quantity
- 40 pc
- Net weight
- 0.03 kg
- Approvals
- CE
- EAN
- 5702428897938
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 303
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male
- Electrical connection size
- 4 pin
- Electrical connection standard
- IEC 61076-2-101
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.18 in
- Insertion length [mm]
- 30 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 150 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 302 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection Male/Female
- Male
- Process connection material
- AISI 303
- Process connection size
- 1/4
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.197 in
- Protection tube diameter [mm]
- 5 mm
- Protection tube material
- AISI 303
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class A
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 4 pc
Standards & Compliance
- Size / Series
- 30 mm insertion
- Material
- AISI 303 stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +150 C (-58 to +302 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 compact sensor. Confirm insertion length (30 mm), process thread (G 1/4), the M12 x 1 male, 4-pin, IEC 61076-2-101 mating connector, and element (Pt 100 100 ohm) match the installation and controller input.
