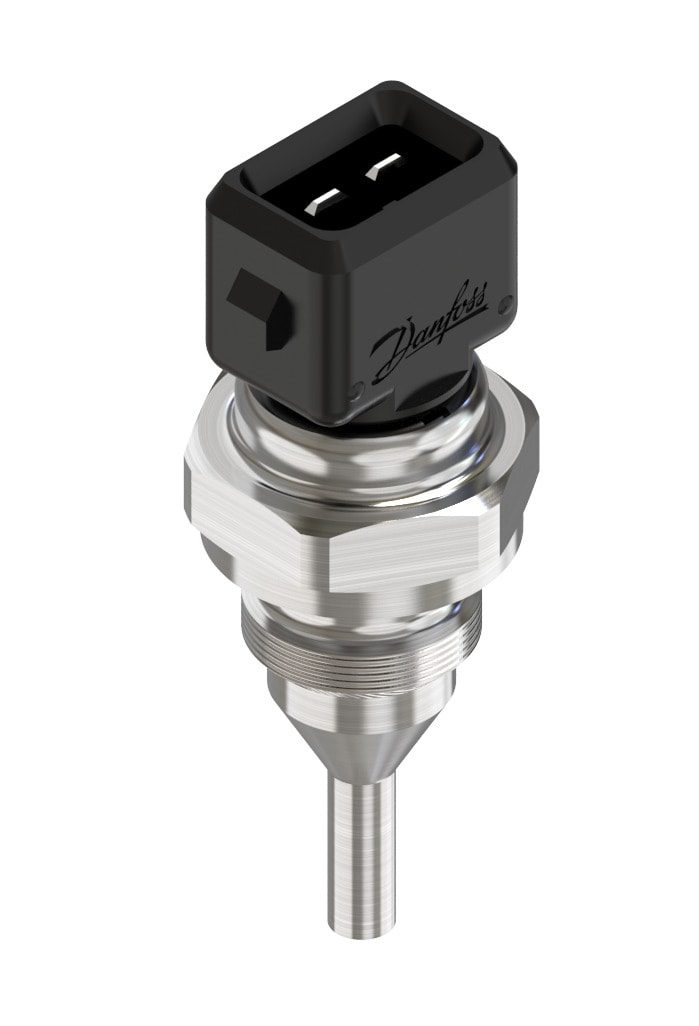

Danfoss MBT 3270 temperature sensor, Pt 100 100 ohm, 28 mm insertion, M 14x1.5 process connection (code 084Z2298)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 3270 compact insertion temperature sensor, code 084Z2298 (type designation MBT 3270-00000-028-B0300-000). Small-form RTD for compressors, engines and refrigeration/AC circuits. Pt 100 platinum element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 28 mm; M 14x1.5 male (ISO 965) process connection; Brass protection tube, 4 mm diameter. Measuring range -50 to +150 C (-58 to +302 F); resistance (ohm) output. AMP Junior Power Timer, 2-pin; IP67 enclosure per IEC 60529. CE marked.
Specifications
- Part number
- 084Z2298
- HS code
- 9025.19
- Material
- Brass
- Temperature range
- -50 to +150 C (-58 to +302 F)
- IP rating
- IP67
- Standard size
- 28 mm insertion
- Thread standard
- ISO 965
Compatibility
MBT 3270 compact sensor. Confirm insertion length (28 mm), process thread (M 14x1.5), the AMP Junior Power Timer, 2-pin mating connector, and element (Pt 100 100 ohm) match the installation and controller input.
Standards
Approvals
