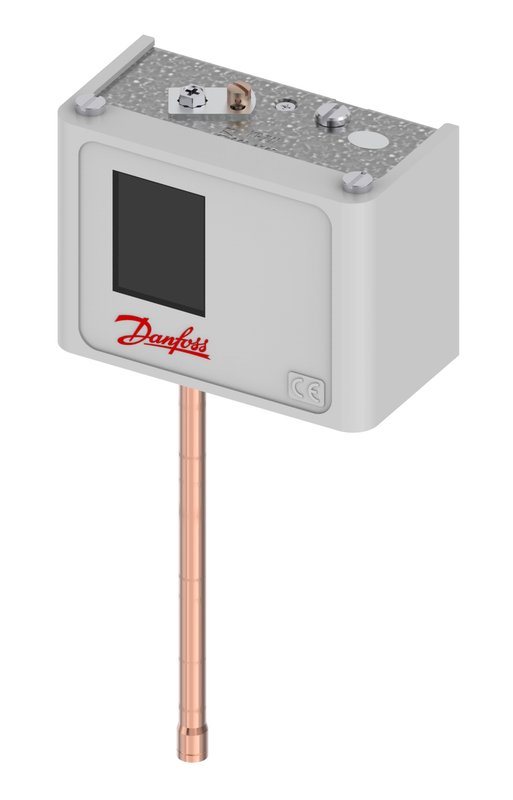

Danfoss KP7W high-pressure switch, 8 to 32 bar, wide 4-10 bar differential, auto reset, SPDT, 6 mm solder ODF
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP7W high-pressure switch, code 060-120266. Regulating range 8 to 32 bar with a wide differential of 4 to 10 bar, automatic reset, SPDT contact. 6 mm solder (ODF, female, EN 1254) pressure connection, IP30 enclosure, max working pressure 35 bar. The KP7W wide-differential HP switch is used for condenser-fan cycling and high-pressure protection. Marine class approvals BV, DNV, GL, LR, RINA, RMRS. Bellows pressure element.
Technical Specifications
- Type
- KP7W high-pressure switch
- Code number
- 060-120266
- Regulating range
- 8 to 32 bar
- Differential range
- 4 to 10 bar (wide)
- Reset
- automatic
- Contact system
- SPDT
- Connection
- 6 mm solder, ODF female (EN 1254)
- Max working pressure
- 35 bar
- Enclosure
- IP30
- Approvals
- BV, DNV, GL, LR, RINA, RMRS
- EAN
- 5702428517126
- Product group
- Switches and thermostats
- Max. test pressure
- 510.0 psig
- Max. test pressure Pe
- 35.0 bar
- Ambient temperature range
- -25 °C to 65 °C
- Refrigerants
- R113; R1233zd(E); R1234yf; R1234yz; R1234ze(E); R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R454C; R455A; R507A; R513A; R515B
- Lubricants compatibility
- Oilfree applications
- Fluid Group
- 1
- PED category
- IV
- UL approval file name
- E31024
- UL approved refrigerants
- R113; R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R507A; R513A; R515B
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1); Cadmium oxide (CAS no.1306-19-0)
- Net weight
- 0.292 kg
- Alarm Signal
- Rising
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Application note
- Not applicable for liquid line
- Burst pressure
- 140.0 bar
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V
- Differential
- 10.00 bar
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- Factory setting
- 1.800 MPa, 261.0 psig
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- 6 mm solder, ODF female (EN 1254)
- Pressure Rating
- max working pressure 35 bar
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
Condenser-fan cycling / high-pressure protection needing a wide on-off differential; automatic reset. Solder-ODF (6 mm) connection variant of KP7W.
