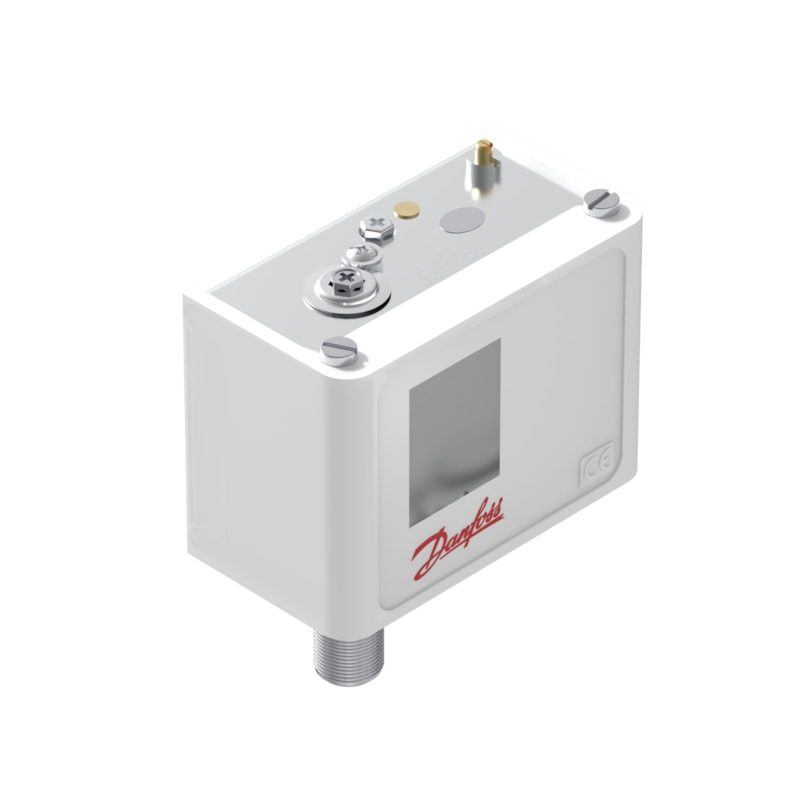

Danfoss KPI34 pressure switch, -0.2 to 3 bar, auto reset, SPDT, G 1/4 in connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KPI34 low-range pressure switch, code 060-130266. Regulating range -0.2 to 3 bar, differential range 0.5 to 1.25 bar, automatic reset, SPDT snap-action contact. G 1/4 in (ISO 228-1, male) pressure connection, IP30 enclosure, max working pressure 18 bar. The KPI low-pressure range with fine differential for suction-side control and low-pressure monitoring in refrigeration/AC. RINA marine approval. Bellows pressure element.
Technical Specifications
- Type
- KPI34 pressure switch
- Code number
- 060-130266
- Regulating range
- -0.2 to 3 bar
- Differential range
- 0.5 to 1.25 bar
- Reset
- automatic
- Contact system
- SPDT
- Contact load
- AC-15 4 A/440 V; AC-1 10 A/440 V; AC-3 6 A/440 V; DC-13 12 W/220 V
- Connection
- G 1/4 in (ISO 228-1, male)
- Max working pressure
- 18 bar
- Enclosure
- IP30
- Approvals
- CE, UL, CCC, EAC, RINA
- EAN
- 5702423217533
- Net weight
- 0.321 Kilogram
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CCC
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Contact function
- SPDT
- Contact rating
- AC15=4 A, 440 V
- Differential [bar] [max]
- 1.25 bar
- Differential [bar] [min]
- 0.5 bar
- Differential [psi] [max]
- 18 psi
- Differential [psi] [min]
- 7 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Out of scope
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 18 bar
- Max. test pressure [psig]
- 261 psig
- Max. Working Pressure [bar]
- 18 bar
- Max. Working Pressure [psig]
- 261 psig
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Regulation range
- 6 inHg - 44 psig
- Regulation range [bar] Pe [max]
- 3 bar
- Regulation range [bar] Pe [min]
- -0.2 bar
- Reset function
- Auto
- UL approval file name
- E31024
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- G 1/4 in (ISO 228-1, male)
- Pressure Rating
- max working pressure 18 bar
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
Suction-side / low-pressure monitoring with fine differential; automatic reset. KPI G 1/4 in connection variant, low -0.2 to 3 bar range.
