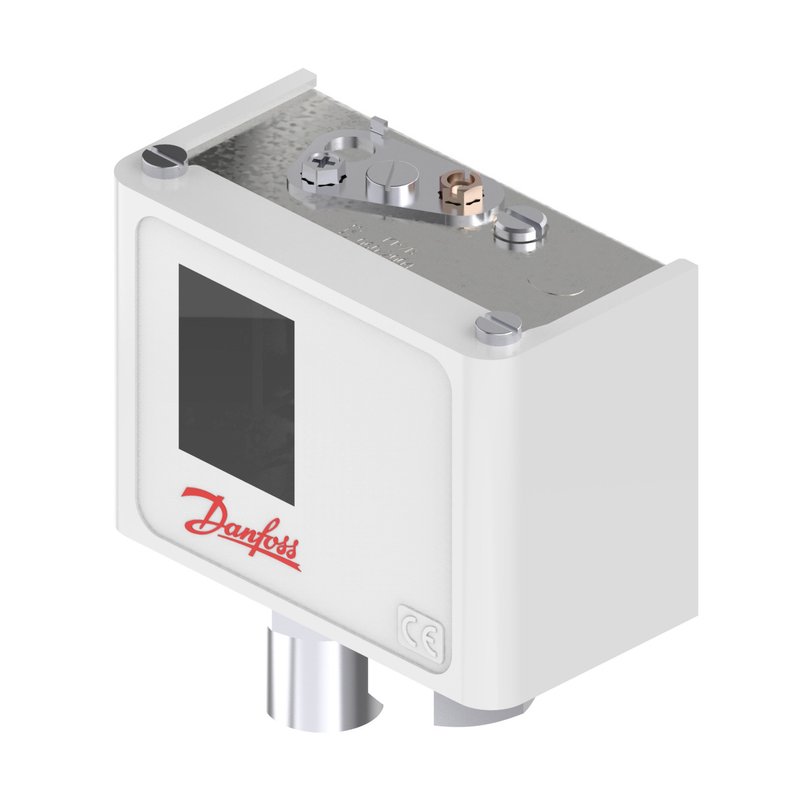

Danfoss KP36 pressure switch, 1–10.5 bar (14.5–150 psig), 0.7–4 bar (10–58 psi) differential, automatic reset, SPDT, NPT 1/4-18, IP30
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP36 pressure switch, code 060-214466. Regulation range 1–10.5 bar (14.5–150 psig) with 0.7–4 bar (10–58 psi), adjustable differential and automatic reset, SPDT snap-action contact system. Pressure connection NPT 1/4-18 (female); swivel cable connector, NPSM 1/2-14 electrical entry; IP30 enclosure. Max working pressure 17 bar (245 psig). Bellows/diaphragm sensing element. EAN 5702423228850.
Technical Specifications
- Type
- KP36 pressure switch
- Code number
- 060-214466
- Regulation range
- 1–10.5 bar (14.5–150 psig)
- Differential
- 0.7–4 bar (10–58 psi), adjustable
- Reset
- automatic
- Contact system
- SPDT
- Contact rating
- 16 A resirigide; 120/240 V ac, 240 V dc 12 W pilot duty
- Pressure connection
- NPT 1/4-18 (female)
- Electrical connection
- swivel cable connector, NPSM 1/2-14
- Max working pressure
- 17 bar (245 psig)
- Enclosure
- IP30
- Ambient temperature
- -40 to +70 °C
- Approvals
- CE, UL, CCC, EAC, EU RoHS
- EAN
- 5702423228850
- Net weight
- 0.344 Kilogram
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CCC
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Differential [bar] [max]
- 4 bar
- Differential [bar] [min]
- 0.7 bar
- Differential [psi] [max]
- 58 psi
- Differential [psi] [min]
- 10 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Female
- Electrical connection size
- NPSM 1/2 - 14
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 22 bar
- Max. test pressure [psig]
- 319 psig
- Max. Working Pressure [bar]
- 17 bar
- Max. Working Pressure [psig]
- 245 psig
- Other RoHS documentation
- Saudi Arabia RoHS
- Pressure connection size
- 1/4-18
- Pressure connection standard
- ANSI/ASME B1.20.1
- Pressure connection type
- NPT
- Pressure Male/Female
- Female
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Regulation range [bar] Pe [max]
- 10.5 bar
- Regulation range [bar] Pe [min]
- 1 bar
- Regulation range [psig] Pe [max]
- 150 psig
- Regulation range [psig] Pe [min]
- 14.5 psig
- Reset function
- Auto
- UL approval file name
- E31024
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- NPT 1/4-18 (female)
- Pressure Rating
- max working pressure 17 bar (245 psig)
- Temperature Range
- -40 to +70 °C
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
Automatic-reset KP36 for refrigeration/AC and general pressure control.
