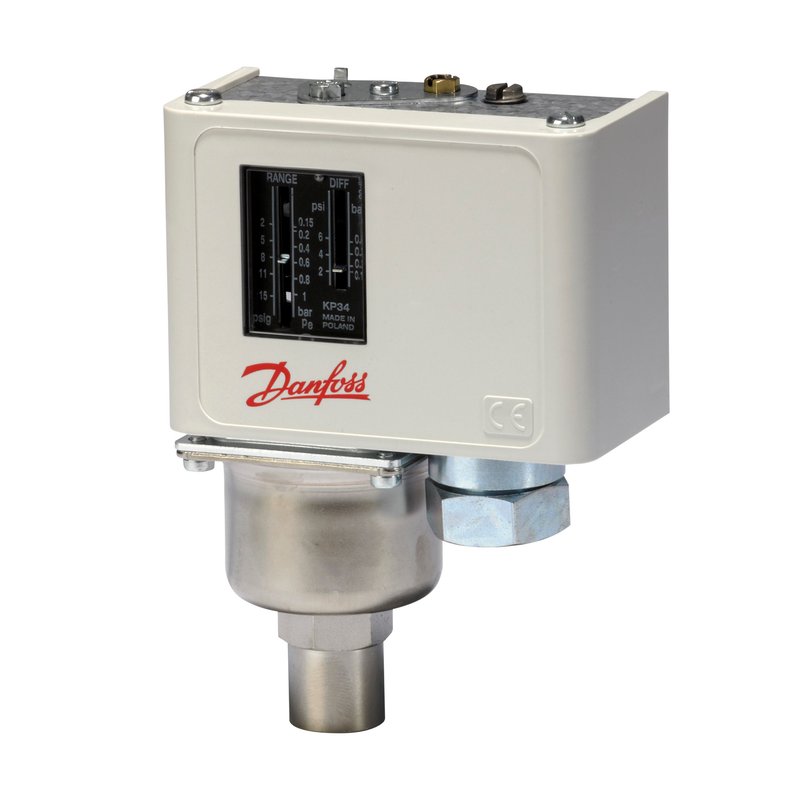

Danfoss KP34 pressure switch, 0.14–1.07 bar (2–15 psig), 0.14–0.42 bar (2–6 psi) differential, automatic reset, SPDT, NPT 1/4-18, IP30
Danfoss · Sensors & Instrumentation · Pressure Switches
Danfoss KP34 pressure switch, code 060-214966. Regulation range 0.14–1.07 bar (2–15 psig) with 0.14–0.42 bar (2–6 psi), adjustable differential and automatic reset, SPDT snap-action contact system. Pressure connection NPT 1/4-18 (female); swivel cable connector, NPSM 1/2-14 electrical entry; IP30 enclosure. Max working pressure 4 bar (58 psig). Bellows/diaphragm sensing element. EAN 5702423228805.
Specifications
- Part number
- 060-214966
- HS code
- 9026.20
- Material
- Steel/zinc-plated housing; bellows pressure element
- Pressure rating
- max working pressure 4 bar (58 psig)
- Temperature range
- -40 to +70 °C
- IP rating
- IP30
- Thread standard
- NPT 1/4-18 (female)
Compatibility
Automatic-reset KP34 for refrigeration/AC and general pressure control.
Standards
- IEC 60529 (enclosure IP rating)
- EU RoHS
Approvals
