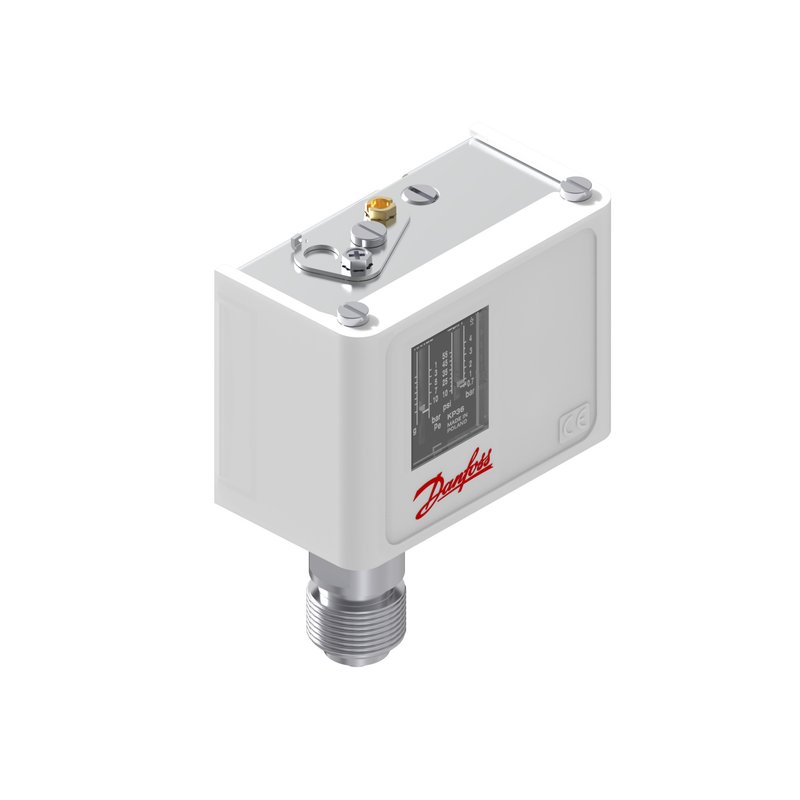

Danfoss KP36 pressure switch, up to 17 bar (245 psig), factory-set 3.5 bar, 0.7 bar (10 psi) differential, automatic reset, SPDT, G 1/2 in, IP30
Danfoss · Sensors & Instrumentation · Pressure Switches
Danfoss KP36 pressure switch, code 060-219366. Regulation range up to 17 bar (245 psig), factory-set 3.5 bar with 0.7 bar (10 psi), fixed differential and automatic reset, SPDT snap-action contact system. Pressure connection G 1/2 in (ISO 228-1, male); rubber cable gland, 6–14 mm electrical entry; IP30 enclosure. Max working pressure 17 bar (245 psig); test 22 bar. Bellows/diaphragm sensing element. EAN 5702428582124.
Specifications
- Part number
- 060-219366
- HS code
- 9026.20
- Material
- Steel housing; bellows pressure element
- Pressure rating
- max working pressure 17 bar (245 psig); test 22 bar
- Temperature range
- -40 to +70 °C
- IP rating
- IP30
- Thread standard
- G 1/2 in (ISO 228-1, male)
Compatibility
Automatic-reset KP36 for refrigeration/AC and general pressure control.
Standards
- IEC 60529 (enclosure IP rating)
- EU RoHS
Approvals
