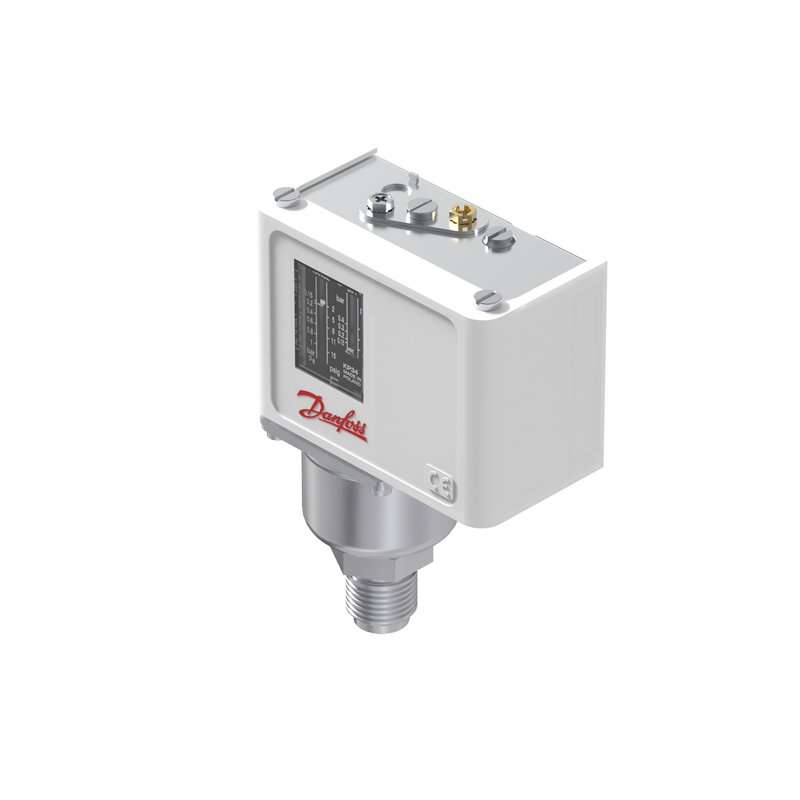

Danfoss KP34 pressure switch, 0–4 bar (0–58 psig), 0.16 bar (2.3 psi) differential, automatic reset, SPDT, G 1/2 in, IP30
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP34 pressure switch, code 060-219166. Regulation range 0–4 bar (0–58 psig) with 0.16 bar (2.3 psi), fixed differential and automatic reset, SPDT snap-action contact system. Pressure connection G 1/2 in (ISO 228-1, male); rubber cable gland, 6–14 mm electrical entry; IP30 enclosure. Max working pressure 4 bar (58 psig); test 6 bar. Bellows/diaphragm sensing element. EAN 5702428582100.
Technical Specifications
- Type
- KP34 pressure switch
- Code number
- 060-219166
- Regulation range
- 0–4 bar (0–58 psig)
- Differential
- 0.16 bar (2.3 psi), fixed
- Reset
- automatic
- Contact system
- SPDT
- Contact rating
- SPDT; 16 A @ 120 V ac, 8 A @ 240 V ac resirigide
- Pressure connection
- G 1/2 in (ISO 228-1, male)
- Electrical connection
- rubber cable gland, 6–14 mm
- Max working pressure
- 4 bar (58 psig); test 6 bar
- Enclosure
- IP30
- Ambient temperature
- -40 to +70 °C
- Approvals
- CE, UL, CCC, EAC, EU RoHS
- EAN
- 5702428582100
- Net weight
- 0.481 Kilogram
- Product group
- Switches and thermostats
- Alarm Signal
- Falling
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CCC
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Differential [bar]
- 0.16 bar
- Differential [psi]
- 2.3 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- Factory setting [bar]
- 0.1 bar
- Factory setting [MPa]
- 0.01 MPa
- Factory setting [psig]
- 1.5 psig
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 6 bar
- Max. test pressure [psig]
- 87 psig
- Max. Working Pressure [bar]
- 4 bar
- Max. Working Pressure [psig]
- 58 psig
- Pressure connection size
- 1/2
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Reset function
- Auto
- UL approval file name
- E31024
- UL mark
- Yes
Standards & Compliance
- Material
- Steel housing; bellows pressure element
- Thread Standard
- G 1/2 in (ISO 228-1, male)
- Pressure Rating
- max working pressure 4 bar (58 psig); test 6 bar
- Temperature Range
- -40 to +70 °C
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
Automatic-reset KP34 for refrigeration/AC and general pressure control.
Product Documentation
More from Danfoss
Danfoss
Danfoss KP36 pressure switch, up to 17 bar (245 psig), factory-set 3.5 bar, 0.7 bar (10 psi) differential, automatic reset, SPDT, G 1/2 in, IP30
060-219366
Danfoss
Danfoss KPS35 pressure switch, 0–8 bar (0–116 psig), 0.4–1.5 bar (6–22 psi) differential, automatic reset, SPDT, G 3/8 in, IP67
060-310066
Danfoss
Danfoss KPS37 pressure switch, 6–18 bar (87–261 psig), 0.85–2.5 bar (12–36 psi) differential, automatic reset, SPDT, G 3/8 in, IP67
060-310166
Danfoss
Danfoss KPS39 pressure switch, 10–35 bar (145–508 psig), 2–6 bar (29–87 psi) differential, automatic reset, SPDT, G 3/8 in, IP67
060-310266
Danfoss
Danfoss KPS33 pressure switch, 0–3.5 bar (0–51 psig), 0.2 bar (3 psi) differential, automatic reset, SPDT, G 3/8 in, IP67
060-310366
Danfoss
Danfoss KPS33 pressure switch, 0–3.5 bar (0–51 psig), 0.2 bar (3 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
060-310466
Danfoss

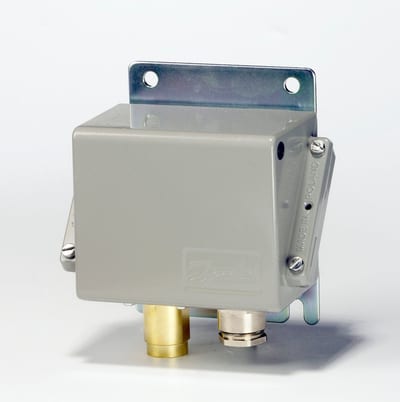

Danfoss KPS35 pressure switch, 0–8 bar (0–116 psig), 0.4–1.5 bar (6–22 psi) differential, automatic reset, SPDT, G 1/4 in, IP67
