Danfoss KPI35 pressure switch, factory-set 4.8 bar, 1.4 bar differential, auto reset, SPDT, G 1/4 in, IP55
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KPI35 pressure switch, code 060-130366. Factory setting 4.8 bar with a fixed 1.4 bar differential, automatic reset, SPDT snap-action contact. G 1/4 in (ISO 228-1, male) pressure connection, IP55 enclosure, max working pressure 18 bar. A preset, sealed IP55 KPI35 for fixed-setpoint low-pressure control in refrigeration/AC. RINA marine approval plus CE, UL, CCC, EAC. Bellows pressure element.
Technical Specifications
- Type
- KPI35 pressure switch
- Code number
- 060-130366
- Setting
- factory-set 4.8 bar (70 psig)
- Differential
- 1.4 bar (fixed)
- Reset
- automatic
- Contact system
- SPDT
- Connection
- G 1/4 in (ISO 228-1, male)
- Max working pressure
- 18 bar
- Enclosure
- IP55
- Approvals
- CE, UL, CCC, EAC, RINA
- EAN
- 5702423215430
- Product group
- Switches and thermostats
- Max. test pressure
- 261.0 psig
- Max. test pressure Pe
- 18.0 bar
- Ambient temperature range
- -40 °C to 65 °C
- UL approval file name
- E31024
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1); Cadmium oxide (CAS no.1306-19-0)
- Net weight
- 0.423 kg
- Alarm Signal
- Rising
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Contact function
- SPDT
- Contact rating
- AC15=4 A, 440 V; AC1=10 A, 440 V; AC3=6 A, 440 V; DC13=12 W, 220 V; LR=36 A, 240 V; LR=48 A, 120 V
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2
- Enclosure rating IP
- IP55
- Factory setting
- 0.480 MPa, 70.0 psig
- In scope of WEEE
- Yes
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- Reset function
- Auto
- EU RoHS compliance
- Out of scope
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- G 1/4 in (ISO 228-1, male)
- Pressure Rating
- max working pressure 18 bar
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP55
- HS Code
- 9026.20
Compatibility & Fitment
Fixed-setpoint (4.8 bar) low-pressure control; automatic reset. Preset, sealed IP55 variant of KPI35.
Product Documentation
More from Danfoss
Danfoss
Danfoss KP36 pressure switch, 1–10.5 bar (14.5–150 psig), 0.7–4 bar (10–58 psi) differential, automatic reset, SPDT, NPT 1/4-18, IP30
060-214466
Danfoss
Danfoss KP36 pressure switch, 1–10.5 bar (14.5–150 psig), 0.7 bar (10 psi) differential, manual maximum reset, SPDT, NPT 1/4-18, IP30
060-214566
Danfoss
Danfoss KP34 pressure switch, 0.14–1.07 bar (2–15 psig), 0.14–0.42 bar (2–6 psi) differential, automatic reset, SPDT, NPT 1/4-18, IP30
060-214966
Danfoss
Danfoss KP35 pressure switch, 0.4–3.5 bar (6–50 psig), 0.48 bar (7 psi) differential, manual maximum reset, SPDT, NPT 1/4-18, IP30
060-215066
Danfoss
Danfoss KP34 pressure switch, 0–4 bar (0–58 psig), 0.16 bar (2.3 psi) differential, automatic reset, SPDT, G 1/2 in, IP30
060-219166
Danfoss

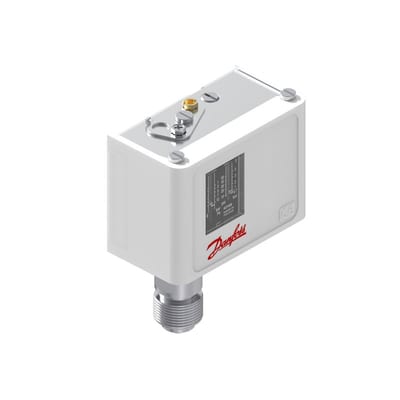

Danfoss KP36 pressure switch, up to 17 bar (245 psig), factory-set 3.5 bar, 0.7 bar (10 psi) differential, automatic reset, SPDT, G 1/2 in, IP30
060-219366
Danfoss

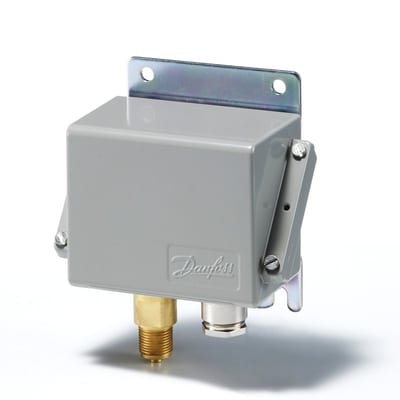

Danfoss KPS35 pressure switch, 0–8 bar (0–116 psig), 0.4–1.5 bar (6–22 psi) differential, automatic reset, SPDT, G 3/8 in, IP67
