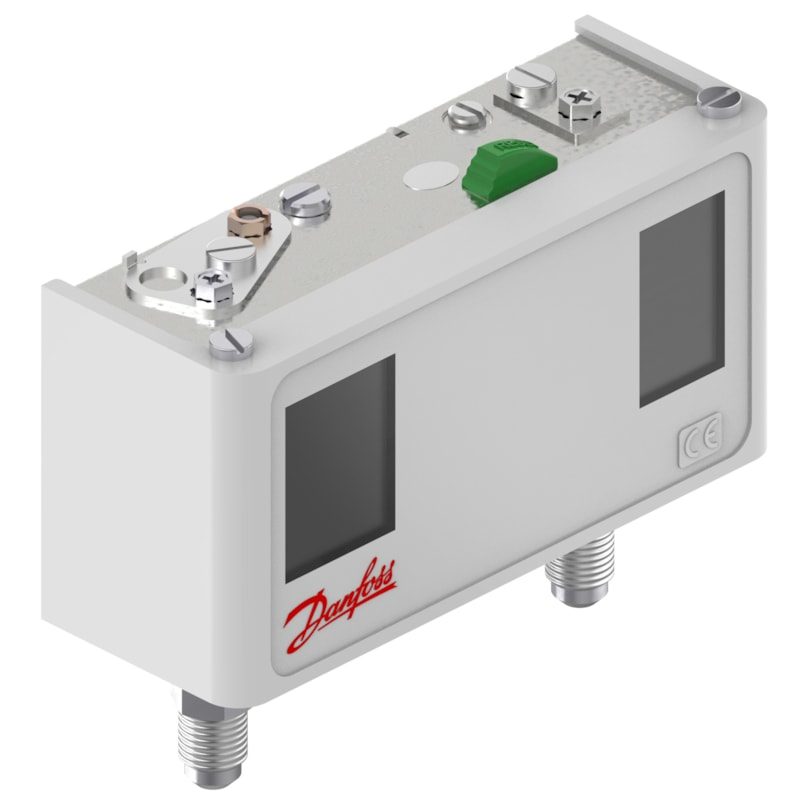

Danfoss KP15 dual pressure switch, LP -0.2 to 7.5 bar auto / HP 8 to 32 bar manual-max, SPDT, 1/4 in flare, rubber cable gland
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP15 combined low/high (dual) pressure switch, code 060-128066. LP side -0.2 to 7.5 bar (differential 0.7 to 4 bar, automatic reset) and HP side 8 to 32 bar (differential 4 bar, manual maximum reset), common SPDT contact. 1/4 in DIN 8906 flare pressure connections with a rubber cable gland (6-14 mm) cable entry, IP30 enclosure, MWP 17 bar (LP) / 35 bar (HP). LP automatic control with latching HP safety cut-out; rubber-gland cable-entry variant. Marine class approvals BV, DNV, GL, LR, RINA, RMRS.
Technical Specifications
- Type
- KP15 dual pressure switch
- Code number
- 060-128066
- LP range
- -0.2 to 7.5 bar (differential 0.7 to 4 bar)
- HP range
- 8 to 32 bar (differential 4 bar)
- Reset
- LP automatic / HP manual maximum
- Contact system
- SPDT
- Connection
- 1/4 in DIN 8906 flare
- Cable entry
- rubber cable gland (6-14 mm)
- Max working pressure
- 17 bar (LP) / 35 bar (HP)
- Enclosure
- IP30
- Approvals
- BV, DNV, GL, LR, RINA, RMRS
- EAN
- 5702428012096
- Net weight
- 0.4 Kilogram
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Application note
- Not applicable for liquid line
- Approval
- BV
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V
- Differential left side [bar] [max]
- 4 bar
- Differential left side [bar] [min]
- 0.7 bar
- Differential left side [psi] [max]
- 58 psi
- Differential left side [psi] [min]
- 10 psi
- Differential right side [bar]
- 4 bar
- Differential right side [psi]
- 58 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Lubricants compatibility
- Oilfree applications
- Max.test press.left side[bar]
- 20 bar
- Max.test press.right side[bar]
- 35 bar
- MWP left side [bar] Pe
- 17 bar
- MWP left side [psig] Pe
- 245 psig
- MWP right side [bar] Pe
- 35 bar
- MWP right side [psig] Pe
- 510 psig
- Oil free refrigerants
- R134a
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 8906
- Pressure connection type
- Flare
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R113
- Regulation left side [bar]Pe [max]
- 7.5 bar
- Regulation left side [bar]Pe [min]
- -0.2 bar
- Regulation left side range Pe
- 6 inHg - 108 psig
- Regulation right side [bar]Pe [max]
- 32 bar
- Regulation right side [bar]Pe [min]
- 8 bar
- Regulation right side [psig]Pe [max]
- 464 psig
- Regulation right side [psig]Pe [min]
- 116 psig
- Reset function, left side
- Auto
- Reset function, right side
- Manual Max
- UL approval file name
- E31024
- UL approved refrigerants
- R113
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- 1/4 in DIN 8906 flare (rubber cable gland 6-14 mm)
- Pressure Rating
- max working pressure 17 bar (LP) / 35 bar (HP)
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
LP automatic control + latching HP safety cut-out; rubber-gland (6-14 mm) cable-entry variant of KP15.
