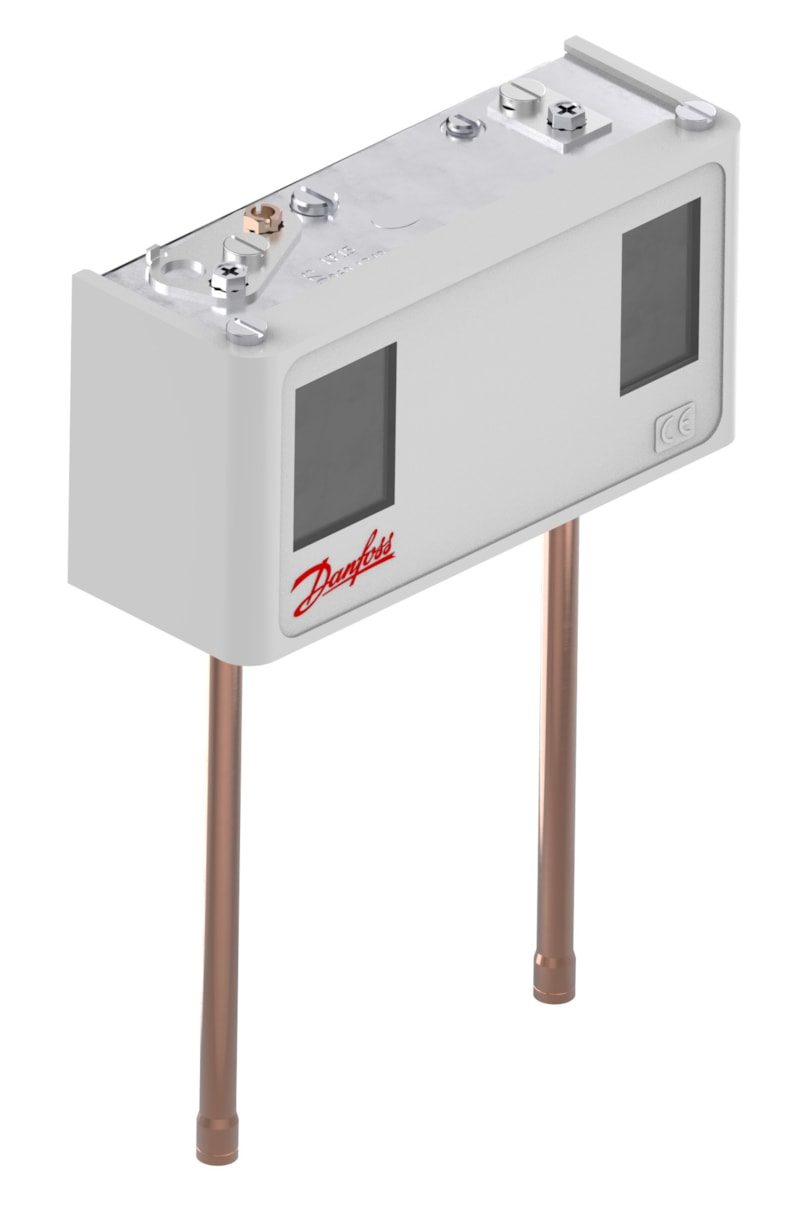

Danfoss KP15 dual pressure switch, LP -0.2 to 7.5 bar / HP 8 to 32 bar, auto/auto, SPDT, 6 mm solder ODF, IP44
Danfoss · Sensors & Instrumentation · Pressure Switches
Danfoss KP15 combined low/high (dual) pressure switch, code 060-124966. LP side -0.2 to 7.5 bar (differential 0.7 to 4 bar) and HP side 8 to 32 bar (differential 4 bar), both automatic reset, common SPDT contact. 6 mm solder (ODF, EN 1254) pressure connections, IP44 enclosure, MWP 17 bar (LP) / 35 bar (HP). Solder-connection, IP44 variant for combined LP cut-in / HP cut-out compressor protection. Marine class approvals BV, DNV, GL, LR, RINA, RMRS.
Specifications
- Part number
- 060-124966
- HS code
- 9026.20
- Material
- Steel/zinc-plated housing; bellows pressure element
- Pressure rating
- max working pressure 17 bar (LP) / 35 bar (HP)
- Temperature range
- -40 to +65 °C
- IP rating
- IP44
- Thread standard
- 6 mm solder, ODF (EN 1254)
Compatibility
Combined LP cut-in / HP cut-out compressor protection; both sides automatic reset. Solder-ODF (6 mm), IP44 connection/enclosure variant.
Standards
- IEC 60529 (enclosure IP rating)
- EU RoHS
Approvals
- CE
- UL
- PED
- EU RoHS
- BV
- DNV
- GL
- LR
- RINA
- RMRS
