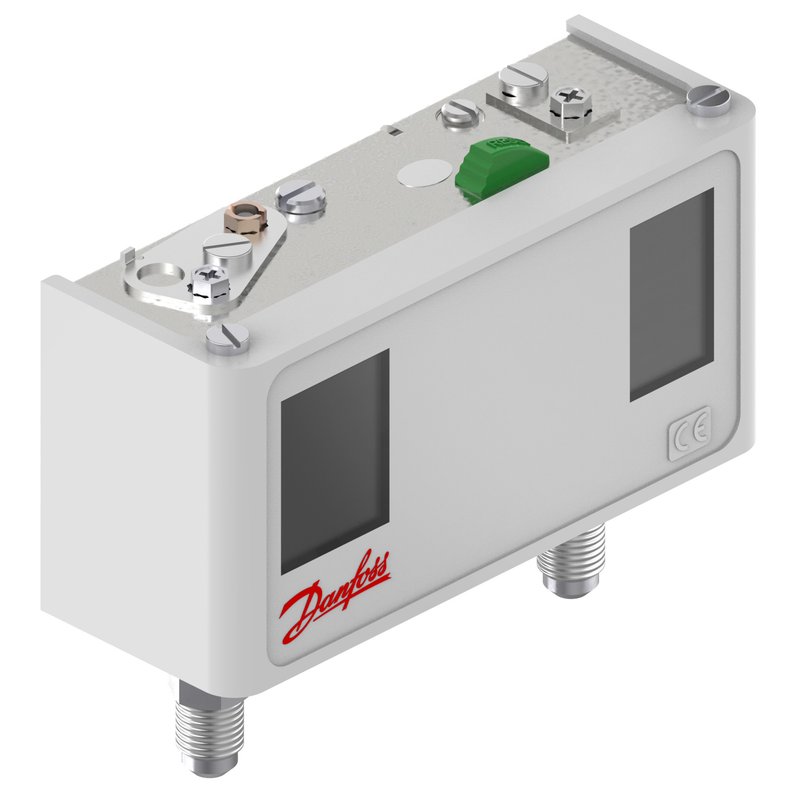

Danfoss KP15 dual pressure switch, LP -0.2 to 7.5 bar auto / HP 8 to 32 bar manual-max, SPDT, 1/4 in flare male
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP15 combined low/high (dual) pressure switch, code 060-124366. LP side -0.2 to 7.5 bar (differential 0.7 to 4 bar, automatic reset) and HP side 8 to 32 bar (differential 4 bar, manual maximum reset), common SPDT contact. 1/4 in DIN 8906 flare (male) pressure connections, IP30 enclosure, MWP 17 bar (LP) / 35 bar (HP). LP automatic control combined with a latching HP safety cut-out in one enclosure. Marine class approvals BV, DNV, GL, LR, RINA, RMRS.
Technical Specifications
- Type
- KP15 dual pressure switch
- Code number
- 060-124366
- LP range
- -0.2 to 7.5 bar (differential 0.7 to 4 bar)
- HP range
- 8 to 32 bar (differential 4 bar)
- Reset
- LP automatic / HP manual maximum
- Contact system
- SPDT
- Connection
- 1/4 in DIN 8906 flare, male (LP and HP)
- Max working pressure
- 17 bar (LP) / 35 bar (HP)
- Enclosure
- IP30
- Approvals
- BV, DNV, GL, LR, RINA, RMRS
- EAN
- 5702422032939
- Product group
- Switches and thermostats
- Max.test press.left side
- 20 bar
- Max.test press.right side
- 35 bar
- MWP left side Pe
- 17.0 bar
- MWP right side Pe
- 35.0 bar
- Ambient temperature range
- -40 °C to 65 °C
- Refrigerants
- R113; R1233zd(E); R1234yf; R1234yz; R1234ze(E); R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R454C; R455A; R507A; R513A; R515B
- Lubricants compatibility
- Oilfree applications
- UL approval file name
- E31024
- UL approved refrigerants
- R113; R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R507A; R513A; R515B
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1); Cadmium oxide (CAS no.1306-19-0)
- Net weight
- 0.432 kg
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Application note
- Not applicable for liquid line
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V
- Differential left side
- 0.70 bar to 4.00 bar
- Differential right side
- 4.0 bar
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- In scope of WEEE
- Yes
- Oil free refrigerants
- R134a; R513A; R515B
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- 1/4 in DIN 8906 flare, male
- Pressure Rating
- max working pressure 17 bar (LP) / 35 bar (HP)
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
LP automatic control + latching HP safety cut-out in one enclosure. Flare-male (DIN 8906) connection variant; HP side manual-max reset.
Product Documentation
More from Danfoss
Danfoss
Danfoss KP15 dual pressure switch, LP -0.2 to 7.5 bar / HP 8 to 32 bar, auto/auto, SPDT, 6 mm solder ODF, IP44
060-124966
Danfoss
Danfoss KP15 dual pressure switch, LP -0.2 to 7.5 bar auto / HP 8 to 32 bar manual-max, SPDT, 1/4 in flare, rubber cable gland
060-128066
Danfoss
Danfoss KP15A dual pressure switch, LP -0.2 to 7.5 bar auto / HP 8 to 32 bar manual-max, SPDT+SPST(NO), M10 x 0.75
060-129466
Danfoss
Danfoss KPI34 pressure switch, -0.2 to 3 bar, auto reset, SPDT, G 1/4 in connection
060-130266
Danfoss
Danfoss KPI35 pressure switch, factory-set 4.8 bar, 1.4 bar differential, auto reset, SPDT, G 1/4 in, IP55
060-130366
Danfoss

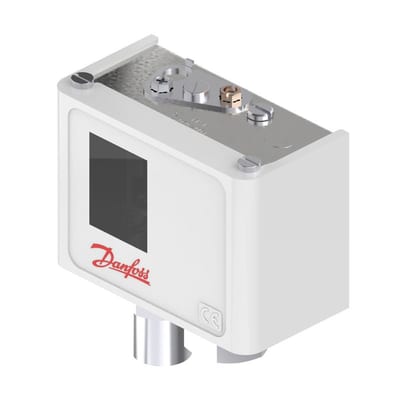

Danfoss KP36 pressure switch, 1–10.5 bar (14.5–150 psig), 0.7–4 bar (10–58 psi) differential, automatic reset, SPDT, NPT 1/4-18, IP30
060-214466
Danfoss

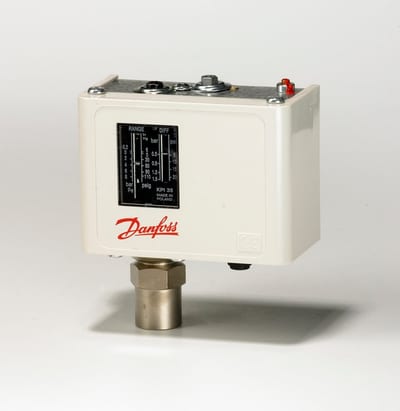

Danfoss KP36 pressure switch, 1–10.5 bar (14.5–150 psig), 0.7 bar (10 psi) differential, manual maximum reset, SPDT, NPT 1/4-18, IP30
060-214566
Danfoss

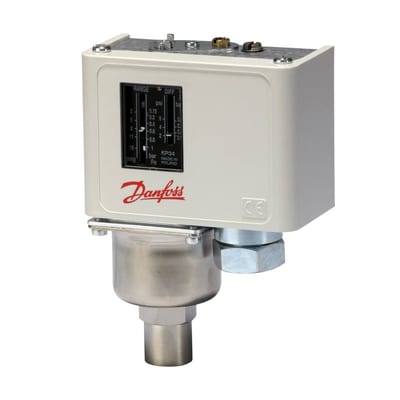

Danfoss KP34 pressure switch, 0.14–1.07 bar (2–15 psig), 0.14–0.42 bar (2–6 psi) differential, automatic reset, SPDT, NPT 1/4-18, IP30
