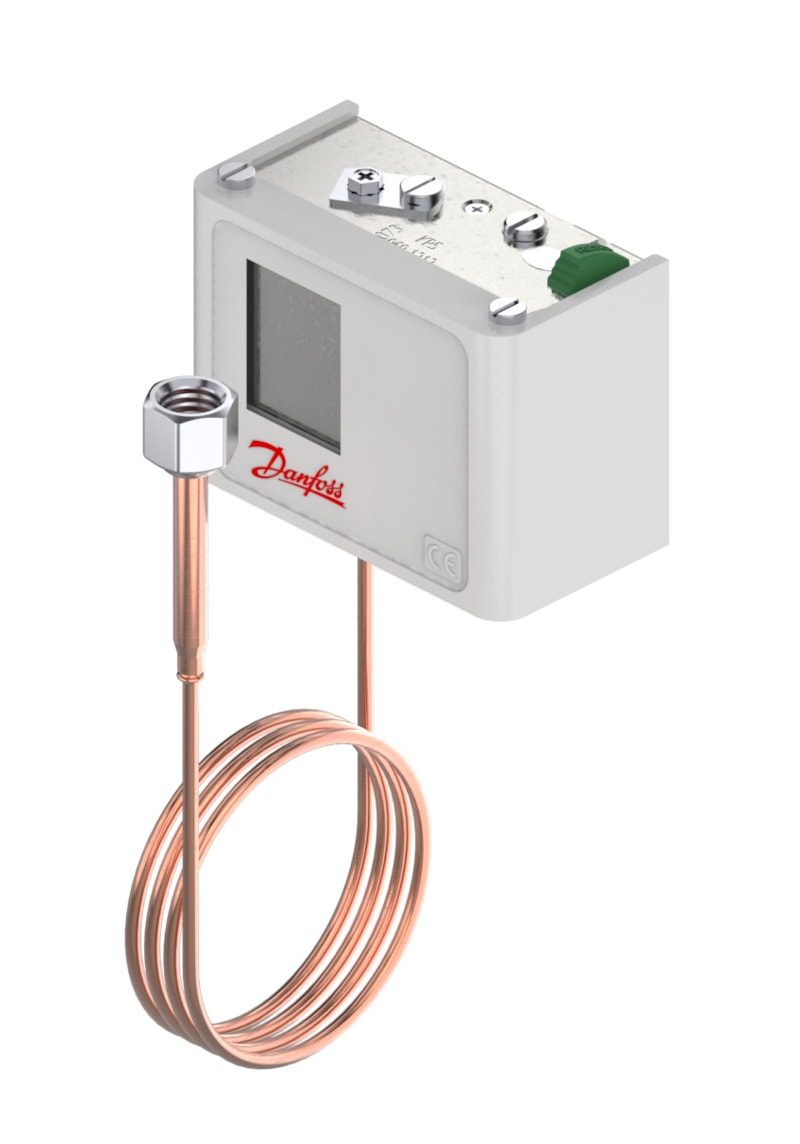

Danfoss KP5 pressure switch, 8 to 32 bar, manual (max) reset, SPDT, 1/4 in flare
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP5 high-pressure limiter, code 060-121266. Regulating range 8 to 32 bar, fixed differential 3 bar, manual maximum (lockout) reset, SPDT snap-action contact. 1/4 in flare nut pressure connection, IP30 enclosure, max working pressure 35 bar. Supplied with angle bracket and 900 mm capillary tube. The manual-max-reset KP5 is a safety high-pressure cut-out that latches until manually released. Marine class approvals BV, DNV, LR, RINA, RMRS.
Technical Specifications
- Type
- KP5 high-pressure switch (limiter)
- Code number
- 060-121266
- Regulating range
- 8 to 32 bar
- Differential
- 3 bar (fixed)
- Reset
- manual maximum (lockout)
- Contact system
- SPDT
- Connection
- 1/4 in flare nut
- Capillary tube
- 900 mm
- Max working pressure
- 35 bar
- Enclosure
- IP30
- Approvals
- BV, DNV, LR, RINA, RMRS
- EAN
- 5702428016025
- Net weight
- 0.565 Kilogram
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Application note
- Not applicable for liquid line
- Approval
- BV
- Cap. tube length fraction [in]
- 36 in
- Capillary tube length [mm]
- 900 mm
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V
- Differential [bar]
- 3 bar
- Differential [psi]
- 43 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Lubricants compatibility
- Oilfree applications
- Max. test pressure [bar] Pe
- 35 bar
- Max. test pressure [psig]
- 510 psig
- Max. Working Pressure [bar]
- 35 bar
- Max. Working Pressure [psig]
- 510 psig
- Oil free refrigerants
- R134a
- Parts included
- Angle bracket
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 8912
- Pressure connection type
- Flare nut
- Pressure Male/Female
- Female
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R113
- Regulation range [bar] Pe [max]
- 32 bar
- Regulation range [bar] Pe [min]
- 8 bar
- Regulation range [psig] Pe [max]
- 464 psig
- Regulation range [psig] Pe [min]
- 116 psig
- Reset function
- Manual Max
- UL approval file name
- E31024
- UL approved refrigerants
- R113
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- 1/4 in flare nut
- Pressure Rating
- max working pressure 35 bar
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
Safety high-pressure cut-out that latches on trip until manually reset; refrigeration/AC HP limiter duty. Manual-max-reset variant of KP5.
