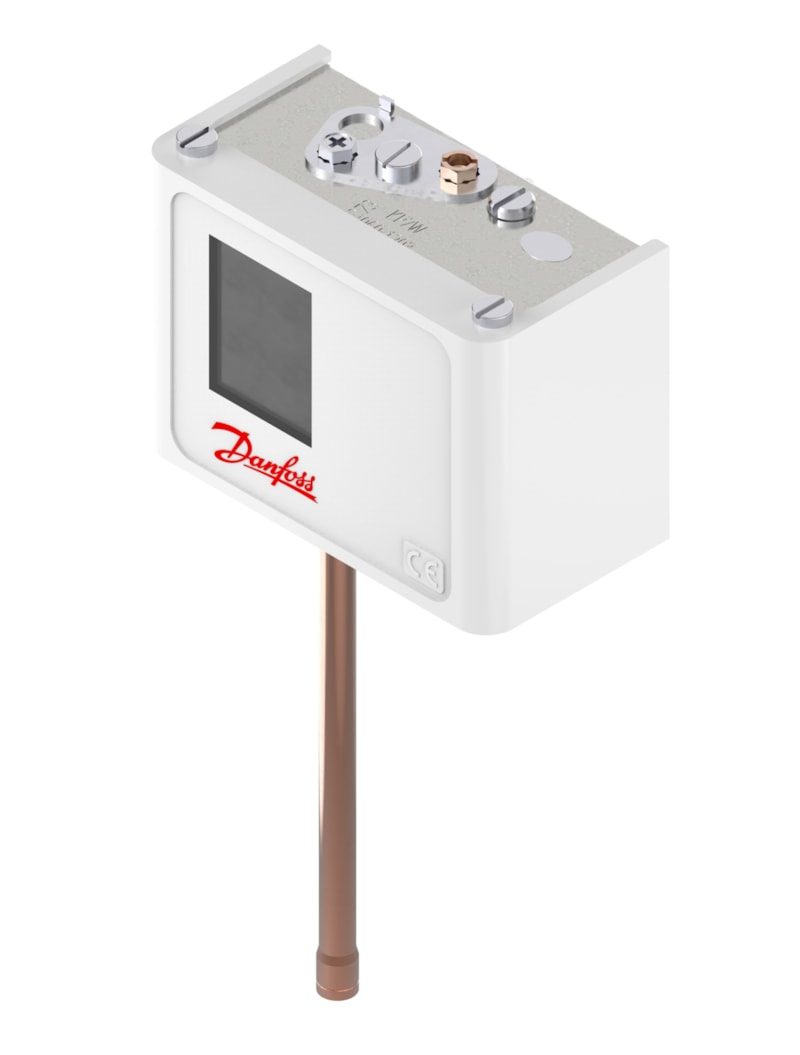

Danfoss KP5 pressure switch, 8 to 32 bar, automatic reset, SPDT, 6 mm solder ODF
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP5 high-pressure switch, code 060-117766. Regulating range 8 to 32 bar, differential 1.8 to 6 bar, automatic reset, single SPDT contact. 6 mm solder ODF (female, EN 1254-1) connection, IP44 enclosure. High-pressure control for refrigeration and air-conditioning systems; bellows sensing element. Not for liquid line.
Technical Specifications
- Type
- KP5 high-pressure switch
- Code number
- 060-117766
- Regulating range
- 8 to 32 bar (116 to 464 psig)
- Differential
- 1.8 to 6 bar
- Reset
- automatic
- Contact system
- SPDT
- Connection
- 6 mm solder ODF (female), EN 1254-1
- Max working pressure
- 35 bar (510 psig)
- Enclosure
- IP44
- Sensing element
- bellows
- Ambient temperature
- -50 to +100 °C
- Net weight
- 0.349 kg (gross 0.392 kg)
- EAN
- 5702428014755
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Application note
- Not applicable for liquid line
- Approval
- BV
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V
- Differential [bar] [max]
- 6 bar
- Differential [bar] [min]
- 1.8 bar
- Differential [psi] [max]
- 87 psi
- Differential [psi] [min]
- 26 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP44
- Enclosure rating Nema (~)
- 2
- EU RoHS compliance
- Yes
- Identical product
- 060-537266
- In scope of WEEE
- Yes
- Lubricants compatibility
- Oilfree applications
- Max. test pressure [bar] Pe
- 35 bar
- Max. test pressure [psig]
- 510 psig
- Max. Working Pressure [bar]
- 35 bar
- Max. Working Pressure [psig]
- 510 psig
- Oil free refrigerants
- R134a
- Pressure connection size
- 6 mm
- Pressure connection standard
- EN 1254-1
- Pressure connection type
- Solder, ODF
- Pressure Male/Female
- Female
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R113
- Regulation range [bar] Pe [max]
- 32 bar
- Regulation range [bar] Pe [min]
- 8 bar
- Regulation range [psig] Pe [max]
- 464 psig
- Regulation range [psig] Pe [min]
- 116 psig
- Reset function
- Auto
- UL approval file name
- E31024
- UL approved refrigerants
- R113
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- 6 mm solder ODF (female), EN 1254-1
- Pressure Rating
- max working pressure 35 bar (510 psig)
- Temperature Range
- -50 to +100 °C (ambient)
- IP Rating
- IP44
- HS Code
- 9026.20
Compatibility & Fitment
Refrigeration/AC high-pressure (HP) switch, automatic reset, bellows. Distinct from the 1/4 in solder ODF auto KP5 (060-117966) by 6 mm solder connection and from the manual KP5 (060-117366) by reset. Verify range, reset and connection before ordering.
