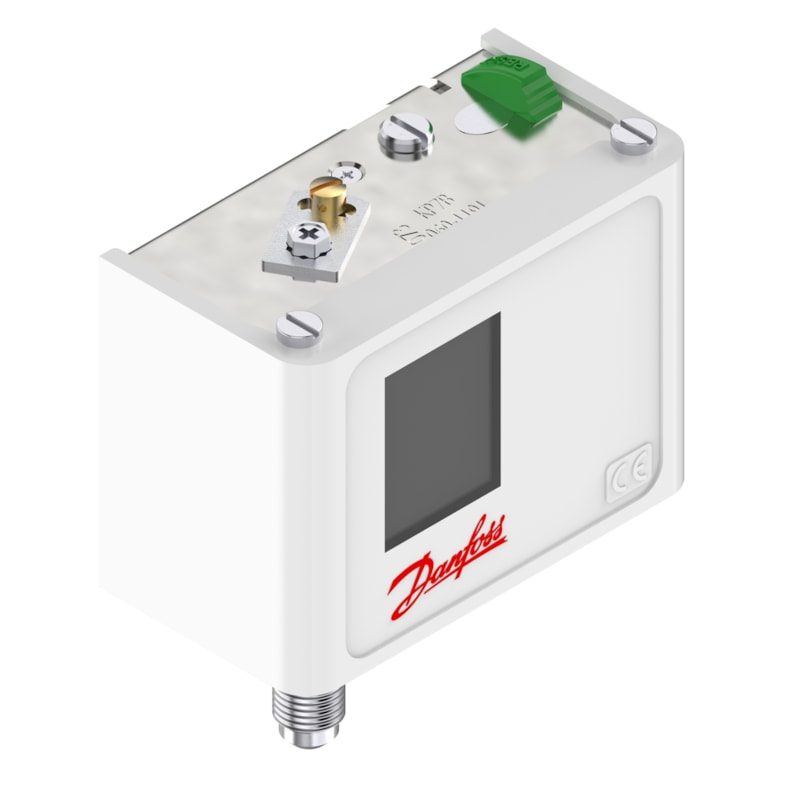

Danfoss KP7B pressure switch, 8 to 32 bar, manual reset, SPDT, 1/4 in flare
Danfoss · Sensors & Instrumentation · Pressure Switches
Danfoss KP7B high-pressure switch, code 060-119166. Regulating range 8 to 32 bar, fixed differential 4 bar, manual reset, single SPDT contact. 1/4 in flare (male, DIN 8906) connection, IP30 enclosure. High-pressure cut-out for refrigeration and air-conditioning systems, including oil-free applications; bellows sensing element. Not for liquid line.
Specifications
- Part number
- 060-119166
- HS code
- 9026.20
- Material
- Steel/zinc-plated housing; bellows pressure element
- Pressure rating
- max working pressure 35 bar (510 psig)
- Temperature range
- -50 to +100 °C (ambient)
- IP rating
- IP30
- Thread standard
- 1/4 in flare (male), DIN 8906
Compatibility
Refrigeration/AC high-pressure (HP) switch, manual reset, bellows. Distinct model from the KP7W wide-differential auto (060-119066) and KP7BS dual safety (060-120066). Verify model, range, reset and connection before ordering.
Standards
- IEC 60529 (enclosure IP rating)
- UL 873
- CSA C22.2
- EU RoHS
Approvals
- CE
- UL
- DNV
- GL
- LR
- BV
- RINA
- RMRS
- EAC
- CCC
- LVD
- PED
- CSA C22.2
- EU RoHS
- China RoHS
