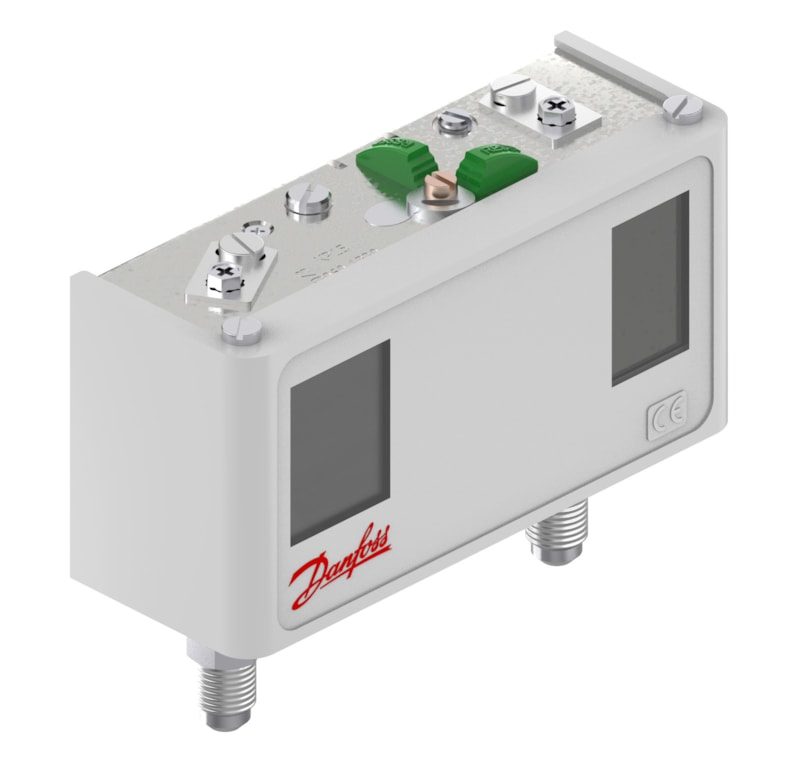

Danfoss KP15 dual pressure switch, LP -0.9 to 7 bar / HP 8 to 32 bar, convertible reset, SPDT+SPST(NO), 1/4 in flare
Danfoss · Sensors & Instrumentation · Pressure Switches
Danfoss KP15 combined low- and high-pressure switch, code 060-122066. Low-pressure side -0.9 to 7 bar (differential 0.7 bar, min convertible reset); high-pressure side 8 to 32 bar (differential 4 bar, max convertible reset). SPDT+SPST(NO) contact system. 1/4 in flare connection (male), DIN 8906, IP30 enclosure. Combined LP/HP control and protection in refrigeration and air-conditioning. Double-bellows pressure element.
Specifications
- Part number
- 060-122066
- HS code
- 9026.20
- Material
- Steel/zinc-plated housing; double-bellows pressure element
- Pressure rating
- max working pressure LP 17 bar / HP 35 bar
- Temperature range
- -40 to +65 °C
- IP rating
- IP30
- Thread standard
- 1/4 in flare (male) connection, DIN 8906
Compatibility
Refrigeration/AC combined low- and high-pressure control. Distinguished from the SPDT-only KP15 060-126166 (same convertible ranges) by its SPDT+SPST(NO) contact system. Verify ranges, differentials, reset and connection before ordering.
Standards
- IEC 60529 (enclosure IP rating)
- EU RoHS
Approvals
- CE
- UL 873
- CSA C22.2
- BV
- DNV
- GL
- LR
- RINA
- RMRS
- CCC
- CMIM
- EAC
- LVD
- PED
- China RoHS
- EU RoHS
