Danfoss KP15 dual pressure switch, LP -0.2 to 7.5 bar / HP 8 to 32 bar, min / max convertible reset, SPDT+SPST(NO), 1/4 in flare, IP44

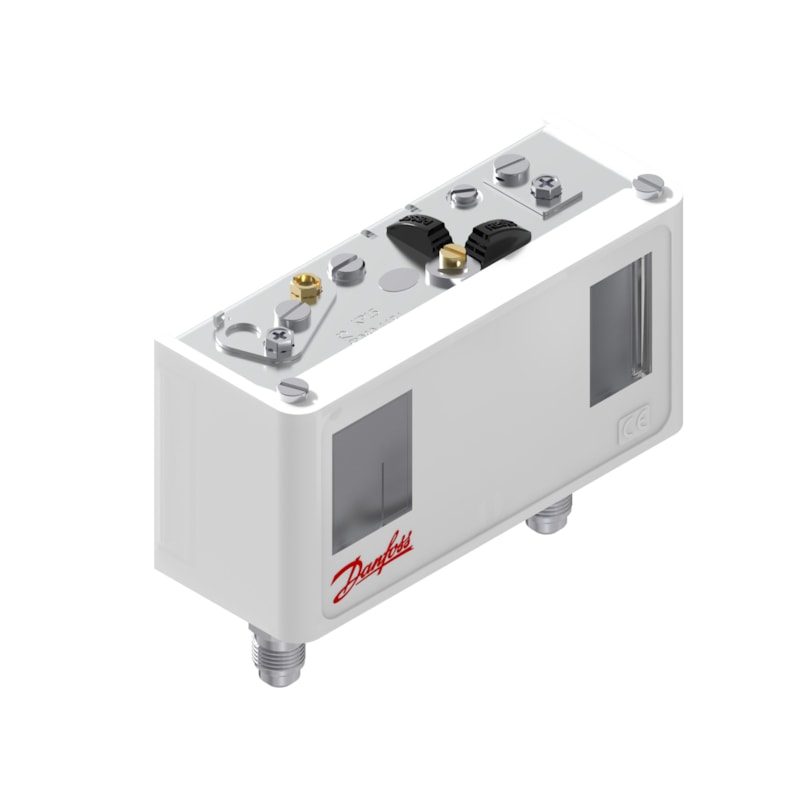

Danfoss KP15 combined low- and high-pressure switch, code 060-115466. Low-pressure side -0.2 to 7.5 bar (differential 0.7 to 4 bar, minimum convertible reset); high-pressure side 8 to 32 bar (differential 4 bar, maximum convertible reset). SPDT+SPST(NO) contact system. 1/4 in flare connection (male), DIN 8906, IP44 enclosure. Combined LP/HP control and protection in refrigeration and air-conditioning. Double-bellows pressure element.

Type

KP15 dual (low + high) pressure switch Code number: 060-115466 LP regulating range: -0.2 to 7.5 bar (differential 0.7 to 4 bar) HP regulating range: 8 to 32 bar (differential 4 bar) Reset: LP minimum convertible / HP maximum convertible Contact system: SPDT+SPST(NO) Connection: 1/4 in flare (male), DIN 8906 Max working pressure: LP 17 bar / HP 35 bar Enclosure: IP44 / NEMA 1 Ambient temperature: -40 to +65 °C Net weight: 0.452 kg (gross 0.514 kg) EAN: 5702422059448 Product group: Switches and thermostats Amb. Temp. Note: 80 °C/176 °F for max 120 min Ambient temperature range [°C] [max]: 65 °C Ambient temperature range [°C] [min]: -40 °C Ambient temperature range [°F] [max]: 149 °F Ambient temperature range [°F] [min]: -40 °F Application note: Not applicable for liquid line Approval: BV CE mark: Yes China RoHS compliance: Yes Contact function: SPDT+SPST(NO) Contact rating: AC15=10 A, 400 V Differential left side [bar] [max]: 4 bar Differential left side [bar] [min]: 0.7 bar Differential left side [psi] [max]: 58 psi Differential left side [psi] [min]: 10 psi Differential right side [bar]: 4 bar Differential right side [psi]: 58 psi EEE category: 5 small equipment (any external dimension < 50 cm) Electrical connection: Rubber cable gland Electrical connection size: 6-14 mm EN 60947 electrical properties: Insulation: 400V EN 60947 wiring properties: Flex, ferrules: 0.5-1.5 mm2 Enclosure rating IP: IP44 Enclosure rating Nema (~): 2 EU RoHS compliance: Yes In scope of WEEE: Yes Lubricants compatibility: Oilfree applications Max.test press.left side[bar]: 20 bar Max.test press.right side[bar]: 35 bar MWP left side [bar] Pe: 17 bar MWP left side [psig] Pe: 245 psig MWP right side [bar] Pe: 35 bar MWP right side [psig] Pe: 510 psig Oil free refrigerants: R134a Pressure connection size: 1/4 Pressure connection standard: DIN 8906 Pressure connection type: Flare Pressure Male/Female: Male Pressure sensing element: Bellows REACH Candidate List substances: Lead (CAS no. 7439-92-1) Refrigerants: R113 Regulation left side [bar]Pe [max]: 7.5 bar Regulation left side [bar]Pe [min]: -0.2 bar Regulation left side range Pe: 6 inHg - 108 psig Regulation right side [bar]Pe [max]: 32 bar Regulation right side [bar]Pe [min]: 8 bar Regulation right side [psig]Pe [max]: 464 psig Regulation right side [psig]Pe [min]: 116 psig Reset function, left side: Min convertible Reset function, right side: Max convertible UL approval file name: E31024 UL approved refrigerants: R113 UL mark: Yes

Material

Steel/zinc-plated housing; double-bellows pressure element

Thread Standard

1/4 in flare (male) connection, DIN 8906

Pressure Rating

max working pressure LP 17 bar / HP 35 bar

Temperature Range

-40 to +65 °C

IP Rating

IP44

HS Code

9026.20
