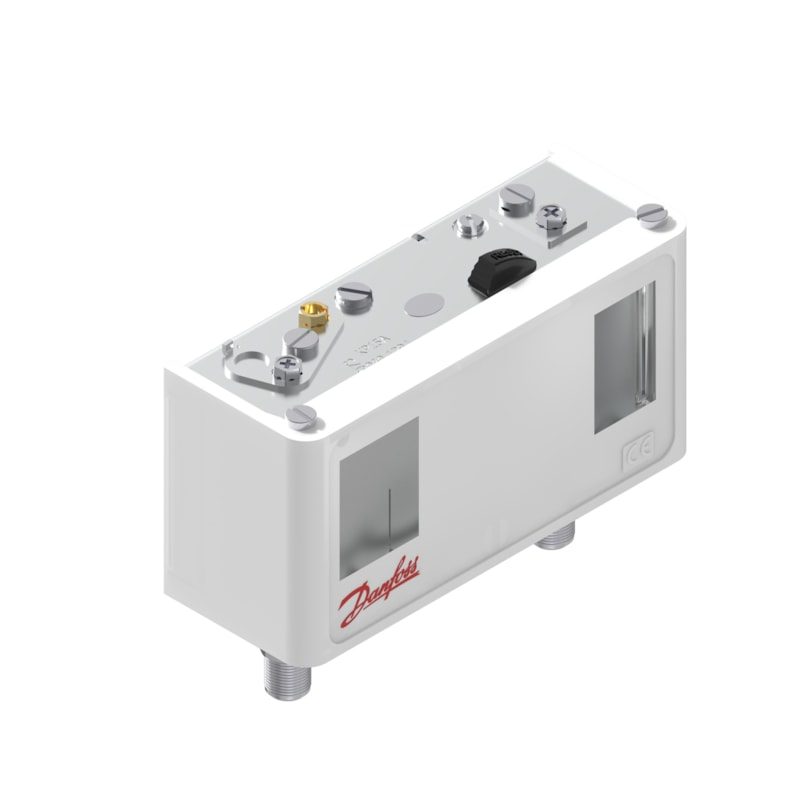

Danfoss KP15A dual pressure switch, LP -0.2 to 7.5 bar / HP 8 to 32 bar, auto / manual max reset, SPDT+SPST(NO), M10 x 0.75 male, IP30
Danfoss · Sensors & Instrumentation · Pressure Switches
Danfoss KP15A combined low- and high-pressure switch, code 060-129666. Low-pressure side -0.2 to 7.5 bar (differential 0.7 to 4 bar, automatic reset); high-pressure side 8 to 32 bar (differential 4 bar, manual maximum reset). SPDT+SPST(NO) contact system. M10 x 0.75 male threaded connection (ISO 261), IP30 enclosure. Combined LP/HP control and protection in refrigeration and air-conditioning. Double-bellows pressure element.
Specifications
- Part number
- CB-DANF-060129666
- HS code
- 9026.20
- Material
- Steel/zinc-plated housing; double-bellows pressure element
- Pressure rating
- max working pressure LP 17 bar / HP 35 bar
- Temperature range
- -40 to +65 °C
- IP rating
- IP30
- Thread standard
- M10 x 0.75 male (ISO 261) connection
Compatibility
Refrigeration/AC combined low- and high-pressure control with automatic LP reset and manual maximum HP reset. Distinguished from 060-129566 by its manual maximum (not automatic) high-pressure reset. Verify ranges, differentials, reset and connection before ordering.
Standards
- IEC 60529 (enclosure IP rating)
- EU RoHS
Approvals
- CE
- UL 873
- CSA C22.2
- BV
- DNV
- GL
- LR
- RINA
- RMRS
- CCC
- EAC
- LVD
- China RoHS
