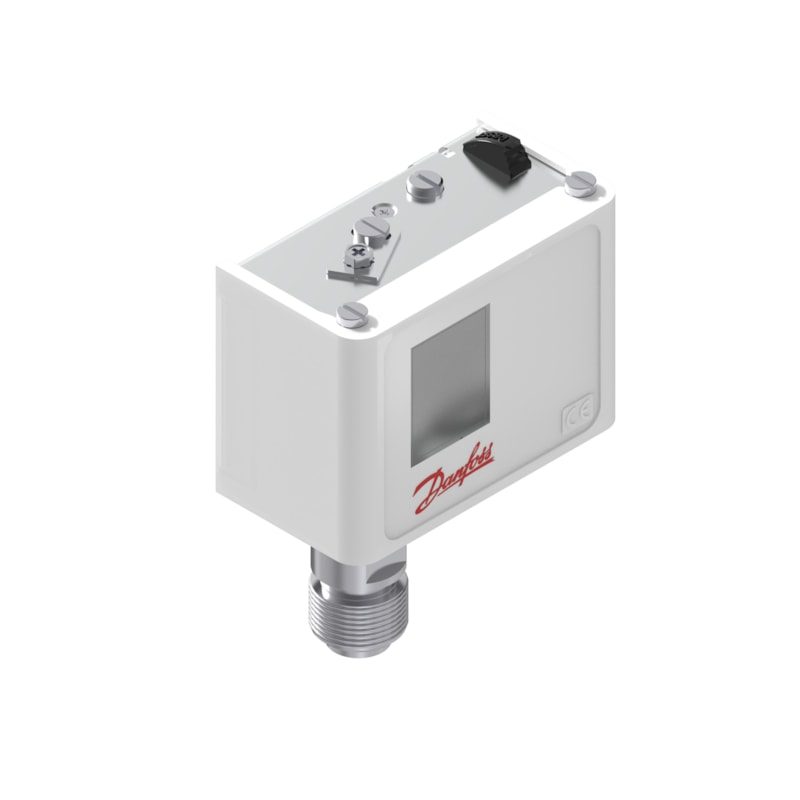

Danfoss KP35 pressure switch, 0.4–3.5 bar, manual (max) reset, SPDT, G 1/2
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP35 single-pressure switch (code 060-216566) with manual maximum reset. Regulating range 0.4–3.5 bar, differential 0.48 bar, SPDT snap-action contact. G 1/2 male connection per ISO 228-1, IP30 enclosure, ambient -40 to +65 °C. Max working pressure 17 bar, max test pressure 22 bar. Manual reset version for pressure cut-out and safety limiting of non-aggressive liquids and gases.
Technical Specifications
- Type
- KP35 single-pressure switch, manual reset
- Code number
- 060-216566
- EAN
- 5702428243803
- Regulating range
- 0.4–3.5 bar (6–50 psig)
- Differential
- 0.48 bar
- Max working pressure (PB)
- 17 bar
- Max test pressure (Pe)
- 22 bar
- Reset
- manual (max)
- Contact system
- SPDT (single-pole double-throw)
- Contact load
- AC-1 16 A/400 V; AC-15 10 A/400 V; DC-13 12 W/220 V
- Connection
- G 1/2 male (ISO 228-1)
- Enclosure
- IP30 (IP55 with enclosure 060-033066/062866)
- Ambient temperature
- -40 to +65 °C (80 °C max 120 min)
- Net weight
- 0.309 kg
- Gross weight
- 0.362 kg
- Packing format
- multi-pack 36 pc
- Vibration
- 0–1000 Hz, 4 g
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CCC
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Contact rating
- 120Vac,16FLA,96LRA,3APilotDuty
- Differential [bar]
- 0.48 bar
- Differential [psi]
- 7 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 22 bar
- Max. test pressure [psig]
- 319 psig
- Max. Working Pressure [bar]
- 17 bar
- Max. Working Pressure [psig]
- 245 psig
- Pressure connection size
- 1/2
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Regulation range [bar] Pe [max]
- 3.5 bar
- Regulation range [bar] Pe [min]
- 0.4 bar
- Regulation range [psig] Pe [max]
- 50 psig
- Regulation range [psig] Pe [min]
- 6 psig
- Reset function
- Manual Max
- UL approval file name
- E31024
- UL approved refrigerants
- R1234yf
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- ISO 228-1 (G 1/2 male)
- Pressure Rating
- PB 17 bar; max test 22 bar
- Temperature Range
- -40 to +65 °C (80 °C max 120 min)
- IP Rating
- IP30 (IP55 with enclosure 060-033066/062866)
- HS Code
- 9026.20
Compatibility & Fitment
Single-pressure switch for pressure cut-out / safety limiting of non-aggressive media. SPDT contact, manual maximum reset (latches on trip until manually reset). IP30 as supplied; fit IP55 enclosure 060-033066/062866. Verify cut-out point and differential before ordering.
