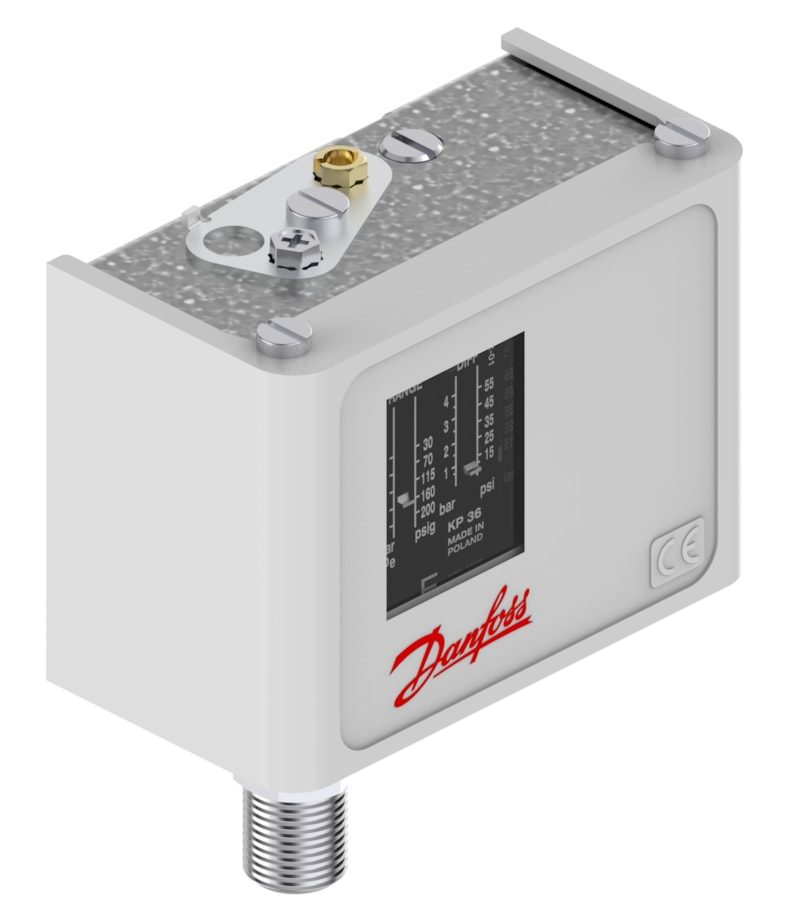

Danfoss KP36 pressure switch, 2–14 bar, gold contacts, auto reset, SPDT, G 1/4
Danfoss · Sensors & Instrumentation · Pressure Switches
Danfoss KP36 single-pressure switch (code 060-113766) with automatic reset and gold-plated contacts for low-current signalling. Regulating range 2–14 bar, differential 0.7–4 bar, SPDT snap-action contact, bellows sensing element. G 1/4 male connection per ISO 228-1, IP30 enclosure, ambient -40 to +65 °C. Max working pressure 17 bar. For pressure monitoring of non-aggressive liquids and gases.
Specifications
- Part number
- 060-113766
- HS code
- 9026.20
- Material
- Steel/zinc-plated housing; bellows pressure element
- Pressure rating
- PB 17 bar (245 psig)
- Temperature range
- -40 to +65 °C (80 °C max 120 min)
- IP rating
- IP30
- Thread standard
- ISO 228-1 (G 1/4 male)
Compatibility
Single-pressure switch for low-current pressure signalling of non-aggressive media. Gold-plated SPDT contact, automatic reset. Verify set point and differential before ordering.
Standards
- ISO 228-1 (G 1/4 connection)
- IEC 60529 (IP30)
- EU RoHS
Approvals
- CE
- CCC
- EAC
- LVD
- RINA
- UL 873
- China RoHS
- EU RoHS
