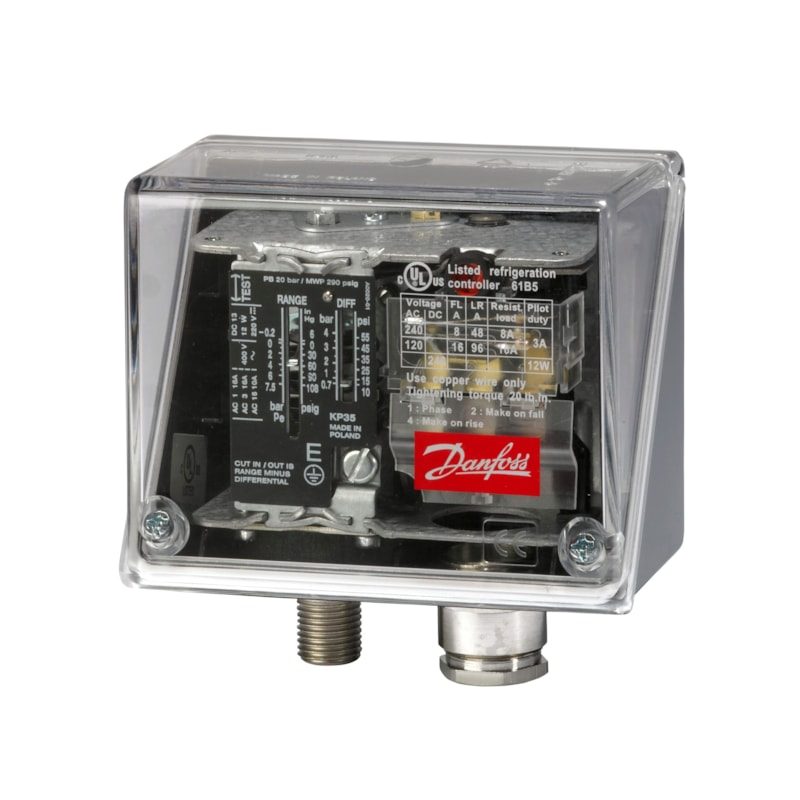

Danfoss KP35 pressure switch, -0.2 to 7.5 bar, IP55, auto reset, SPDT, G 1/4
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP35 single-pressure switch (code 060-538666) with automatic reset in an IP55 weatherproof enclosure. Regulating range -0.2 to 7.5 bar, differential 0.7–4 bar, SPDT snap-action contact, bellows sensing element. G 1/4 male connection per ISO 228-1, ambient -40 to +65 °C. Max working pressure 17 bar. For pressure monitoring and limiting of non-aggressive liquids and gases in damp or exposed locations.
Technical Specifications
- Type
- KP35 single-pressure switch, auto reset
- Code number
- 060-538666
- EAN
- 5702423206339
- Regulating range
- -0.2 to 7.5 bar
- Differential
- 0.7–4 bar
- Max working pressure (PB)
- 17 bar
- Max test pressure (Pe)
- 22 bar
- Reset
- automatic
- Contact system
- SPDT (single-pole double-throw)
- Contact load
- AC-1 16 A/400 V; AC-15 10 A/400 V; DC-13 12 W/220 V
- Connection
- G 1/4 male (ISO 228-1)
- Sensing element
- bellows
- Enclosure
- IP55 (integral weatherproof enclosure)
- Ambient temperature
- -40 to +65 °C (80 °C max 120 min)
- Net weight
- 0.453 kg
- Gross weight
- 0.48 kg
- Packing format
- multi-pack 30 pc
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CCC
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V
- Differential [bar] [max]
- 4 bar
- Differential [bar] [min]
- 0.7 bar
- Differential [psi] [max]
- 58 psi
- Differential [psi] [min]
- 10 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Metal cable gland
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- Pg 13.5
- Electrical connection standard
- DIN 40430
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP55
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 22 bar
- Max. test pressure [psig]
- 319 psig
- Max. Working Pressure [bar]
- 17 bar
- Max. Working Pressure [psig]
- 245 psig
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Regulation range
- 6 inHg - 108 psig
- Regulation range [bar] Pe [max]
- 7.5 bar
- Regulation range [bar] Pe [min]
- -0.2 bar
- Reset function
- Auto
- UL approval file name
- E31024
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- ISO 228-1 (G 1/4 male)
- Pressure Rating
- Max working pressure 17 bar (245 psig)
- Temperature Range
- -40 to +65 °C (80 °C max 120 min)
- IP Rating
- IP55
- HS Code
- 9026.20
Compatibility & Fitment
Single-pressure switch for pressure monitoring / limiting of non-aggressive media. SPDT contact, automatic reset. Verify set point and differential before ordering.
