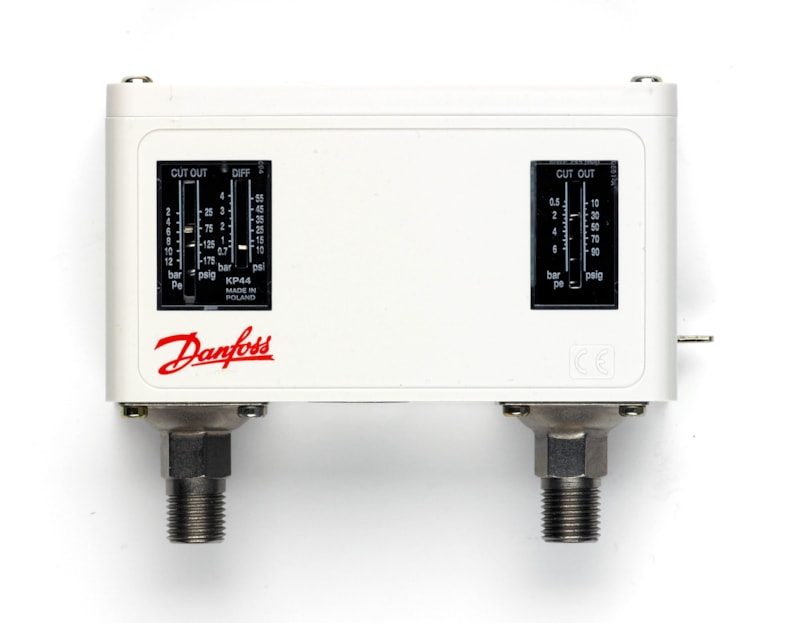

Danfoss KP44 dual-pressure switch (control + safety), 2–12 / 0.5–6 bar, auto reset
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP44 dual-pressure switch (code 060-001366) combining a control side and a safety side in one unit. Control (left) side regulating range 2–12 bar, differential 0.7–4 bar; safety (right) side range 0.5–6 bar, fixed differential 1 bar. Contact system SPST(NO) + SPST(NC), automatic reset on both sides, bellows sensing elements. Two 1/4" G male connections per ISO 228-1, IP22 enclosure. For pressure control and safety limiting of non-aggressive liquids and gases.
Technical Specifications
- Type
- KP44 dual-pressure switch (control + safety), auto reset both sides
- Code number
- 060-001366
- EAN
- 5702423148592
- Control (left) regulating range
- 2–12 bar (29–174 psig)
- Control (left) differential
- 0.7–4 bar (10–58 psi)
- Safety (right) range
- 0.5–6 bar (7–87 psig)
- Safety (right) differential
- 1 bar (14.5 psi), fixed
- Permissible operating pressure
- 17 bar each side
- Max test pressure
- left 25 bar, right 19 bar
- Reset
- automatic, both sides
- Contact system
- SPST(NO) + SPST(NC)
- Contact material
- standard (silver)
- Connection
- 2 × 1/4" G male (ISO 228-1)
- Sensing element
- bellows
- Enclosure
- IP22
- Net weight
- 0.52 kg
- Gross weight
- 0.572 kg
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CCC
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPST(NO)+SPST(NC)
- Contact rating
- AC15=10 A, 400 V
- Differential left side [bar] [max]
- 4 bar
- Differential left side [bar] [min]
- 0.7 bar
- Differential left side [psi] [max]
- 58 psi
- Differential left side [psi] [min]
- 10 psi
- Differential right side [bar]
- 1 bar
- Differential right side [psi]
- 14.5 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP22
- Enclosure rating Nema (~)
- 2
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Max.test press.left side[bar]
- 25 bar
- Max.test press.right side[bar]
- 19 bar
- MWP left side [bar] Pe
- 17 bar
- MWP left side [psig] Pe
- 245 psig
- MWP right side [bar] Pe
- 17 bar
- MWP right side [psig] Pe
- 245 psig
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Regulation left side [bar]Pe [max]
- 12 bar
- Regulation left side [bar]Pe [min]
- 2 bar
- Regulation left side [psig]Pe [max]
- 174 psig
- Regulation left side [psig]Pe [min]
- 29 psig
- Regulation right side [bar]Pe [max]
- 6 bar
- Regulation right side [bar]Pe [min]
- 0.5 bar
- Regulation right side [psig]Pe [max]
- 87 psig
- Regulation right side [psig]Pe [min]
- 7 psig
- Reset function, left side
- Auto
- Reset function, right side
- Auto
- UL approval file name
- E31024
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure elements
- Thread Standard
- ISO 228-1 (2 × 1/4" G male)
- Pressure Rating
- Permissible operating pressure 17 bar each side; max test 25 bar (left) / 19 bar (right)
- IP Rating
- IP22
- HS Code
- 9026.20
Compatibility & Fitment
Dual-pressure switch combining a control side and a safety limiter side. Verify set points and differentials for both sides before ordering.
