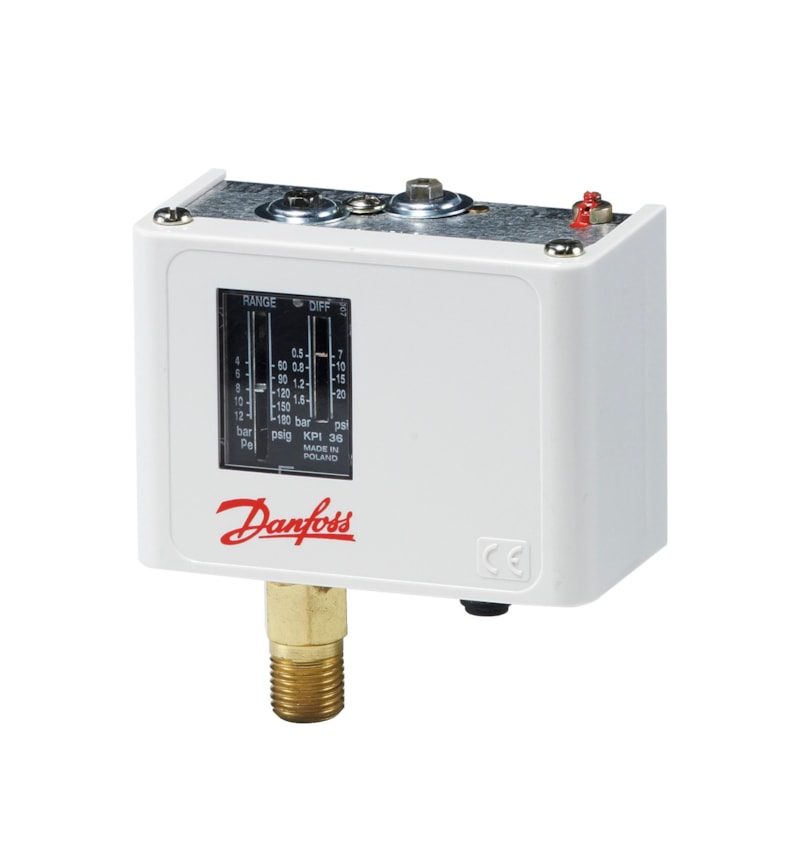

Danfoss KPI36 pressure switch, 4–12 bar, gold contacts, auto reset, SPDT, G 1/4
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KPI36 single-pressure switch (code 060-113866) with automatic reset and gold-plated contacts for low-load signal switching. Regulating range 4–12 bar, differential 0.5–1.6 bar, SPDT snap-action contact, bellows sensing element. G 1/4 male connection per ISO 228-1, IP30 enclosure, ambient -40 to +65 °C. Max working pressure 18 bar. For pressure monitoring and limiting of non-aggressive liquids and gases.
Technical Specifications
- Type
- KPI36 single-pressure switch, auto reset
- Code number
- 060-113866
- EAN
- 5702423146673
- Regulating range
- 4–12 bar (58–174 psig)
- Differential
- 0.5–1.6 bar (7–23 psi)
- Max working pressure (PB)
- 18 bar (261 psig)
- Reset
- automatic
- Contact system
- SPDT (single-pole double-throw)
- Contact material
- gold-plated
- Contact load
- AC-15 4 A/440 V; AC-1 10 A/440 V (gold-plated, suited to low-load signal circuits)
- Connection
- G 1/4 male (ISO 228-1)
- Sensing element
- bellows
- Enclosure
- IP30
- Ambient temperature
- -40 to +65 °C (80 °C max 120 min)
- Net weight
- 0.309 kg
- Gross weight
- 0.344 kg
- Packing format
- multi-pack 36 pc
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CCC
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Contact function
- SPDT gold
- Contact rating
- AC15=4 A, 440 V
- Differential [bar] [max]
- 1.6 bar
- Differential [bar] [min]
- 0.5 bar
- Differential [psi] [max]
- 23 psi
- Differential [psi] [min]
- 7 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EPD available
- Yes
- EU RoHS compliance
- Out of scope
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 18 bar
- Max. test pressure [psig]
- 261 psig
- Max. Working Pressure [bar]
- 18 bar
- Max. Working Pressure [psig]
- 261 psig
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Regulation range [bar] Pe [max]
- 12 bar
- Regulation range [bar] Pe [min]
- 4 bar
- Regulation range [psig] Pe [max]
- 174 psig
- Regulation range [psig] Pe [min]
- 58 psig
- Reset function
- Auto
- UL approval file name
- E31024
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- ISO 228-1 (G 1/4 male)
- Pressure Rating
- Max working pressure 18 bar (261 psig)
- Temperature Range
- -40 to +65 °C (80 °C max 120 min)
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
Single-pressure switch for pressure monitoring / limiting of non-aggressive media. SPDT contact, automatic reset. Verify set point and differential before ordering.
