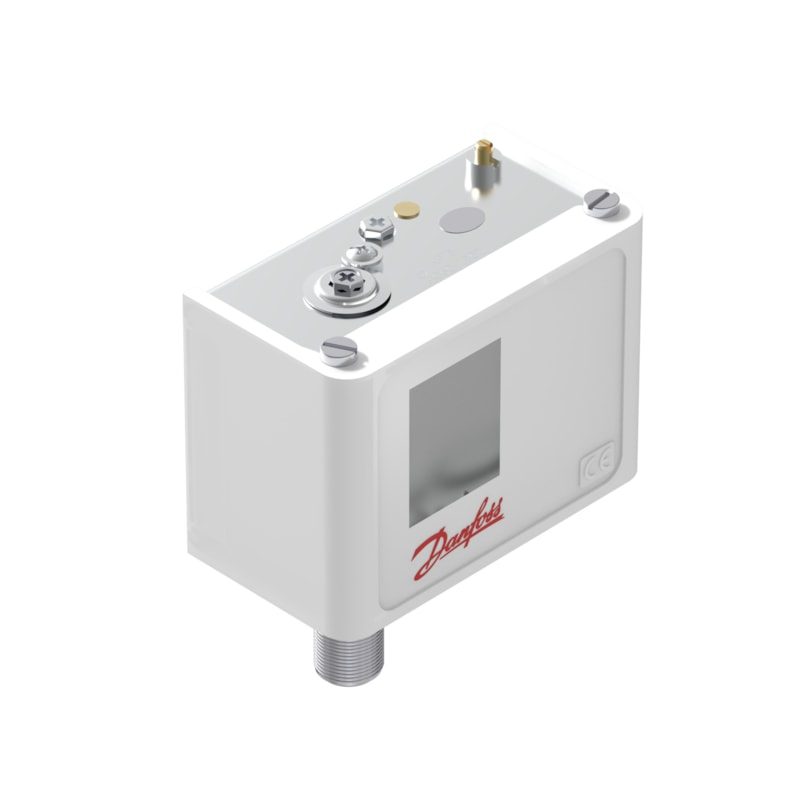

Danfoss KPI35 pressure switch, -0.2–8 bar, auto reset, SPDT, G 1/4
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KPI35 single-pressure switch (code 060-121766) with automatic reset. Regulating range -0.2–8 bar, differential 0.4–1.5 bar, SPDT snap-action contact, bellows sensing element. G 1/4 male connection per ISO 228-1, IP30 enclosure with rubber cable gland (6–14 mm), ambient -40 to +65 °C. Max working pressure 18 bar. For pressure monitoring of non-aggressive liquids and gases.
Technical Specifications
- Type
- KPI35 single-pressure switch, auto reset
- Code number
- 060-121766
- EAN
- 5702423146727
- Regulating range
- -0.2–8 bar (6 inHg–116 psig)
- Differential
- 0.4–1.5 bar (6–22 psi)
- Max working pressure (PB)
- 18 bar (261 psig)
- Reset
- automatic
- Contact system
- SPDT (single-pole double-throw)
- Connection
- G 1/4 male (ISO 228-1)
- Sensing element
- bellows
- Electrical entry
- rubber cable gland (6–14 mm)
- Enclosure
- IP30
- Ambient temperature
- -40 to +65 °C (80 °C max 120 min)
- Net weight
- 0.313 kg
- Gross weight
- 0.346 kg
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CCC
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Contact function
- SPDT
- Contact rating
- AC15=4 A, 440 V
- Differential [bar] [max]
- 1.5 bar
- Differential [bar] [min]
- 0.4 bar
- Differential [psi] [max]
- 22 psi
- Differential [psi] [min]
- 6 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EPD available
- Yes
- EU RoHS compliance
- Out of scope
- Identical product
- 060-113066
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 18 bar
- Max. test pressure [psig]
- 261 psig
- Max. Working Pressure [bar]
- 18 bar
- Max. Working Pressure [psig]
- 261 psig
- Other RoHS documentation
- Saudi Arabia RoHS
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Regulation range
- 6 inHg - 116 psig
- Regulation range [bar] Pe [max]
- 8 bar
- Regulation range [bar] Pe [min]
- -0.2 bar
- Reset function
- Auto
- UL approval file name
- E31024
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- ISO 228-1 (G 1/4 male)
- Pressure Rating
- Max working pressure 18 bar (261 psig)
- Temperature Range
- -40 to +65 °C (80 °C max 120 min)
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
Single-pressure switch for pressure monitoring of non-aggressive media. SPDT contact, automatic reset, rubber cable gland. Distinct from the gold-contact 060-316466 (this version has standard contacts and a different EAN). Verify set point and differential before ordering.
