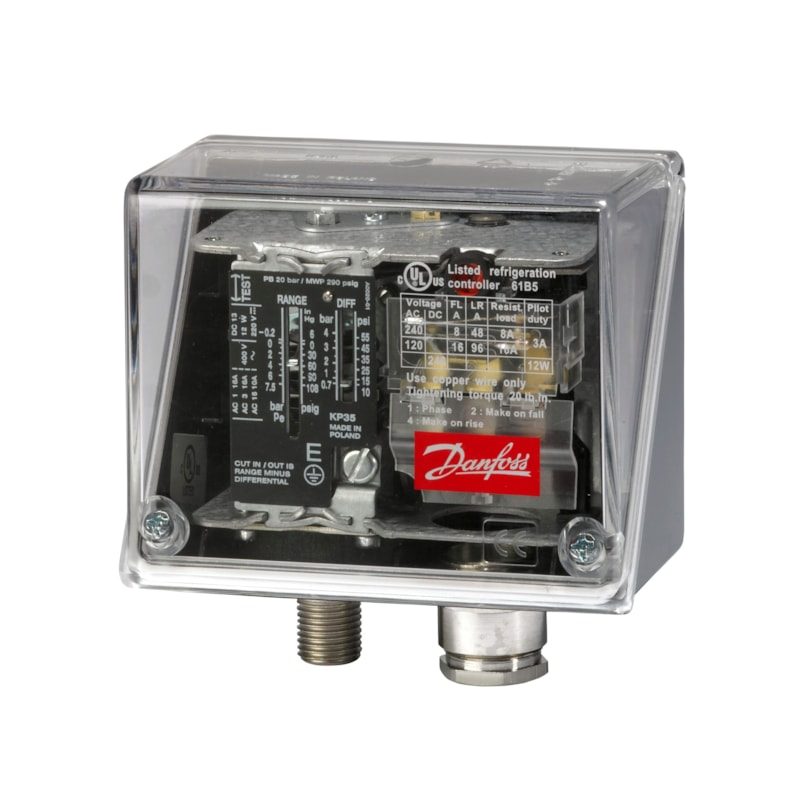

Danfoss KPI35 pressure switch, -0.2–8 bar, IP55, auto reset, SPDT, G 1/4
Danfoss · Sensors & Instrumentation · Pressure Switches
Danfoss KPI35 single-pressure switch (code 060-315766) with automatic reset in an IP55 enclosure with screwed cable entry. Regulating range -0.2–8 bar, differential 0.4–1.5 bar, SPDT snap-action contact, bellows sensing element. G 1/4 male connection per ISO 228-1, ambient -40 to +65 °C. Max working pressure 18 bar. For pressure monitoring of non-aggressive liquids and gases in wash-down or wet environments.
Specifications
- Part number
- 060-315766
- HS code
- 9026.20
- Material
- Steel/zinc-plated housing; bellows pressure element
- Pressure rating
- Max working pressure 18 bar (261 psig)
- Temperature range
- -40 to +65 °C (80 °C max 120 min)
- IP rating
- IP55
- Thread standard
- ISO 228-1 (G 1/4 male)
Compatibility
Single-pressure switch for pressure monitoring of non-aggressive media in wet/wash-down areas. SPDT contact, automatic reset, IP55 enclosure with screwed Pg 13.5 cable entry. The IP55 housing and heavier weight distinguish this from the IP30 060-121766. Verify set point and differential before ordering.
Standards
- ISO 228-1 (G 1/4 connection)
- IEC 60529 (IP55)
- DIN 40430 (Pg 13.5 entry)
- EU RoHS
Approvals
- CE
- CCC
- CMIM
- EAC
- LVD
- RINA
- UL 873
- China RoHS
- EU RoHS
