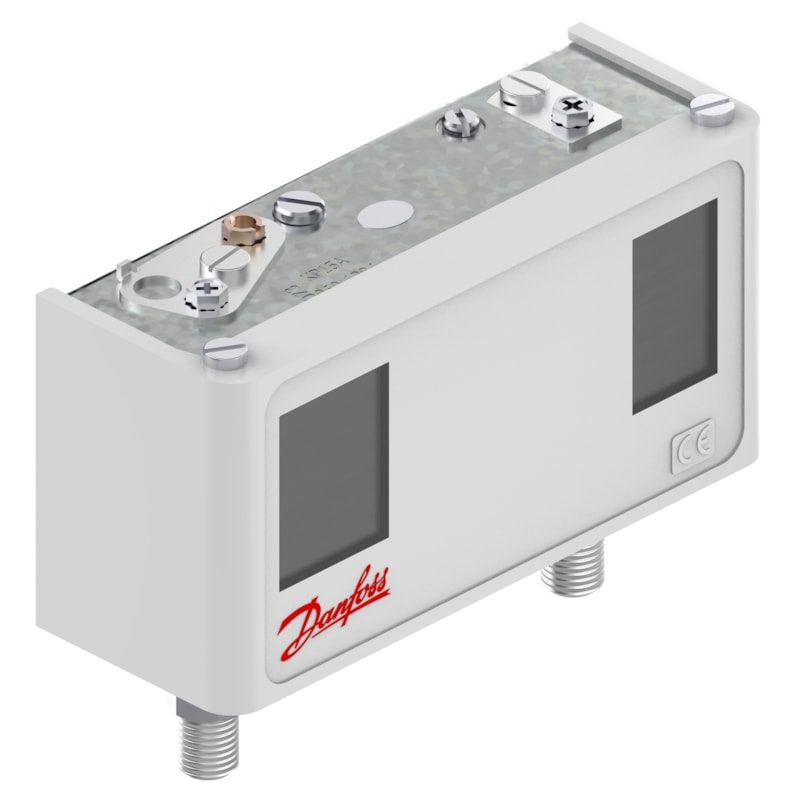

Danfoss KP15A dual pressure switch, LP -0.2 to 7.5 bar / HP 8 to 32 bar, automatic reset both sides, SPDT+SPST(NO), M10 x 0.75 male, IP30
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP15A combined low- and high-pressure switch, code 060-129566. Low-pressure side -0.2 to 7.5 bar (differential 0.7 to 4 bar); high-pressure side 8 to 32 bar (differential 4 bar). Automatic reset on both sides. SPDT+SPST(NO) contact system. M10 x 0.75 male threaded connection (ISO 261), IP30 enclosure. Combined LP/HP control and protection in refrigeration and air-conditioning. Double-bellows pressure element.
Technical Specifications
- Type
- KP15A dual (low + high) pressure switch
- Code number
- 060-129566
- LP regulating range
- -0.2 to 7.5 bar (differential 0.7 to 4 bar)
- HP regulating range
- 8 to 32 bar (differential 4 bar)
- Reset
- automatic both sides
- Contact system
- SPDT+SPST(NO)
- Connection
- M10 x 0.75 male (ISO 261)
- Max working pressure
- LP 17 bar / HP 35 bar
- Enclosure
- IP30 / NEMA 1
- Ambient temperature
- -40 to +65 °C
- Net weight
- 0.435 kg (gross 0.48 kg)
- EAN
- 5702428016162
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Application note
- Not applicable for liquid line
- Approval
- BV
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT+SPST(NO)
- Contact rating
- AC15=10 A, 400 V
- Differential left side [bar] [max]
- 4 bar
- Differential left side [bar] [min]
- 0.7 bar
- Differential left side [psi] [max]
- 58 psi
- Differential left side [psi] [min]
- 10 psi
- Differential right side [bar]
- 4 bar
- Differential right side [psi]
- 58 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Lubricants compatibility
- Oilfree applications
- Max.test press.left side[bar]
- 20 bar
- Max.test press.right side[bar]
- 35 bar
- MWP left side [bar] Pe
- 17 bar
- MWP left side [psig] Pe
- 245 psig
- MWP right side [bar] Pe
- 35 bar
- MWP right side [psig] Pe
- 510 psig
- Oil free refrigerants
- R134a
- Pressure connection size
- 10 x 0.75
- Pressure connection standard
- ISO 261
- Pressure connection type
- M
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R113
- Regulation left side [bar]Pe [max]
- 7.5 bar
- Regulation left side [bar]Pe [min]
- -0.2 bar
- Regulation left side range Pe
- 6 inHg - 108 psig
- Regulation right side [bar]Pe [max]
- 32 bar
- Regulation right side [bar]Pe [min]
- 8 bar
- Regulation right side [psig]Pe [max]
- 464 psig
- Regulation right side [psig]Pe [min]
- 116 psig
- Reset function, left side
- Auto
- Reset function, right side
- Auto
- UL approval file name
- E31024
- UL approved refrigerants
- R113
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; double-bellows pressure element
- Thread Standard
- M10 x 0.75 male (ISO 261) connection
- Pressure Rating
- max working pressure LP 17 bar / HP 35 bar
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
Refrigeration/AC combined low- and high-pressure control with automatic reset on both sides. Distinguished from the IP44 KP15A both-automatic (060-129366) by its IP30 enclosure, and from 060-129666 by its automatic (not manual-maximum) high-pressure reset. Verify ranges, differentials, reset and connection before ordering.
