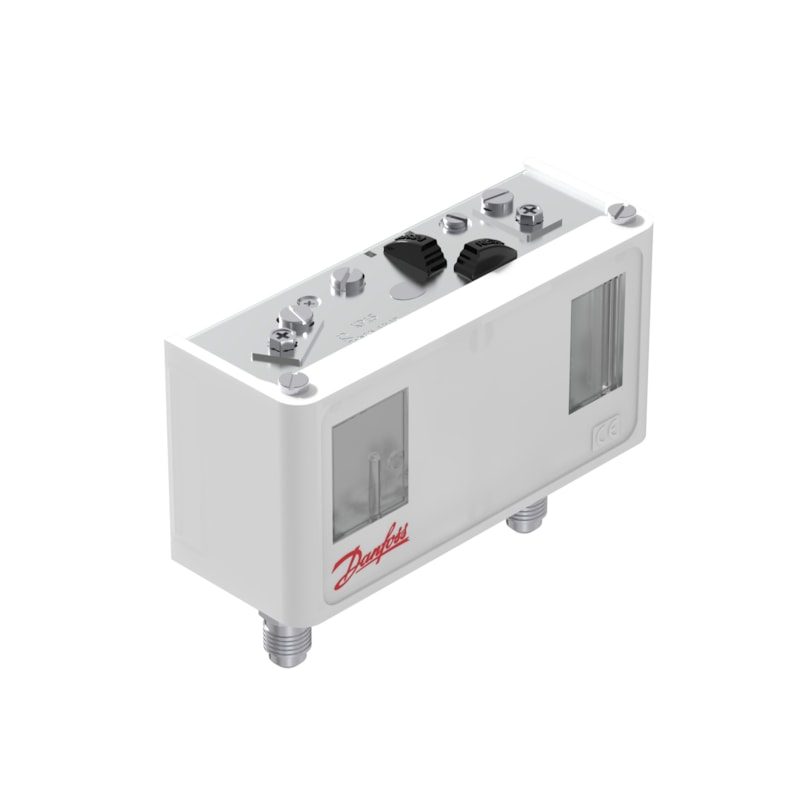

Danfoss KP15 dual pressure switch, LP -0.9 to 7 bar / HP 8 to 32 bar, manual min / manual max reset, SPDT, 1/4 in flare

Danfoss KP15 combined low- and high-pressure switch, code 060-124566. Low-pressure side -0.9 to 7 bar (differential 0.7 bar, manual minimum reset); high-pressure side 8 to 32 bar (differential 4 bar, manual maximum reset). SPDT contact system. 1/4 in flare connection (male), DIN 8906, IP30 enclosure. Combined LP/HP control and protection in refrigeration and air-conditioning. Double-bellows pressure element.

Type

KP15 dual (low + high) pressure switch Code number: 060-124566 LP regulating range: -0.9 to 7 bar (differential 0.7 bar) HP regulating range: 8 to 32 bar (differential 4 bar) Reset: LP manual minimum / HP manual maximum Contact system: SPDT Connection: 1/4 in flare (male), DIN 8906 Max working pressure: LP 17 bar / HP 35 bar Enclosure: IP30 / NEMA 1 Ambient temperature: -40 to +65 °C Net weight: 0.443 kg (gross 0.488 kg) EAN: 5702428014762 Product group: Switches and thermostats Amb. Temp. Note: 80 °C/176 °F for max 120 min Ambient temperature range [°C] [max]: 65 °C Ambient temperature range [°C] [min]: -40 °C Ambient temperature range [°F] [max]: 149 °F Ambient temperature range [°F] [min]: -40 °F Application note: Not applicable for liquid line Approval: BV CE mark: Yes China RoHS compliance: Yes Contact function: SPDT Contact rating: AC15=10 A, 400 V Differential left side [bar]: 0.7 bar Differential left side [psi]: 10 psi Differential right side [bar]: 4 bar Differential right side [psi]: 58 psi EEE category: 5 small equipment (any external dimension < 50 cm) Electrical connection: Rubber cable gland Electrical connection size: 6-14 mm EN 60947 electrical properties: Insulation: 400V EN 60947 wiring properties: Flex, ferrules: 0.5-1.5 mm2 Enclosure rating IP: IP30 Enclosure rating Nema (~): 1 EU RoHS compliance: Yes In scope of WEEE: Yes Lubricants compatibility: Oilfree applications Max.test press.left side[bar]: 20 bar Max.test press.right side[bar]: 35 bar MWP left side [bar] Pe: 17 bar MWP left side [psig] Pe: 245 psig MWP right side [bar] Pe: 35 bar MWP right side [psig] Pe: 510 psig Oil free refrigerants: R134a Other RoHS documentation: Saudi Arabia RoHS Pressure connection size: 1/4 Pressure connection standard: DIN 8906 Pressure connection type: Flare Pressure Male/Female: Male Pressure sensing element: Bellows REACH Candidate List substances: Lead (CAS no. 7439-92-1) Refrigerants: R113 Regulation left side [bar]Pe [max]: 7 bar Regulation left side [bar]Pe [min]: -0.9 bar Regulation left side range Pe: 27 inHg - 101 psig Regulation right side [bar]Pe [max]: 32 bar Regulation right side [bar]Pe [min]: 8 bar Regulation right side [psig]Pe [max]: 464 psig Regulation right side [psig]Pe [min]: 116 psig Reset function, left side: Manual Min Reset function, right side: Manual Max UL approval file name: E31024 UL approved refrigerants: R113 UL mark: Yes

Material

Steel/zinc-plated housing; double-bellows pressure element

Thread Standard

1/4 in flare (male) connection, DIN 8906

Pressure Rating

max working pressure LP 17 bar / HP 35 bar

Temperature Range

-40 to +65 °C

IP Rating

IP30

HS Code

9026.20
