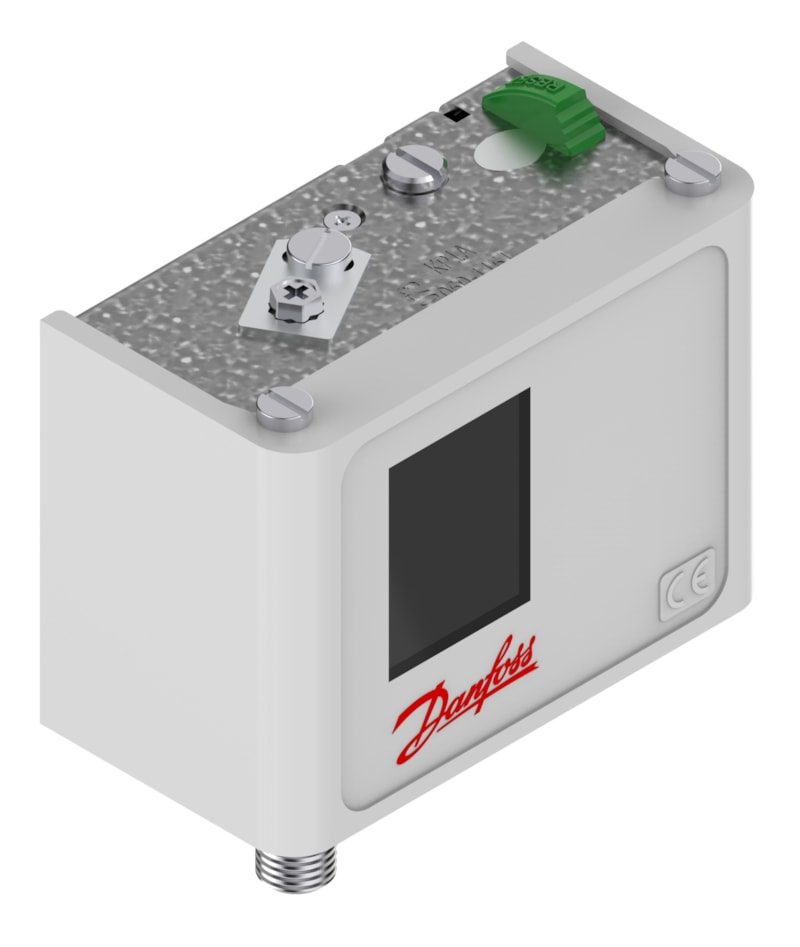

Danfoss KP1A pressure switch, -0.9 to 7 bar, 0.7 bar differential, manual minimum reset, SPDT, M10X0.75

Danfoss KP1A single (low) pressure switch, code 060-116166. Regulating range -0.9 to 7 bar, 0.7 bar fixed differential, manual (minimum) reset, SPDT snap-action contact. M10 x 0.75 (ISO 261) male connection, IP30 enclosure. Used as a manual-reset low-pressure cut-out in refrigeration and air-conditioning. Bellows pressure element.

Type

KP1A single pressure switch Code number: 060-116166 Regulating range: -0.9 to 7 bar (27 inHg to 101 psig) Differential: 0.7 bar fixed (10 psi) Reset: manual (minimum) Contact system: SPDT (single-pole double-throw) Connection: M10 x 0.75 (male), ISO 261 Max working pressure: 17 bar (245 psig) Enclosure: IP30 Ambient temperature: -25 to +65 °C (80 °C max 120 min) Net weight: 0.419 kg (gross 0.458 kg) EAN: 5702428015974 Product group: Switches and thermostats Amb. Temp. Note: 80 °C/176 °F for max 120 min Ambient temperature range [°C] [max]: 65 °C Ambient temperature range [°C] [min]: -25 °C Ambient temperature range [°F] [max]: 149 °F Ambient temperature range [°F] [min]: -13 °F Application note: Not applicable for liquid line Approval: BV CE mark: Yes China RoHS compliance: Yes Contact function: SPDT Contact rating: AC15=10 A, 400 V Differential [bar]: 0.7 bar Differential [psi]: 10 psi EEE category: 5 small equipment (any external dimension < 50 cm) Electrical connection: Rubber cable gland Electrical connection size: 6-14 mm EN 60947 electrical properties: Insulation: 400V EN 60947 wiring properties: Flex, ferrules: 0.5-1.5 mm2 Enclosure rating IP: IP30 Enclosure rating Nema (~): 1 EU RoHS compliance: Yes Fluid Group: 1 In scope of WEEE: Yes Lubricants compatibility: Oilfree applications Max. test pressure [bar] Pe: 20 bar Max. test pressure [psig]: 290 psig Max. Working Pressure [bar]: 17 bar Max. Working Pressure [psig]: 245 psig Oil free refrigerants: R134a PED category: IV Pressure connection size: 10 x 0.75 Pressure connection standard: ISO 261 Pressure connection type: M Pressure Male/Female: Male Pressure sensing element: Bellows REACH Candidate List substances: Lead (CAS no. 7439-92-1) Refrigerants: R113 Regulation range: 27 inHg - 101 psig Regulation range [bar] Pe [max]: 7 bar Regulation range [bar] Pe [min]: -0.9 bar Reset function: Manual Min UL approval file name: E31024 UL approved refrigerants: R113 UL mark: Yes

Material

Steel/zinc-plated housing; bellows pressure element

Thread Standard

M10 x 0.75 (male) connection, ISO 261

Pressure Rating

max working pressure 17 bar

Temperature Range

-25 to +65 °C (80 °C max 120 min)

IP Rating

IP30

HS Code

9026.20
