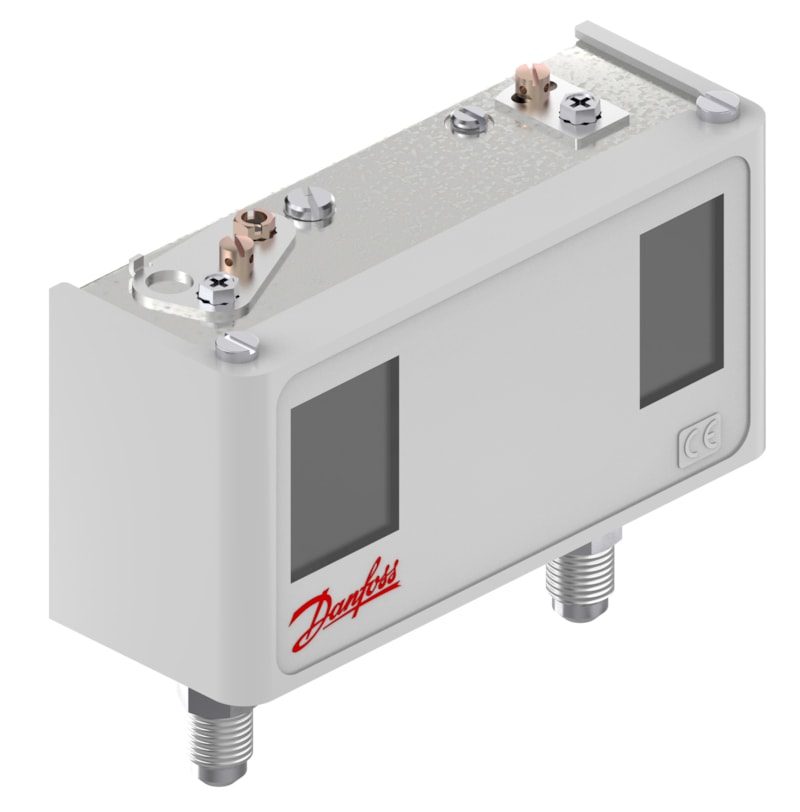

Danfoss KP17W dual pressure switch, LP -0.2 to 7.5 bar / HP 8 to 32 bar, auto reset, SPDT, 1/4 in flare
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP17W dual (low+high) pressure switch, code 060-126766. Low-pressure side -0.2 to 7.5 bar (0.7 to 4 bar differential) and high-pressure side 8 to 32 bar (4 bar differential), both automatic reset, with a wide-differential SPDT contact. 1/4 in flare (male, DIN 8906) connection, IP44 enclosure. Used for combined low/high pressure control and condenser-fan cycling in refrigeration and air-conditioning. Bellows pressure element.
Technical Specifications
- Type
- KP17W dual pressure switch
- Code number
- 060-126766
- Regulating range (LP)
- -0.2 to 7.5 bar
- Differential (LP)
- 0.7 to 4 bar
- Regulating range (HP)
- 8 to 32 bar
- Differential (HP)
- 4 bar
- Reset
- automatic (both sides)
- Contact system
- SPDT (single-pole double-throw)
- Connection
- 1/4 in flare (male), DIN 8906
- Max working pressure
- LP 17 bar / HP 32 bar
- Enclosure
- IP44
- Ambient temperature
- -25 to +65 °C (80 °C max 120 min)
- Net weight
- 0.471 kg (gross 0.524 kg)
- EAN
- 5702428012058
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -25 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -13 °F
- Application note
- Not applicable for liquid line
- Approval
- BV
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V
- Differential left side [bar] [max]
- 4 bar
- Differential left side [bar] [min]
- 0.7 bar
- Differential left side [psi] [max]
- 58 psi
- Differential left side [psi] [min]
- 10 psi
- Differential right side [bar]
- 4 bar
- Differential right side [psi]
- 58 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP44
- Enclosure rating Nema (~)
- 2
- EU RoHS compliance
- Yes
- Fluid Group
- 1
- Identical product
- 060-535666
- In scope of WEEE
- Yes
- Lubricants compatibility
- Oilfree applications
- Max.test press.left side[bar]
- 20 bar
- Max.test press.right side[bar]
- 35 bar
- MWP left side [bar] Pe
- 17 bar
- MWP left side [psig] Pe
- 245 psig
- MWP right side [bar] Pe
- 32 bar
- MWP right side [psig] Pe
- 464 psig
- Oil free refrigerants
- R134a
- Other RoHS documentation
- Saudi Arabia RoHS
- PED category
- IV
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 8906
- Pressure connection type
- Flare
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R113
- Regulation left side [bar]Pe [max]
- 7.5 bar
- Regulation left side [bar]Pe [min]
- -0.2 bar
- Regulation left side range Pe
- 6 inHg - 108 psig
- Regulation right side [bar]Pe [max]
- 32 bar
- Regulation right side [bar]Pe [min]
- 8 bar
- Regulation right side [psig]Pe [max]
- 464 psig
- Regulation right side [psig]Pe [min]
- 116 psig
- Reset function, left side
- Auto
- Reset function, right side
- Auto
- UL approval file name
- E31024
- UL approved refrigerants
- R113
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; double bellows pressure element
- Thread Standard
- 1/4 in flare (male) connection, DIN 8906
- Pressure Rating
- max working pressure LP 17 bar / HP 32 bar
- Temperature Range
- -25 to +65 °C (80 °C max 120 min)
- IP Rating
- IP44
- HS Code
- 9026.20
Compatibility & Fitment
Combined low/high pressure control and condenser-fan cycling in refrigeration/AC. KP17W dual switch — distinct from the single KP7W (060-119066/060-120366) and from the KP15 dual family. Verify LP/HP ranges and connection before ordering.
