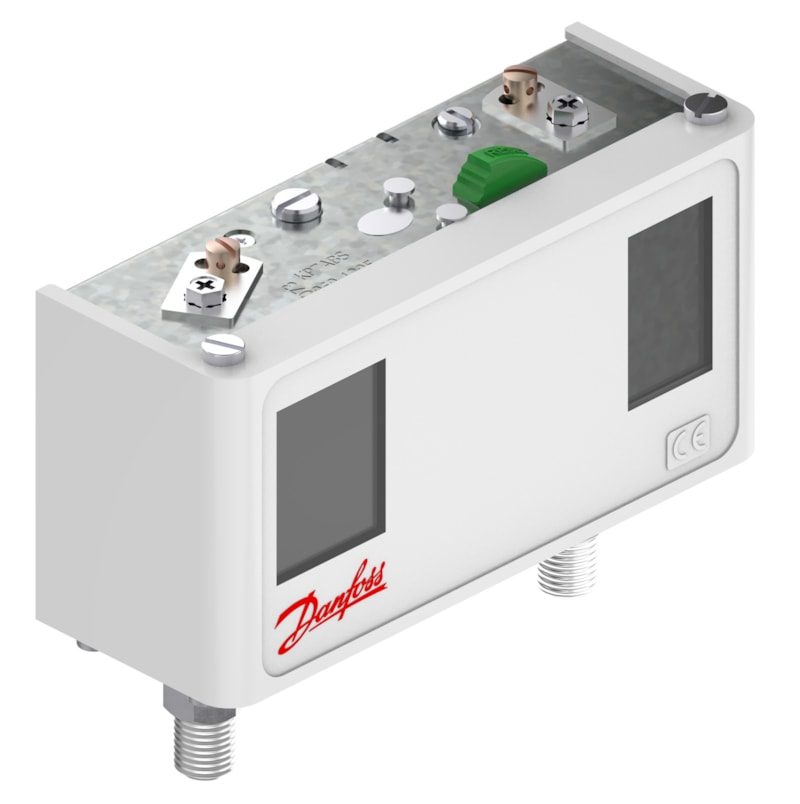

Danfoss KP7ABS dual high-pressure safety switch, 8 to 32 bar, 4 bar differential, manual reset, 2X SPST(NC), M10X0.75
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP7ABS dual high-pressure safety switch, code 060-120566. Two independent high-pressure circuits, each 8 to 32 bar with 4 bar fixed differential and manual (maximum) reset, giving two separate SPST normally-closed contacts. M10 x 0.75 (ISO 261) male connection, IP30 enclosure. Used as a fail-safe high-pressure limiter in refrigeration and air-conditioning. Bellows pressure element.
Technical Specifications
- Type
- KP7ABS dual high-pressure safety switch
- Code number
- 060-120566
- Regulating range (each side)
- 8 to 32 bar (116 to 464 psig)
- Differential (each side)
- 4 bar fixed (58 psi)
- Reset
- manual (maximum), both sides
- Contact system
- 2 x SPST (NC)
- Connection
- M10 x 0.75 (male), ISO 261
- Max working pressure
- 35 bar (510 psig), both sides
- Enclosure
- IP30
- Ambient temperature
- -25 to +65 °C (80 °C max 120 min)
- Net weight
- 0.735 kg (gross 0.786 kg)
- EAN
- 5702428517102
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -25 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -13 °F
- Application note
- Not applicable for liquid line
- Approval
- CCC
- Burst pressure [bar]
- 140 bar
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- 2 SPST(NC)
- Contact rating
- AC15=10 A, 400 V
- Differential left side [bar]
- 4 bar
- Differential left side [psi]
- 58 psi
- Differential right side [bar]
- 4 bar
- Differential right side [psi]
- 58 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- Fluid Group
- 1
- In scope of WEEE
- Yes
- Lubricants compatibility
- Oilfree applications
- Max.test press.left side[bar]
- 35 bar
- Max.test press.right side[bar]
- 35 bar
- MWP left side [bar] Pe
- 35 bar
- MWP left side [psig] Pe
- 510 psig
- MWP right side [bar] Pe
- 35 bar
- MWP right side [psig] Pe
- 510 psig
- Oil free refrigerants
- R134a
- Other RoHS documentation
- Saudi Arabia RoHS
- PED category
- IV
- Pressure connection size
- 10 x 0.75
- Pressure connection standard
- ISO 261
- Pressure connection type
- M
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R113
- Regulation left side [bar]Pe [max]
- 32 bar
- Regulation left side [bar]Pe [min]
- 8 bar
- Regulation left side [psig]Pe [max]
- 464 psig
- Regulation left side [psig]Pe [min]
- 116 psig
- Regulation right side [bar]Pe [max]
- 32 bar
- Regulation right side [bar]Pe [min]
- 8 bar
- Regulation right side [psig]Pe [max]
- 464 psig
- Regulation right side [psig]Pe [min]
- 116 psig
- Reset function, left side
- Manual Max
- Reset function, right side
- Manual Max
- UL approval file name
- E31024
- UL approved refrigerants
- R113
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; double bellows pressure element
- Thread Standard
- M10 x 0.75 (male) connection, ISO 261
- Pressure Rating
- max working pressure 35 bar (each side)
- Temperature Range
- -25 to +65 °C (80 °C max 120 min)
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
Fail-safe high-pressure limiting in refrigeration/AC where two independent HP cut-outs are required. Distinct from the single-contact KP7BS dual safety (060-120066) — two separate SPST(NC) contacts. Verify range, reset and connection before ordering.
