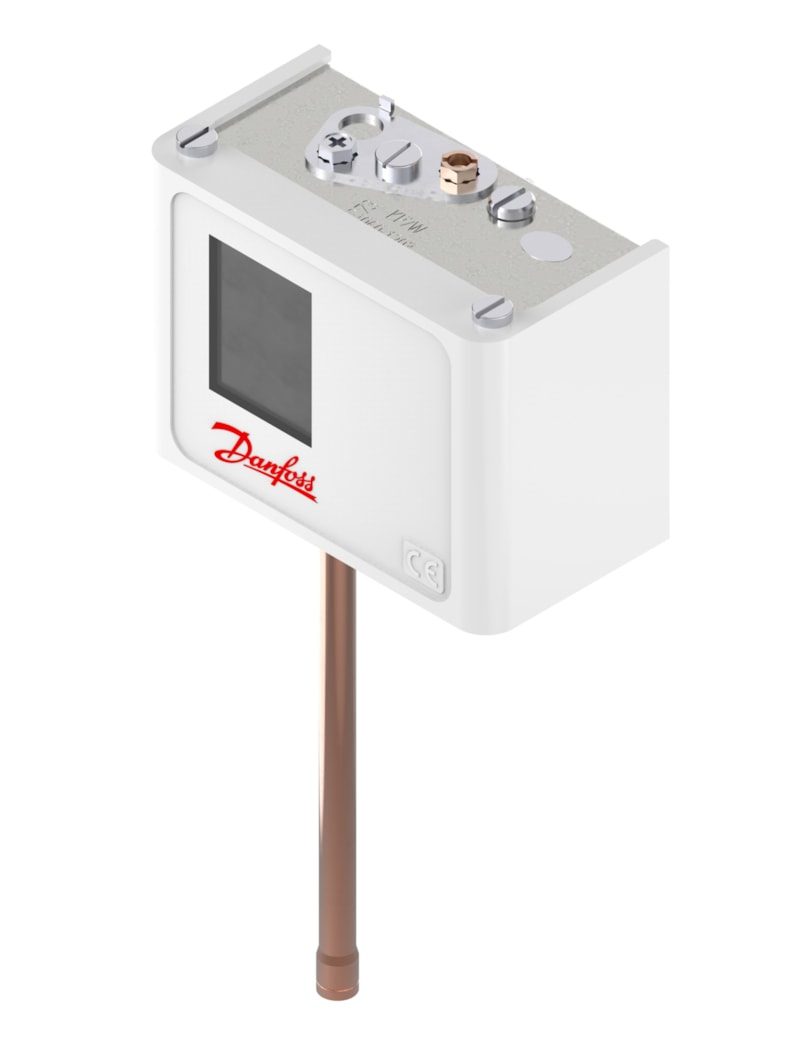

Danfoss KP7W pressure switch, 8 to 32 bar, 4-10 bar differential, auto reset, SPDT, 6 mm solder ODF
Danfoss · Sensors & Instrumentation · Pressure Switches
Danfoss KP7W single (high) pressure switch, code 060-120366. Regulating range 8 to 32 bar, wide differential range 4 to 10 bar, automatic reset, SPDT snap-action contact. 6 mm solder ODF (female) connection, IP44 enclosure. Used for high-pressure-controlled condenser-fan cycling and HP protection in refrigeration and air-conditioning. Bellows pressure element.
Specifications
- Part number
- 060-120366
- HS code
- 9026.20
- Material
- Steel/zinc-plated housing; bellows pressure element
- Pressure rating
- max working pressure 35 bar
- Temperature range
- -25 to +65 °C (80 °C max 120 min)
- IP rating
- IP44
- Thread standard
- 6 mm solder ODF (female) connection, EN 1254-1
Compatibility
Refrigeration/AC condenser-fan cycling and high-pressure control; wide 4-10 bar differential, automatic reset. Solder ODF version of the flare-connection KP7W (060-119066) — connection type differs. Verify range, differential and connection before ordering.
Standards
- IEC 60529 (enclosure IP rating)
- EU RoHS
Approvals
- CE
- UL 873
- BV
- DNV
- GL
- LR
- RINA
- RMRS
- CCC
- CMIM
- EAC
- LVD
- PED
- China RoHS
- EU RoHS
