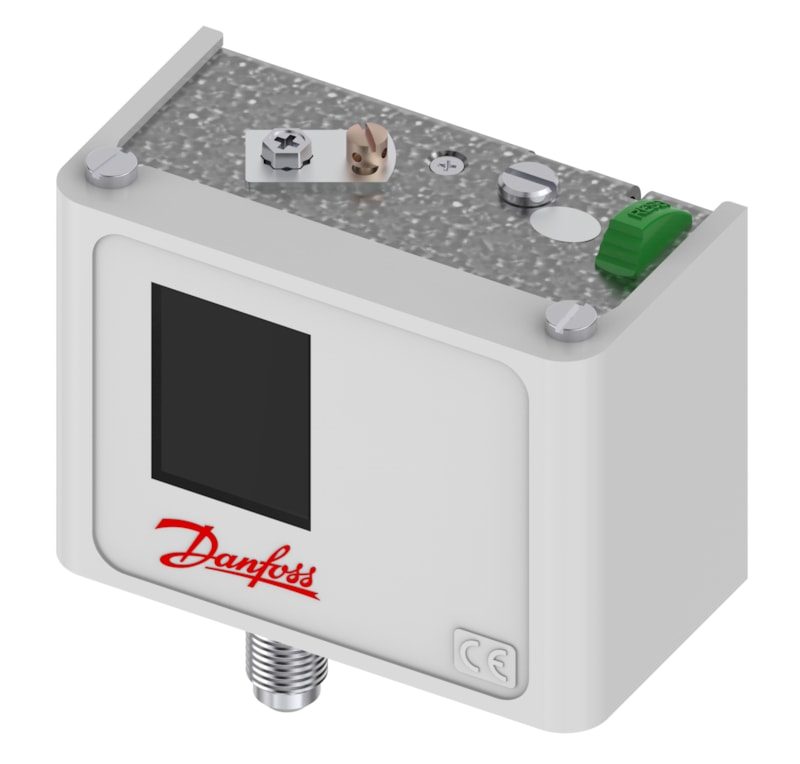

Danfoss KP5 pressure switch, 8 to 32 bar, manual reset, SPDT, 1/4 in flare
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP5 high-pressure switch, code 060-117366. Regulating range 8 to 32 bar, fixed differential 3 bar, manual reset, single SPDT contact. 1/4 in flare (male, DIN 8906) connection, IP30 enclosure. High-pressure cut-out for refrigeration and air-conditioning systems; bellows sensing element. Not for liquid line.
Technical Specifications
- Type
- KP5 high-pressure switch
- Code number
- 060-117366
- Regulating range
- 8 to 32 bar (116 to 464 psig)
- Differential
- 3 bar (fixed)
- Reset
- manual
- Contact system
- SPDT
- Connection
- 1/4 in flare (male), DIN 8906
- Max working pressure
- 35 bar (510 psig)
- Enclosure
- IP30
- Sensing element
- bellows
- Ambient temperature
- -50 to +100 °C
- Net weight
- 0.294 kg (gross 0.326 kg)
- EAN
- 5702422001638
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Application note
- Not applicable for liquid line
- Approval
- BV
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V
- Differential [bar]
- 3 bar
- Differential [psi]
- 43 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- Identical product
- 060-513366
- In scope of WEEE
- Yes
- Lubricants compatibility
- Oilfree applications
- Max. test pressure [bar] Pe
- 35 bar
- Max. test pressure [psig]
- 510 psig
- Max. Working Pressure [bar]
- 35 bar
- Max. Working Pressure [psig]
- 510 psig
- Oil free refrigerants
- R134a
- Other RoHS documentation
- Saudi Arabia RoHS
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 8906
- Pressure connection type
- Flare
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R113
- Regulation range [bar] Pe [max]
- 32 bar
- Regulation range [bar] Pe [min]
- 8 bar
- Regulation range [psig] Pe [max]
- 464 psig
- Regulation range [psig] Pe [min]
- 116 psig
- Reset function
- Manual Max
- UL approval file name
- E31024
- UL approved refrigerants
- R113
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- 1/4 in flare (male), DIN 8906
- Pressure Rating
- max working pressure 35 bar (510 psig)
- Temperature Range
- -50 to +100 °C (ambient)
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
Refrigeration/AC high-pressure (HP) switch, manual reset, bellows. Distinct from the auto-reset KP5 rows (060-117966 / 060-117766) by manual reset, and from KP5A manual-maximum (060-115366) by model and connection. Verify range, reset and connection before ordering.
