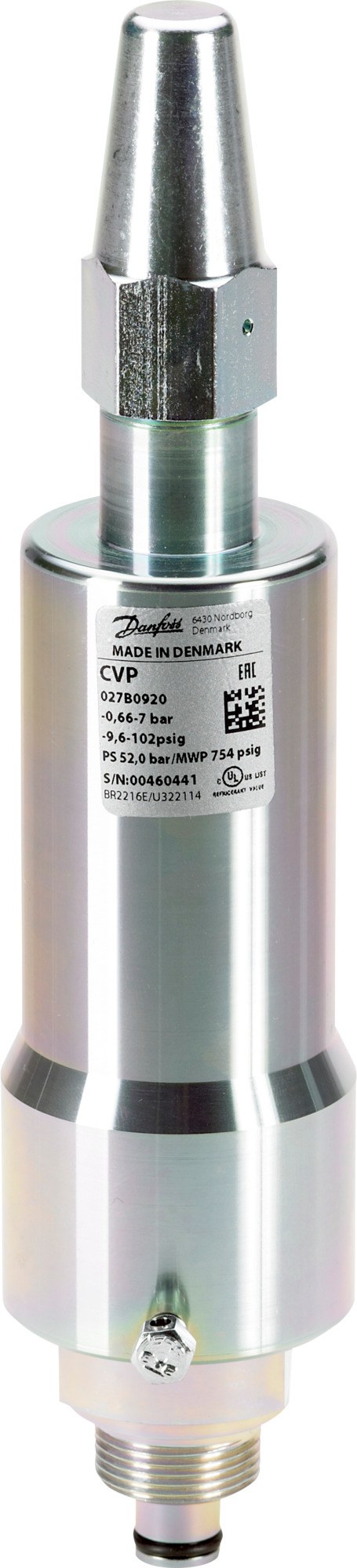

Danfoss CVP-L constant-pressure pilot valve, low pressure -0.66 to 7 bar, for ICS servo-operated main valves

Danfoss CVP-L constant-pressure pilot valve for the ICV Flexline / ICS servo-operated main-valve range, code 027B0920. Fitted in the pilot channel of an ICS main valve, the CVP throttles the pilot flow to hold a constant pressure at the main-valve inlet, independent of the downstream pressure — used for evaporating-pressure and similar constant-pressure duties in industrial refrigeration. This SKU is the low-pressure version with a regulating range of -0.66 to 7 bar (-9.6 to 102 psig). Flow coefficient Kv 0.4 m3/h (Cv 0.46). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 120 C (-76 to 248 F). Zn (TLP) surface coating; supplied as a 6-piece multipack with gasket. For HCFC, HFC, R717 (ammonia) and R744 (CO2) systems.

Type

CVP-L (constant-pressure pilot valve)

Code number

027B0920

Series

CVP / CVPP / CVC / CVE / EVM / CVH pilot valves (ICV Flexline)

Function

Constant-pressure pilot — holds constant inlet pressure

Valve version

Low pressure

Regulating range

-0.66 to 7 bar (-9.6 to 102 psig)

Kv value

0.4 m3/h

Cv value

0.46 gal/min

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 120 C (-76 to 248 F)

Surface coating

Zn (TLP)

Net weight

1.365 kg

Gross weight

1.608 kg

Packing format

Multi pack (6 pc)

Parts included

Gasket

Fluid group

1

PED category

Art. 4, par. 3

Brand

ICV Flexline

Approvals

EAC, UL

EAN

5702428973236

Material

Steel

Pressure Rating

52 bar

Temperature Range

-60 to 120 C

HS Code

8481.80
