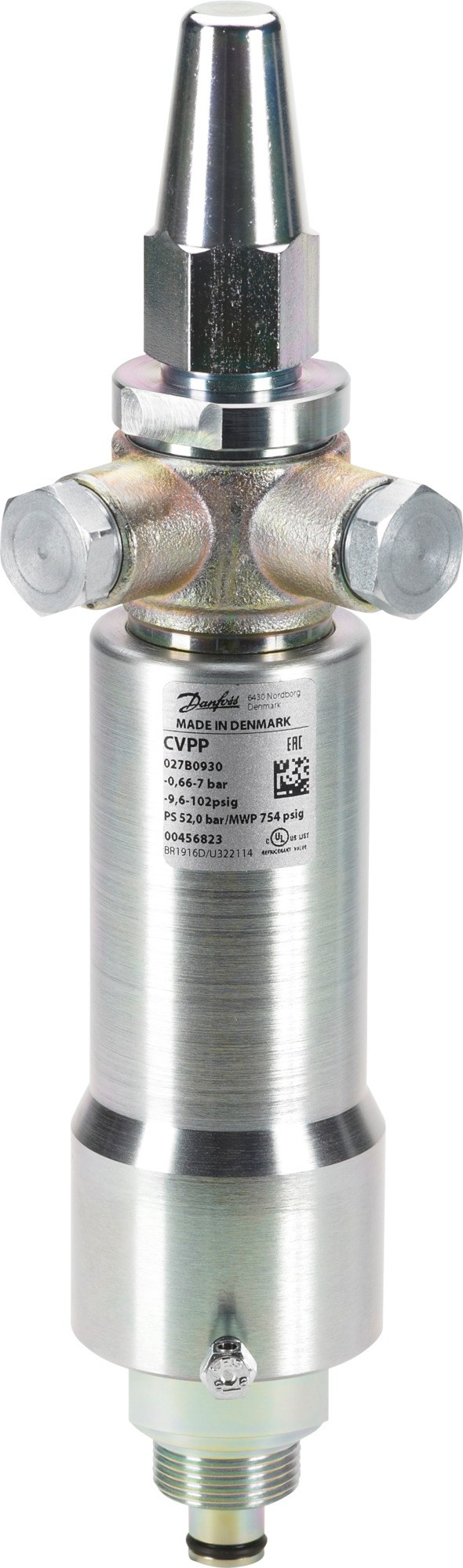

Danfoss CVPP-L differential-pressure pilot valve, low pressure -0.66 to 7 bar, for ICS servo-operated main valves

Danfoss CVPP-L differential-pressure pilot valve for the ICV Flexline / ICS servo-operated main-valve range, code 027B0930. Fitted in the pilot channel of an ICS main valve, the CVPP holds a constant differential pressure across the main valve, referenced to an external pressure connection — used where a fixed pressure drop must be maintained. This SKU is the low-pressure version with a regulating range of -0.66 to 7 bar (-9.6 to 102 psig). Flow coefficient Kv 0.4 m3/h (Cv 0.46). Maximum working pressure 65 bar (943 psig); media temperature range -60 to 120 C (-76 to 248 F). Zn (TLP) surface coating; supplied as a 6-piece multipack with adapter and gasket. For HCFC, HFC, R717 (ammonia) and R744 (CO2) systems.

Type

CVPP-L (differential-pressure pilot valve)

Code number

027B0930

Series

CVP / CVPP / CVC / CVE / EVM / CVH pilot valves (ICV Flexline)

Function

Differential-pressure pilot — holds constant differential pressure

Valve version

Low pressure

Regulating range

-0.66 to 7 bar (-9.6 to 102 psig)

Kv value

0.4 m3/h

Cv value

0.46 gal/min

Maximum working pressure

65 bar (943 psig)

Media temperature range

-60 to 120 C (-76 to 248 F)

Surface coating

Zn (TLP)

Net weight

1.74 kg

Gross weight

2.106 kg

Packing format

Multi pack (6 pc)

Parts included

Adapter, Gasket

Fluid group

1

PED category

Art. 4, par. 3

Brand

ICV Flexline

Approvals

EAC, UL

EAN

5702428557658

Material

Steel

Pressure Rating

65 bar

Temperature Range

-60 to 120 C

HS Code

8481.80
