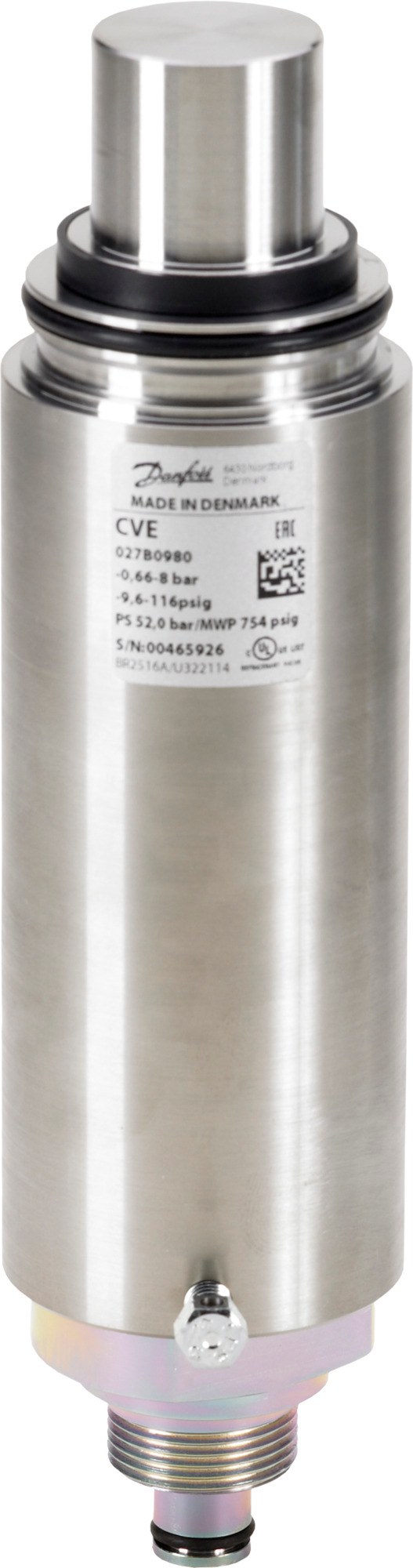

Danfoss CVE-L electronic constant-pressure pilot valve, low pressure -0.66 to 8 bar, ICAD 1200A actuated, for ICS servo-operated main valves

Danfoss CVE-L electronic constant-pressure pilot valve for the ICV Flexline / ICS servo-operated main-valve range, code 027B0980. Mounted in the pilot channel of an ICS main valve and driven by an ICAD 1200A electric actuator, the CVE holds an adjustable constant pressure at the main-valve inlet, with the setpoint set and changed electronically rather than by a mechanical spring — used where the constant-pressure reference has to be adjusted remotely or logged. This SKU is the low-pressure version with a regulating range of -0.66 to 8 bar (-9.6 to 116 psig). Flow coefficient Kv 0.4 m3/h (Cv 0.46). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 120 C (-76 to 248 F). Stainless steel surface; supplied as a 6-piece multipack with gasket. For HCFC, HFC, R717 (ammonia) and R744 (CO2) systems.

Type

CVE-L (electronic constant-pressure pilot valve)

Code number

027B0980

Series

CVP / CVPP / CVC / CVE / EVM / CVH pilot valves (ICV Flexline)

Function

Electronic constant-pressure pilot — holds constant inlet pressure, ICAD-actuated

Actuator system

ICAD 1200A

Valve version

Low pressure

Regulating range

-0.66 to 8 bar (-9.6 to 116 psig)

Kv value

0.4 m3/h

Cv value

0.46 gal/min

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 120 C (-76 to 248 F)

Surface coating

Stainless steel

Net weight

1.74 kg

Gross weight

1.908 kg

Packing format

Multi pack (6 pc)

Parts included

Gasket

Fluid group

1

PED category

Art. 4, par. 3

Brand

ICV Flexline

Approvals

EAC, UL

EAN

5715162163597

Material

Stainless steel

Pressure Rating

52 bar

Temperature Range

-60 to 120 C

HS Code

8481.80
